MULTICOMP PRO MJ13333 High-Voltage Power Transistor
The MJ13333 is a 400V Silicon NPN power transistor optimized for high-voltage, high-speed power switching in inductive circuits where rapid fall times are essential. It is ideal for line-operated switch mode applications such as switching regulators, inverters, motor controls, solenoid drivers, and deflection circuits. The transistor features a collector-emitter sustain voltage of 350 to 500V, a maximum collector-emitter saturation voltage of 1.8V at 10A, and an emitter-base voltage of 6V. Designed for industrial applications, it offers reliable performance suitable for high-demand switching tasks.
MULTICOMP PRO MJ13333 High-Voltage Power Transistor Specifications:
- Collector-Emitter Voltage: 700V
- Collector-Emitter Voltage (Vceo): 400V
- Emitter-Base Voltage: 6V
- Continuous Collector Current: 20A
- Total Device Dissipation: 175W
- Operating Temperature Range: -65°C to +200°C
- Storage Temperature Range: -65°C to +200°C
- Collector-Emitter Breakdown Voltage: 400V (minimum)
- Collector-Emitter Saturation Voltage at 20A: 0.5V
- Base-Emitter Saturation Voltage: 1.8V
- Small-Signal Output Capacitance: 125-500 pF
- Switching Delay Time: 0.1us
- Rise Time: 0.7us
- Fall Time: 0.7us

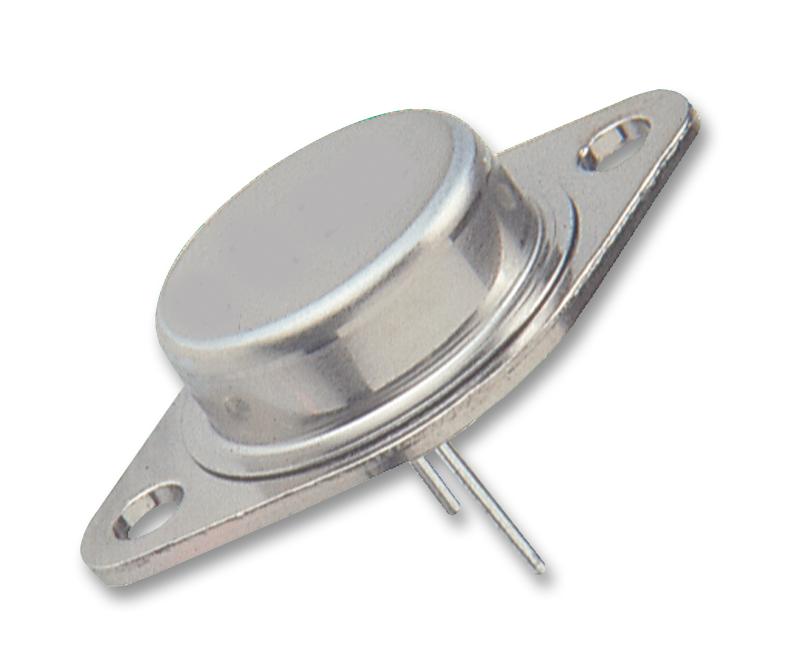

Buy the Farnell Series Multicomp Power Transistor: MJ13333
Purchase the Farnell Multicomp MJ13333 high-voltage power transistor online today and leverage its 400V operational capability for your industrial switching needs. This NPN transistor supports 20A continuous current, ensuring reliable high-speed switching in inductive circuits such as inverters, regulators, and motor controllers. With a collector-emitter breakdown voltage of 400V and a maximum dissipation of 175W, it delivers durable, efficient performance. Ideal for demanding applications, buy online now for fast delivery and dependable operation.
Buy Farnell Multicomp MJ13333 power transistor now and experience unmatched high-voltage switching performance for industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MJ13333?
You can click on the BUY or RFQ button to purchase MJ13333 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MJ13333?
You can download the MJ13333 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MJ13333?
MULTICOMP PRO
