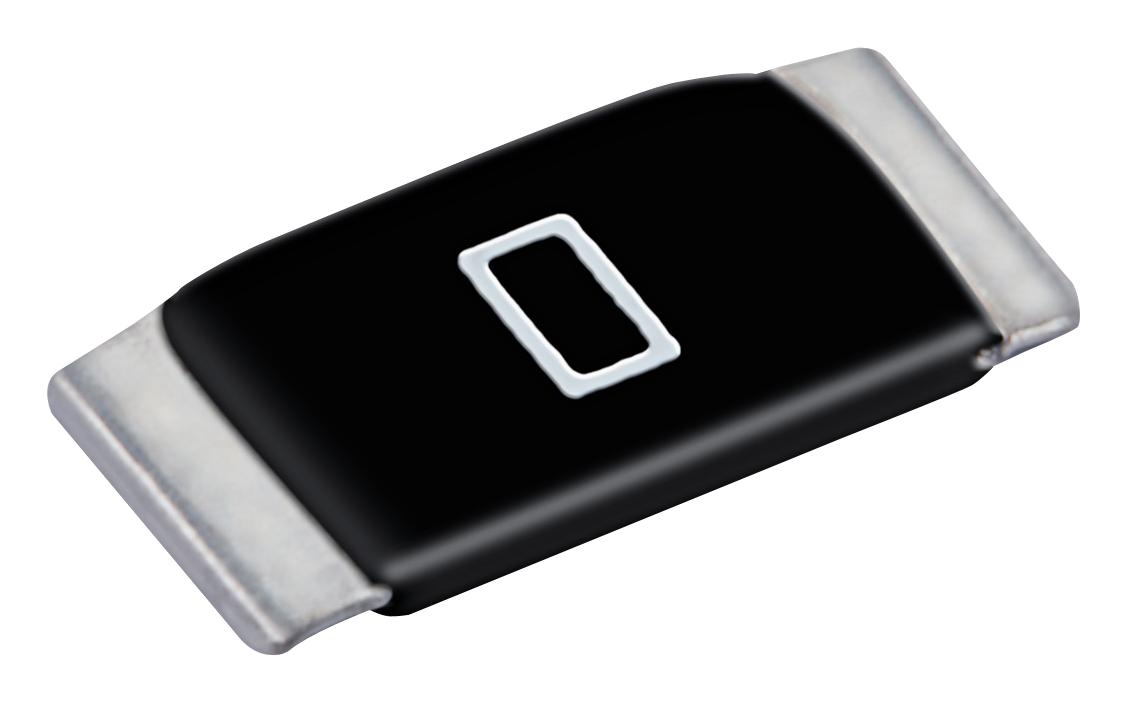

MULTICOMP PRO MP000005 Resistor Jumpers
These high-precision SMD chip resistor jumpers offer ultra-low resistance values up to 0.5 milliohms, ideal for high-current and power management applications. Constructed with a metal alloy process, they feature alumina substrates and external electrodes for enhanced durability and stability. Available in various sizes including 0402, 0603, 0805, 1206, and 2010, these RoHS-compliant jumpers are suitable for mobile devices, servers, and electrical tools, providing reliable performance across extreme temperatures and demanding environments. Their compact design simplifies integration and ensures long-lasting operational efficiency.
MULTICOMP PRO MP000005 Resistor Jumpers Specifications:
- Size options: 0402, 0603, 0805, 1206, 2010
- Resistance: Max. 0.5 mQ (some models 0.2 mQ)
- Rated current: Up to 71A
- Temperature Range: -55°C to +155°C
- Construction: Alumina substrate, external electrode, resistor layer
- RoHS compliant
- Operating Voltage and Resistance provided per model
- Soldering: IR reflow at max 260°C for 10s, up to 3 reflow cycles
- Packaging: Tape reel, paper or embossed, sizes vary
- Material: Metal alloy, Pb-free
- Environmental tests: Resistance variation with temperature, damp heat, dry heat
- Dimensions vary according to size: e.g., 0402: 1 x 0.5 mm, 0603: 1.5 x 0.8 mm
- Compliance: RoHS
Buy the Multicomp Series Resistor Jumpers: MP000005
Purchase the multicomp resistor jumpers MP000005 today online and experience their precise low resistance and high current capacity. Designed with durable materials and RoHS compliance, these jumpers are perfect for demanding applications such as power management, servers, and mobile devices. Available in various sizes, they are easy to integrate and ensure reliable performance over extended periods. Buy online now to ensure your electronic designs operate efficiently, with fast delivery and trusted quality from authorized distributors.
Get multicomp resistor jumpers MP000005 today—built for high current stability and low resistance for power systems and electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000005?
You can click on the BUY or RFQ button to purchase MP000005 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000005?
You can download the MP000005 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000005?
MULTICOMP PRO
