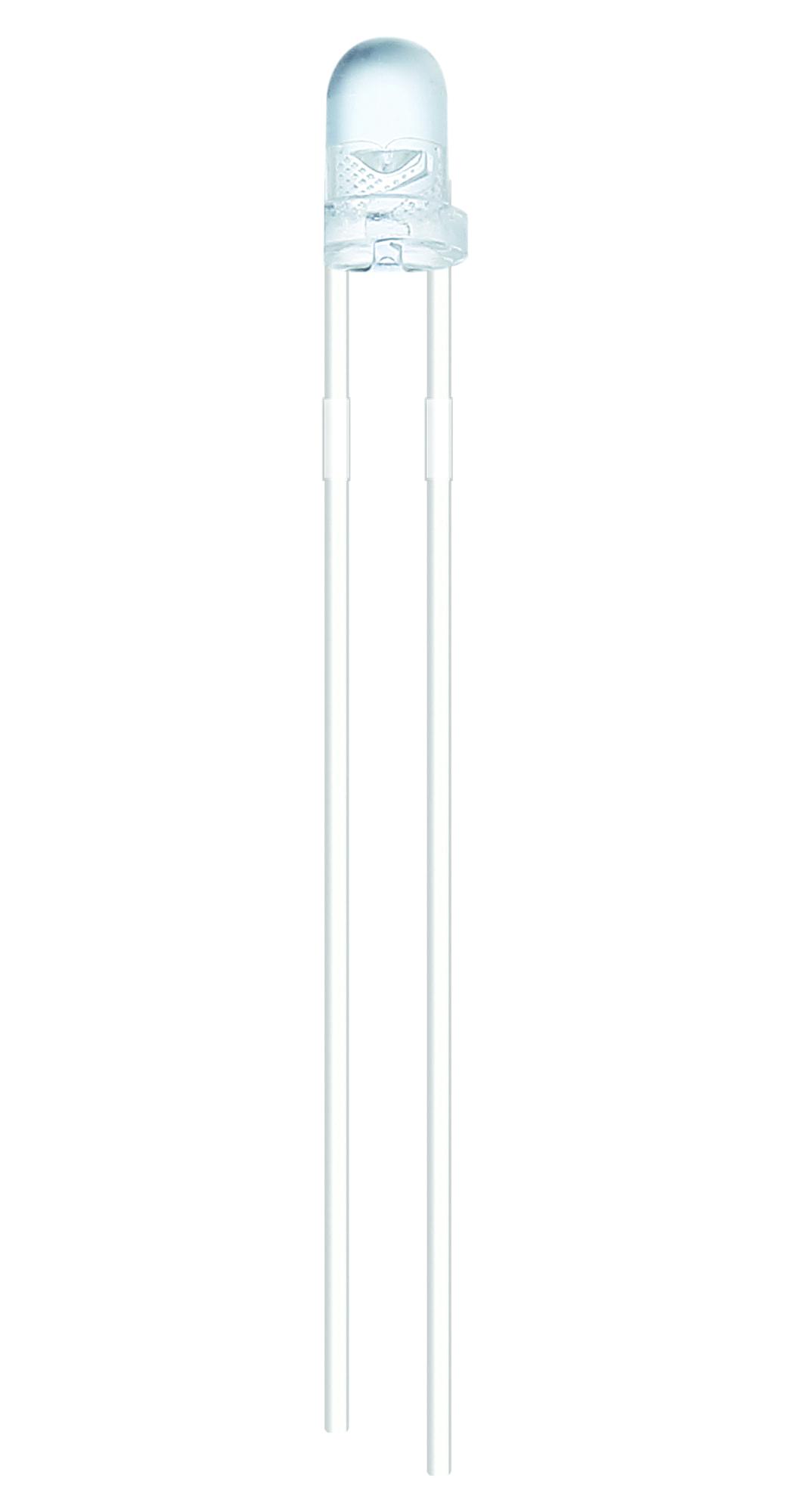

MULTICOMP PRO MP000435 White LED Lamp
The 3mm round white LED lamp emits bright, clear white light with a luminous intensity of up to 9000mcd and a viewing angle of 36 degrees. Designed with InGaN dice material, it operates efficiently at 3.2 to 3.5 volts and a current of 20mA, making it suitable for various indicator and illumination applications. It features RoHS compliance, a water-clear lens, and a temperature range from -40°C to +85°C. Ideal for electronic projects, digital displays, and signaling devices with robust electrical and optical performance.
MULTICOMP PRO MP000435 White LED Lamp Specifications:
- Dice Material: InGaN
- Emitted Colour: White
- Lens Colour: Water Clear
- Viewing Angle: 36 Deg.
- Luminous Intensity: 9000mcd
- Forward Voltage: 3.2 to 3.5 V
- Power Dissipation: 85 mW
- Peak Forward Current: 100 mA
- Recommended Operating Current: 20 mA
- Reverse Voltage: 5 V
- Reverse Current: 10 nA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature Range: 260°C for 5 sec.
- Electrostatics Discharge (ESD): 200 V
Buy the Multicomp Series 3mm White LED: MP000435
Experience high-quality illumination with the white LED lamp designed for durability and efficiency. The 3mm size makes it perfect for electronic displays, indicator lights, and signaling devices. With a luminous intensity of 9000mcd and a 36-degree viewing angle, it ensures bright, clear light with excellent optical performance. RoHS compliant and capable of withstanding operating temperatures from -40°C to +85°C, this LED is ideal for various industrial, commercial, and hobbyist applications. Easily integrate this LED into your electronics projects for reliable, long-lasting performance.
Get multicomp MP000435 today—built for bright illumination and reliable performance in electronic signaling and indicator projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000435?
You can click on the BUY or RFQ button to purchase MP000435 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000435?
You can download the MP000435 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000435?
MULTICOMP PRO
