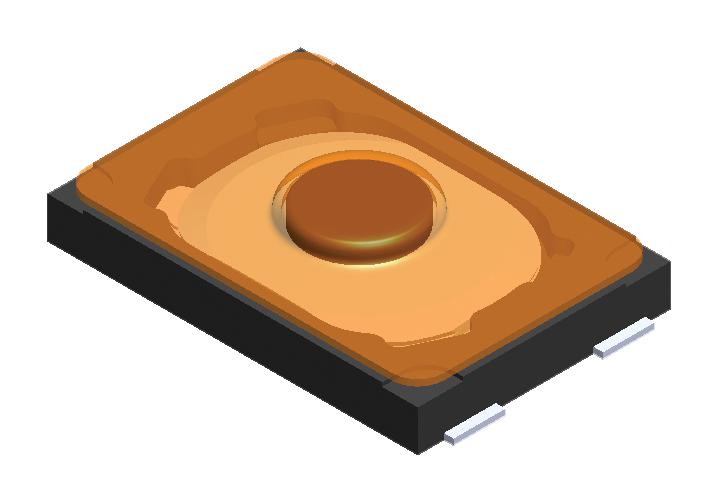

MULTICOMP PRO MP000697 Surface Mount Tact Switch
This surface mount tact switch offers a compact size of 2.8mm x 1.9mm with a low profile of 0.6mm, designed for portable electronic devices, smartphones, digital cameras, and medical equipment. It features a long operational cycle, with 300,000 cycles lifespan, and is water and dust proof, making it ideal for 3C products. The switch provides reliable performance with a contact resistance of 100MΩ min., insulation resistance of 500mΩ max, and a dielectric strength of 100V AC for 1 minute. Operating force varies between 160 to 200 gf, with a travel of 0.13mm, suitable for high durability and durability applications.
MULTICOMP PRO MP000697 Surface Mount Tact Switch Specifications:
- Contact Resistance: 100MΩ min. (at 100V DC)
- Insulation Resistance: 500mΩ max.
- Dielectric Strength: 100V AC/1 minute
- Operating Force: 160+50 to 200+50 gf
- Travel: 0.13mm
- Operating Life: 300,000 cycles
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Dimensions: 2.8mm x 1.9mm x 0.6mm
- Water and Dust proof: Yes
- Compliance: RoHS, Halogen Free
Buy the Buy Multicomp Surface Mount Tact Switch Part Number MP000697 Online
Purchase the Multicomp surface mount tact switch MP000697 online today. Its compact size, low profile of 0.6mm, water and dust resistance, and durable 300,000 cycle lifespan make it an excellent choice for smartphones, digital cameras, medical equipment, and portable electronics. Designed for high reliability, it features a 0.13mm travel, operating force of 160 to 200 gf, and insulation resistance of 500MΩ. Reliable, compact, and RoHS compliant, ideal for demanding electronic applications.
Buy Multicomp MP000697 now and experience unmatched reliability and long-lasting performance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000697?
You can click on the BUY or RFQ button to purchase MP000697 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000697?
You can download the MP000697 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000697?
MULTICOMP PRO
