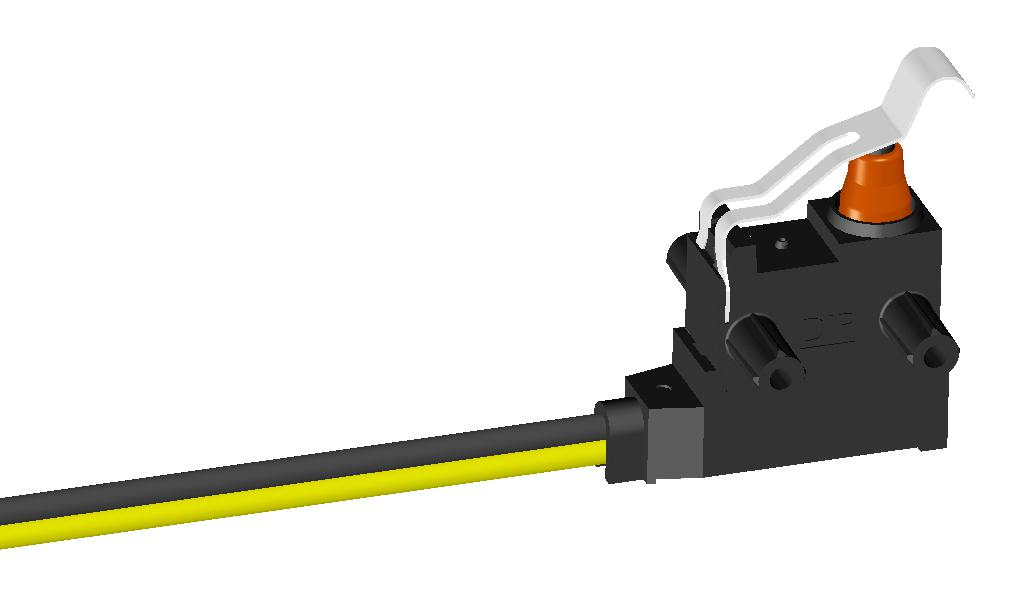

MULTICOMP-PRO MP000737 detector switch
The detector switch model MP000737 is a noiseless, sealed, vertical push-type switch suitable for automotive, industrial, and white goods applications. It features a long travel mechanism, RoHS compliance, and halogen-free design. With a contact rating of 10mA at less than 25V DC, it provides reliable performance with a contact resistance of 6800 +1.5%. The switch can withstand an insulation resistance of 100MQ minimum at 500V DC and a dielectric strength of 250V AC for 1 minute. Operating force is 1.6N, with a lifespan of 200,000 cycles, and operates in temperatures from -40°C to +85°C. Its compact dimensions include an 8.3mm to 9.15mm switch travel range and wire lead connectivity, making it ideal for precision control in demanding environments.
MULTICOMP-PRO MP000737 detector switch Specifications:
- Contact Rating: 10mA, <25V DC
- Contact Resistance: 6800 +1.5%
- Insulation Resistance: 100MQ min, 500V DC
- Dielectric Strength: 250V AC/1 minute
- Operating Force: 1.6N
- Operating Life: 200,000 cycles
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Dimensions: Travel 8.3mm to 9.15mm
- Wire Lead Connection
- RoHS Compliant
- Halogen Free
- Vertical Push Type
- Sealed Design
Buy the Generic MP000737 – Reliable Detector Switch for Industrial Applications
Enhance your automation and control systems with this reliable detector switch. Designed for precision and durability, it offers long travel, noiseless operation, and RoHS compliance. Perfect for automotive, industrial, and white goods applications, this switch guarantees stable performance with a contact rating of 10mA at less than 25V DC. Its sealed, halogen-free construction ensures safety and longevity, while operating between -40°C and +85°C. Invest in this high-quality switch today for efficient, dependable control in your machinery.
Buy General Detector Switch MP000737 now and experience reliable operation and long-lasting performance in demanding control systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP000737?
You can click on the BUY or RFQ button to purchase MP000737 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000737?
You can download the MP000737 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP000737?
MULTICOMP-PRO
