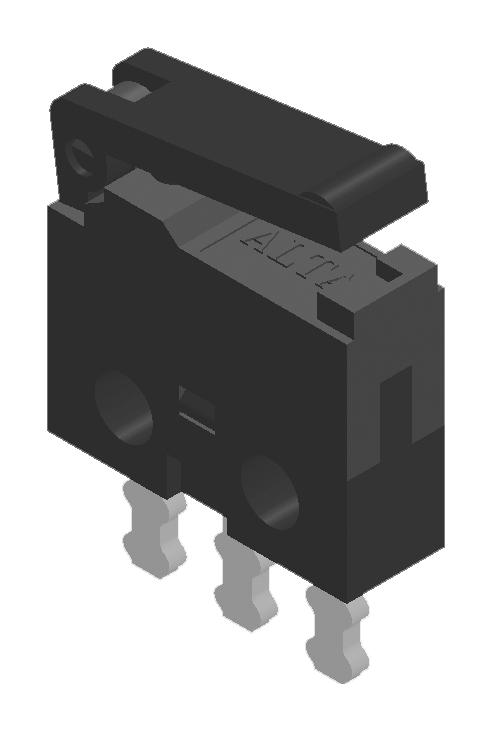

MULTICOMP PRO MP000799 Hinge Lever Micro Switch
This micro switch is a hinge lever type rated at 0.5A, 30V DC, suitable for various electronic and automation applications including mapping devices and portable electronics. It features through hole mounting with options for vertical and right-angle installation, reliable mechanical and electrical durability of 100,000 and 50,000 cycles respectively, and meets RoHS compliance. Its operating temperature ranges from -40°C to +85°C, with precise operating force and release characteristics, making it ideal for small audio equipment, OA devices, and other compact electronic systems. The switch’s contact resistance is less than 100mΩ, ensuring efficient performance.
MULTICOMP PRO MP000799 Hinge Lever Micro Switch Specifications:
- Contact Rating: 0.5A, 30V DC
- Mechanical Durability: 100,000 cycles
- Electrical Durability: 50,000 cycles
- Contact Resistance: > 100mΩ
- Insulation Resistance: 100MΩ min. at 500V DC
- Dielectric Strength: 250V AC between terminals and ground
- Operating Temperature: -40°C to +85°C
- Operating Force: 0.5N Max.
- Release Force: 0.03N Min.
- Over Travel: 0.3mm Min.
- Movement Differential: 0.7mm Max.
- Operating Position: 6.7mm +0.5mm
- Free Position: 8mm Max.
- Pretravel: 1.8mm Max.
- Terminal Type: Uneven Pitch
- Dimensions: Variety of options including 2.7mm to 3.1mm terminal lengths
- RoHS Compliant
Buy the Premier Farnell Series Micro Switch MP000799: 0.5A 30V DC, Through Hole, Hinge Lever
Purchase the Premier Farnell MP000799 hinge lever micro switch online today to experience reliable, high-quality switching for your electronic projects. Designed for durability with a contact rating of 0.5A at 30V DC and boasting 100,000 mechanical cycles, this switch is perfect for mapping devices, portable electronics, and OA equipment. Its through hole mounting allows easy integration into various configurations. With RoHS compliance, operating from -40°C to +85°C, and precise operating force specifications, ensure optimal performance in your electronic solutions by ordering this dependable switch online now.
Get Premier Farnell MP000799 today—built for precise switching and long-lasting durability in electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000799?
You can click on the BUY or RFQ button to purchase MP000799 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000799?
You can download the MP000799 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000799?
MULTICOMP PRO
