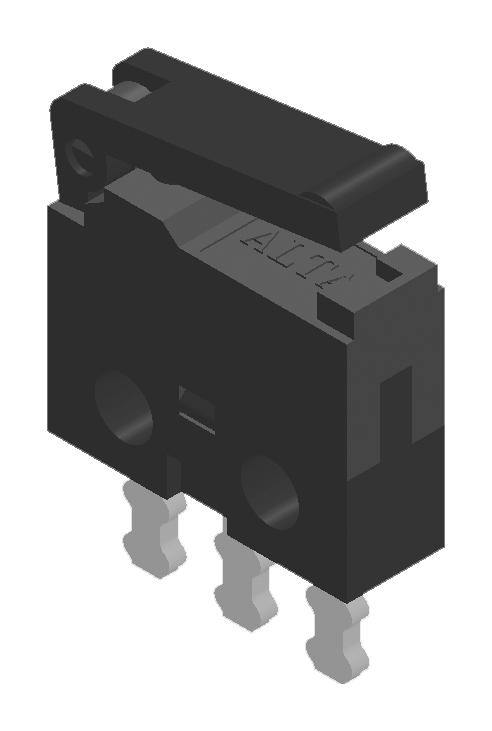

MULTICOMP PRO MP000801 Hinge Lever Microswitch
These through hole snap action microswitches are ideal for various electronic applications including mapping devices, small audio equipment, office automation, and portable electronic devices. Featuring a hinge lever design, they support RoHS compliance and are available with SPDT, SPST-NC, and SPST-NO configurations. Capable of operating at temperatures from -40°C to +85°C, they provide reliable cycle durability with mechanical lifespan of 100,000 cycles and electrical lifespan of 50,000 cycles. Their compact size and versatile pin configurations make them suitable for precise control tasks in electronic circuits.
MULTICOMP PRO MP000801 Hinge Lever Microswitch Specifications:
- Contact Rating: 0.5A, 30V DC
- Mechanical Durability: 100,000 cycles
- Electrical Durability: 50,000 cycles
- Operating Temperature: -40°C to +85°C
- Contact Resistance: > 100mΩ
- Insulation Resistance: 100MΩ min. at 500V DC
- Dielectric Strength: 250V AC for 1 minute between terminals
- Operating Frequency: Mechanical 60 ops/min, Electrical 20 ops/min
- Operating Force: 0.5N Max.
- Release Force: 0.03N Min.
- Over Travel: 0.3mm Min.
- Movement Differential: 0.7mm Max.
- Operating Position: 6.7mm ±0.5mm
- Free Position: 8mm Max.
- Pretravel: 1.8mm Max.
- Terminal Type: Uneven pitch
Buy the Buy Multicomp Microswitch Part Number MP000801 Online
Purchase the high-quality hinge lever microswitch from Multicomp online to enhance your electronic control systems. Featuring a robust construction, RoHS compliance, and multiple circuit configurations, this switch supports efficiency and durability for a wide range of applications. Its operating temperature range from -40°C to +85°C ensures reliable performance in various environments. With a cycle lifespan of 100,000 mechanical operations and 50,000 electrical cycles, it provides long-lasting service for mapping devices, small audio equipment, and portable electronics, making it the optimal choice for your next project.
Buy Multicomp MP000801 now and ensure reliable, high-performance control in your electronic projects with this durable hinge lever microswitch.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000801?
You can click on the BUY or RFQ button to purchase MP000801 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000801?
You can download the MP000801 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000801?
MULTICOMP PRO
