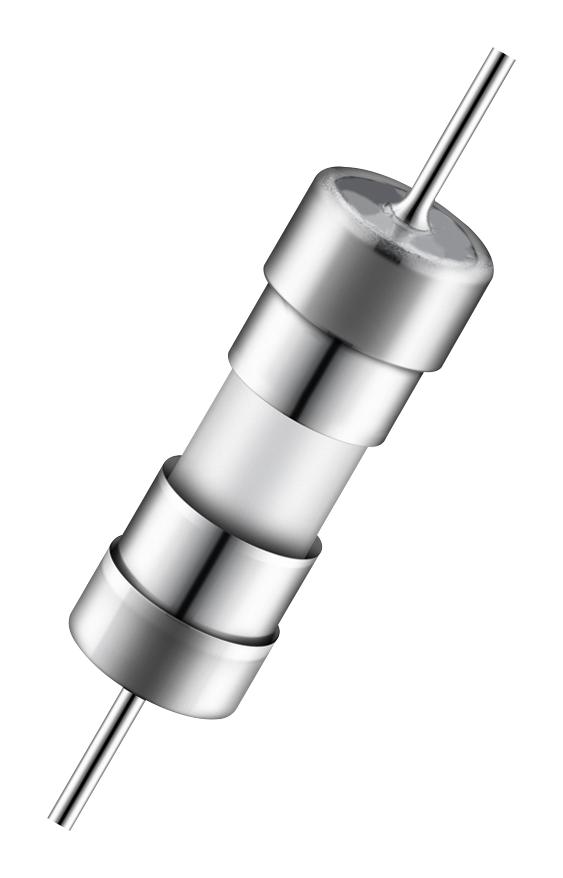

MULTICOMP PRO MP000831 Time-Lag Ceramic Fuse
This time-lag ceramic cartridge fuse measures 93.6mm x 10mm and is rated at 1.6A and 250V AC. Designed with a ceramic body and nickel-plated brass caps, it provides reliable protection for electrical circuits with a current interrupting capacity of 35A or 10 times the rated current at 250V AC. Operating temperature ranges from 1°C to +125°C. Suitable for industrial applications, its fast-response characteristics ensure quick circuit interruption during overloads, preventing damage and improving safety. Ideal for use in fuse holders and electronic equipment requiring precise overload protection.
MULTICOMP PRO MP000831 Time-Lag Ceramic Fuse Specifications:
- Current Rating: 1.6A
- Voltage Rating: 250V AC
- Fuse Body Material: Ceramic
- Termination Material: Nickel Plated Brass Caps
- Operating Temperature: 1°C to +125°C
- Interrupting Current Rating: 35A or 10x rated current at 250V AC
- Physical Dimensions: 93.6mm x 10mm
- Melting Imax: 29.768A
- Nominal Cold Resistance: 0.046 Ohms
- Voltage Drop: 120mV
- Minimum Melting Time at 2.5A: 400ms
- Reaction Time: Fast blow, time-lag design
- Compliance: RoHS, UL Listed
Buy the Multicomp 831 U+2013 Reliable Overload Protection for Industrial Applications
Purchase the Multicomp 831 ceramic fuse online today for dependable overload protection in your electrical and electronic projects. Its robust ceramic body and nickel-plated brass caps deliver long-lasting durability, ensuring optimal circuit safety. Designed for applications requiring quick response to overloads, this fuse features a rated current of 1.6A and voltage of 250V AC, with operating temperatures from 1°C to +125°C. Easy to install in fuse holders, this reliable device prevents circuit damage and enhances safety across a wide range of industrial and electrical systems.
Get Multicomp 831 today—built with durable ceramic and nickel-plated caps for highly reliable circuit protection.
