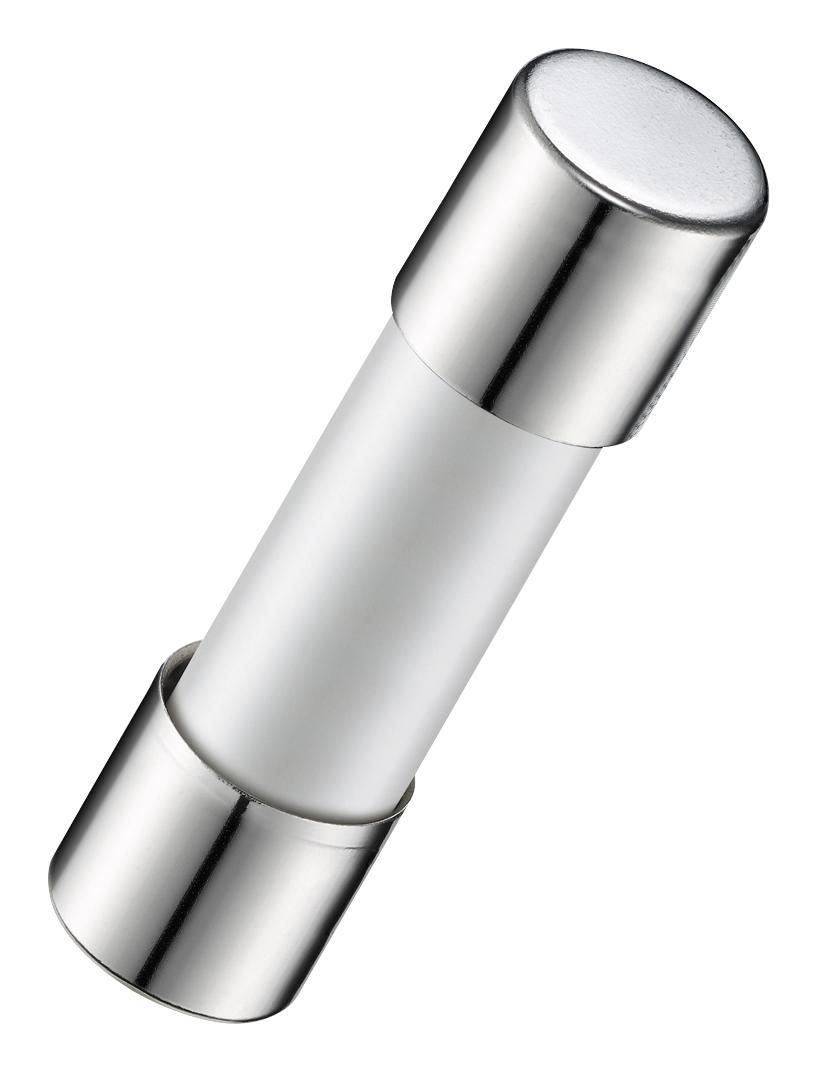

MULTICOMP PRO MP000839 Ceramic Cartridge Fuse
This fast-acting ceramic cartridge fuse measures 5.2mm by 20mm and features a 1A rating with a 250V AC voltage capacity. Made from ceramic with nickel-plated brass caps, it offers reliable interruption at currents up to 35A or 10 times its rated current. Operating within -55°C to +125°C, it is suitable for protecting electronic circuits and reducing risk of damage from overcurrent conditions. Its compact size makes it ideal for space-constrained applications requiring quick response to overloads, ensuring safety and longevity of electrical components.
MULTICOMP PRO MP000839 Ceramic Cartridge Fuse Specifications:
- Dimensions: 5.2mm x 20mm
- Material: Ceramic body, Nickel plated brass caps
- Current Rating: 1A to 10A (various models)
- Voltage Rating: 250V AC
- Interrupting Current Rating: 35A or 10x rated current (whichever is greater)
- Operating Temperature Range: -55°C to +125°C
- Nominal Cold Resistance: 0.091 Ohms (1A model), 0.0727 Ohms (2A model), etc.
- Melting I²t: 7.137 mV-sec (1A), 1.8792 mV-sec (2A), etc.
- Certification: RoHS compliant
- Termination: Nickel plating, brass caps
Buy the Buy multicomp ceramic cartridge fuse Part Number MP000839 Online
Enhance your electronic safety with this reliable ceramic cartridge fuse, measuring 5.2mm by 20mm, rated at 1A and 250V AC. It features a ceramic body for durability, nickel-plated brass caps for corrosion resistance, and operates across -55°C to +125°C. Designed for quick response to overloads, it protects sensitive electronics from overcurrent conditions. Compact and easy to install, this fuse is perfect for various applications requiring space-efficient and dependable circuit protection ensuring device longevity and safety.
Buy multicomp MP000839 now and ensure reliable circuit protection with fast-acting ceramic fuse designed for overcurrent safety.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000839?
You can click on the BUY or RFQ button to purchase MP000839 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000839?
You can download the MP000839 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000839?
MULTICOMP PRO
