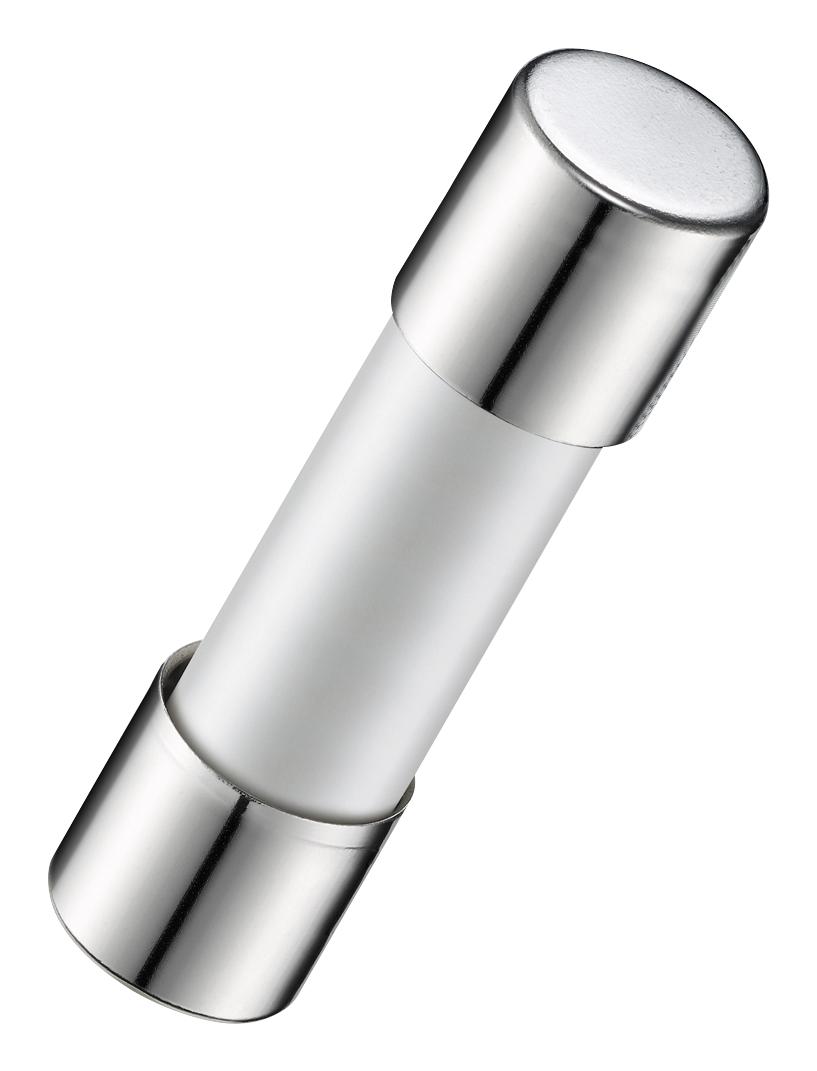

MULTICOMP-PRO MP000842 Ceramic Cartridge Fuse
This fast-acting ceramic cartridge fuse measures 5.2mm x 20mm and is rated at 4A and 250V AC, suitable for circuit protection in electronic and electrical systems. Constructed with a ceramic body and nickel-plated brass caps, it features an interrupting current rating of 35A or ten times the rated current at 250V AC. Operating temperature ranges from 1°C to 55°C, ensuring reliable performance. Designed to provide rapid response to overcurrent conditions, it is ideal for protecting sensitive electronic equipment and electrical circuits from damage.
MULTICOMP-PRO MP000842 Ceramic Cartridge Fuse Specifications:
- Dimensions: 5.2mm x 20mm
- Material: Ceramic body, Nickel Plated Brass caps
- Current Rating: 4A
- Voltage Rating: 250V AC
- Interrupting Current Rating: 35 Amperes or 10x rated current at 250V AC
- Operating Temperature Range: 1°C to 55°C
- Nominal Cold Resistance: 0.0283 Ohms
- Voltage Drop: 300mV at rated current
- Melting I²t: 14.544 A² sec
- RoHS Compliant
- Fast-acting response for overcurrent conditions
Buy the Multicomp Series Ceramic Fuse: 5.2mm x 20mm 4A 250V AC
Secure your electronic devices and electrical systems with our high-quality ceramic cartridge fuse measuring 5.2mm x 20mm. Rated at 4A and 250V AC, it offers rapid response to overcurrent situations thanks to its fast-acting design. Made with durable ceramic material and nickel-plated brass caps, this fuse ensures reliable performance and longevity under various operating temperatures. Ideal for circuit protection across multiple applications, it provides safe and effective overload safeguarding in professional electrical installations.
Buy Multicomp ceramic fuse with 4A current rating now and experience unmatched reliability and performance in circuit protection.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP000842?
You can click on the BUY or RFQ button to purchase MP000842 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000842?
You can download the MP000842 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP000842?
MULTICOMP-PRO
