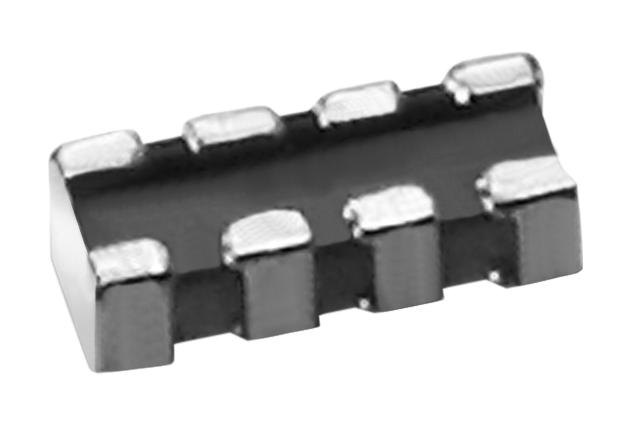

MULTICOMP-PRO MP000965 Thick Film Resistor Array
The product features a thick film resistor array designed for reliable performance and high quality. Constructed on alumina substrates with external and edge electrodes, these resistors are RoHS compliant, suitable for IR reflow soldering, and available in various configurations with specific dimensions and resistance ranges. They are ideal for applications requiring compact size and robust electrical characteristics, including communication, power, measuring instruments, and entertainment equipment. Their construction ensures durability under temperature variations, making them suitable for demanding electronic assemblies.
MULTICOMP-PRO MP000965 Thick Film Resistor Array Specifications:
- Construction: Alumina substrate with external, edge, bottom, top, and secondary overcoat electrodes
- Dimensions vary per type: MP-21 approx. 0.84x0.62 mm; MP-41 approx. 1.4x0.6 mm; MP-42 approx. 2.4x1.0 mm; MP-43 approx. 3.2x1.6 mm
- Resistance Range: 150Ω to 560KΩ, depending on model
- Power Rating at 70°C: MP-21 2×1/32W, MP-41 2×1/32W, MP-42 1.6W, MP-43 1.5W
- Resistance Tolerance: ±1% or ±5%
- Temperature Coefficient: +200ppm/°C
- Voltage Rating: 12.5V to 50V
- Operating Temp Range: -55°C to +155°C
- Soldering: Suitable for IR reflow, wave, and hand soldering with specified conditions
- RoHS compliant and designed for high reliability in electronic circuits
Buy the Buy multicomp Thick Film Array Chip Resistors Part Number MP000965 Online
Purchase the multicomp thick film resistor array MP000965 online now to ensure your electronic projects benefit from reliable, high-quality performance. These resistor arrays are compact, RoHS compliant, and designed for demanding applications like communication, power, and measurement devices. Experience easy sourcing, fast delivery, and the confidence of working with a trusted supplier. Whether for manufacturing or repair, order today and give your assemblies the durability and precision they require for optimal functionality.
Order your multicomp Series MP000965 thick film resistor array today and enhance your electronic projects with dependable and high-quality performance.
