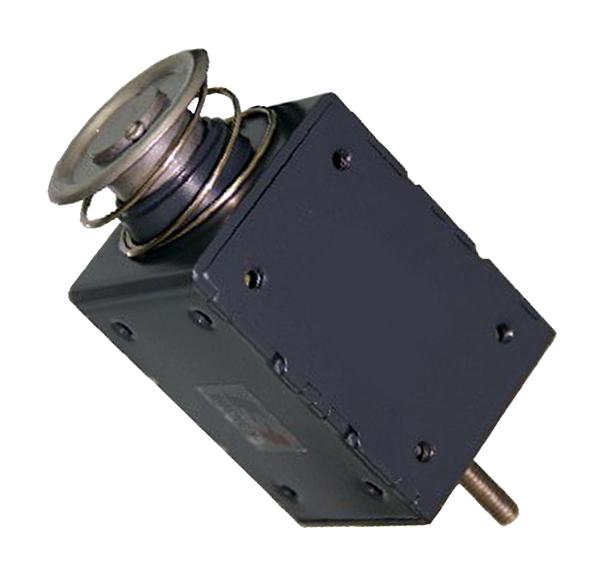

MULTICOMP PRO MP001152 Box Frame Solenoid
The Box Frame Solenoid is a high-performance, 48V DC, 48W actuation device designed for precise linear motion with a 10mm thrust force. It features a rugged IP00 degree of protection, a durable lifespan of 2.5 million cycles, and operates efficiently within -20°C to +65°C. Its electrical specifications include 500V DC insulation resistance and a dielectric strength of 2500V DC. Suitable for industrial automation, this solenoid ensures reliable, high-force switching with quick response times. Ideal for machinery requiring robust and long-lasting electromagnetic actuation.
MULTICOMP PRO MP001152 Box Frame Solenoid Specifications:
- Operating Temperature / Humidity: -20°C to +65°C / 5% to 95% RH
- Store Temperature / Humidity: 1-20°C to +45°C / 5% to 60% RH
- Operating Voltage: 48V DC +10%
- Insulation Resistance: 500V DC, 250MQ
- Dielectric Strength: 2500V DC 50/60Hz
- Insulation Level: Class B (130°C)
- Wattage: 48W (48V DC, R=480#10%)
- Stroke-Force: 10mm thrust, 40+3N
- Work Cycle: Pass: off = 0.2 sec: 0.6 sec (ED 25%)
- Temperature Rise: +100°C (48V DC, pass 0.2 sec, break 0.6 sec, 1 hour, no load)
- Response Time: 250ms (48V DC, S=10mm, no load)
- Leading strength: 1Kgf-30 seconds
- Life: 2,500,000 cycles
- Degree of Protection: IP00
- Dimensions: 27.80mm x 45.00mm
- Part Number: MP001152
Buy the Multicomp Series Box Frame Solenoid: MP001152
Purchase the reliable 48V DC Box Frame Solenoid MP001152 online today. Designed for industrial automation, it offers a thrust of 40N, operates within a wide temperature range, and boasts a lifespan of 2.5 million cycles. The solenoid’s compact dimensions of 27.80mm by 45.00mm make it suitable for various machinery requiring robust electromagnetic switching. Its electrical features include 2500V dielectric strength and 500V insulation resistance, ensuring safe and efficient operation for demanding applications. Order now for fast delivery and quality performance.
Get Multicomp Series MP001152 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001152?
You can click on the BUY or RFQ button to purchase MP001152 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001152?
You can download the MP001152 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001152?
MULTICOMP PRO
