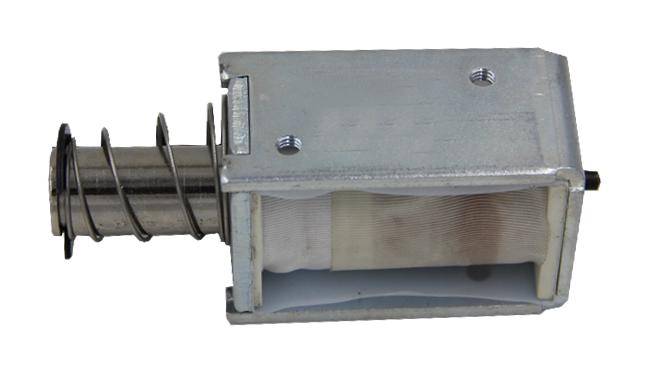

MULTICOMP PRO MP001154 Frame Solenoid
This Frame Solenoid operates at 110V DC with a power rating of 340W, providing a 3mm thrust force of 23000gf. Designed for reliable performance, it features insulation resistance of 250MQ at 500V DC and dielectric strength of 1000V DC, meeting Class B insulation standards at 130°C. Suitable for automation applications, it endures up to 2200 cycles with a response time of approximately 20ms. The solenoid's compact dimensions and high durability make it ideal for industrial automation and control systems, ensuring efficient operation under various environmental conditions.
MULTICOMP PRO MP001154 Frame Solenoid Specifications:
- Operating Temperature / Humidity: -40°C to +75°C / 5% to 95% RH
- Store Temperature / Humidity: -40°C to +75°C / 5% to 60% RH
- Operating Voltage: 110V DC ±5%
- Insulation Resistance: 250MQ at 500V DC
- Dielectric Strength: 1000V DC 50/60Hz
- Insulation Level: Class B (130°C)
- Wattage: 340W (110V DC, R=35.50, 410%)
- Stroke-Force: 3mm thrust, 23000gf
- Work Cycle: Pass: off = 0.05s: 5s, maximum power-on time 0.5s
- Temperature Rise: +80°C at 110V DC, pass cycle
- Response Time: approximately 20ms
- Leading Strength: 1Kgf for 30 seconds
- Life Expectancy: 2200 cycles
- Dimensions: millimetres
Buy the Multicomp Series Frame Solenoid: MP001154
Get the reliable high-power Frame Solenoid operating at 110V DC with 340W power and 3mm stroke, designed for industrial automation. Features include 250MQ insulation resistance, 1000V dielectric strength, and a lifespan of 2200 cycles. Its compact design and quick response time make it suitable for demanding control systems. Perfect for applications requiring durable and precise actuation, this solenoid ensures optimal performance across various environmental conditions. Purchase online today for efficient automation solutions with proven reliability.
Order your Multicomp Series MP001154 high-performance 110V DC Frame Solenoid today and give your automation projects the dependable quality they deserve.
