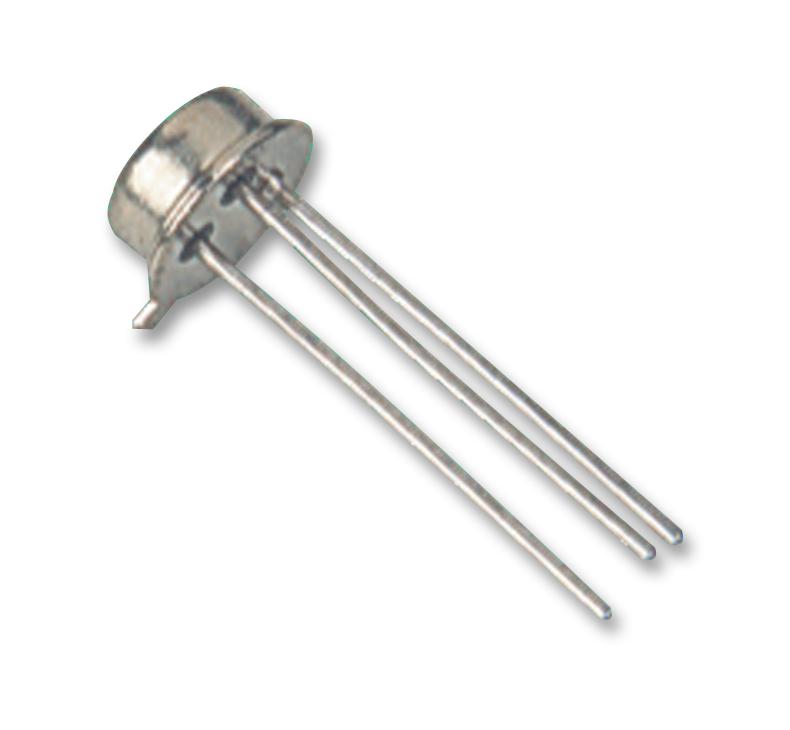

MULTICOMP PRO MP001164 NPN Transistor
The NPN Silicon Planar Transistor is a reliable semiconductor device suitable for switching and amplification applications. It features a voltage rating of 80Vceo, a collector current of 500mA, and robust thermal and electrical characteristics. Encased in a TO-39 metal package, it offers stable performance at high frequencies with a gain bandwidth product of 50 MHz. Its wide operating temperature range from -65°C to +200°C makes it ideal for various industrial and electronic applications, ensuring durability and efficiency in demanding environments.
MULTICOMP PRO MP001164 NPN Transistor Specifications:
- Collector Emitter Voltage: 80V
- Collector Current: 500mA
- Total Device Dissipation: 0.8W at 25°C
- Thermal Resistance Junction to Ambient: 219°C/W
- Switching Frequency: 50 MHz
- Output Capacitance: 15 pF
- Input Capacitance: 85 pF
- Gain Bandwidth Product: 50 MHz
- Collector Emitter Breakdown Voltage: 100V
- Collector Base Breakdown Voltage: 120V
- Emitter Base Breakdown Voltage: 7V
- Operating Temperature Range: -65°C to +200°C
- Package Type: TO-39 Metal Can
- Maximum Power Dissipation: 0.8 W
- Thermal Resistance: Junction to Case 58.3°C/W
- Input Impedance: 4-8 kΩ
- Collector-emitter saturation voltage: 5V
- Base-emitter saturation voltage: 1.3V
Buy the Multicomp Pro MP001164 – Reliable NPN Transistor for Industrial Applications
Purchase the Multicomp Pro NPN Transistor today and enhance your electronic and industrial applications with a reliable, high-performance component. Designed for durability, it offers high frequency response, wide temperature range, and stable electrical characteristics. Ideal for switching, amplification, and signal processing tasks, this transistor ensures long-term performance in demanding environments. With a robust TO-39 metal can package and comprehensive specifications, it's perfect for engineers and hobbyists seeking quality and versatility in their electronic assemblies.
Get Multicomp Pro MP001164 today—built for precision, high frequency, and long-lasting durability in your electronic projects.
