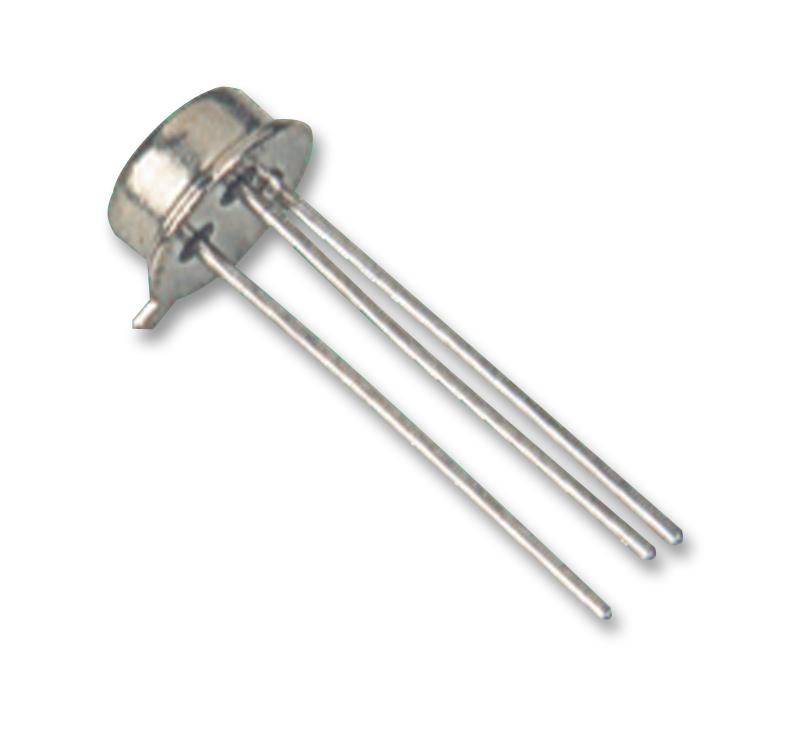

MULTICOMP PRO MP001168 NPN Silicon Transistor
This NPN silicon planar transistor features a maximum collector-emitter voltage of 80V and a collector current of 1A, suitable for high-speed switching and amplification in electronic circuits. It comes in a TO-39 metal can package, offering reliable thermal performance with a junction-to-case resistance of 16.5 °C/W. The device has a power dissipation of 0.8 W at 25°C, and various electrical characteristics include a DC current gain ranging from 80 to 400. Its operating temperature range spans from -65°C to +200°C, making it ideal for industrial and electronic applications requiring robust performance.
MULTICOMP PRO MP001168 NPN Silicon Transistor Specifications:
- Collector-Emitter Voltage: 80V
- Collector Base Voltage: 140V
- Emitter Base Voltage: 7V
- Collector Current: 1A
- Power Dissipation at 25°C: 0.8W
- Thermal Resistance Junction to Case: 16.5°C/W
- Thermal Resistance Junction to Ambient: 89.5°C/W
- Operating Temperature Range: -65°C to +200°C
- DC Current Gain: 80 to 400
- Collector-Emitter Saturation Voltage: 0.5V
- Base Emitter Saturation Voltage: 1.4V
- Input Capacitance: 60 pF
- Output Capacitance: 12 pF
- Package Type: TO-39 Metal Can
- Dimensions: A 8.5-9.39mm, B 7.74-8.5mm, C 6.09-6.6mm, D 0.4-0.53mm
- Junction to Case Resistance: 16.5°C/W
- Junction to Ambient Resistance: 89.5°C/W
Buy the Multicomp MP001168 – Reliable NPN Transistor for Industrial Applications
Enhance your electronic projects with the high-quality Multicomp MP001168 NPN silicon transistor, rated at 80V and 1A for reliable switching and amplification. Its TO-39 metal can package ensures excellent thermal management, making it suitable for demanding industrial applications. With a broad operating temperature range from -65°C to +200°C and a power dissipation of 0.8W, this transistor delivers consistent performance in various environments. Perfect for circuit designers seeking durability, efficiency, and precision in electronic components.
Order your Multicomp MP001168 NPN silicon transistor today and give your projects the dependable switching and amplification performance they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001168?
You can click on the BUY or RFQ button to purchase MP001168 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001168?
You can download the MP001168 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001168?
MULTICOMP PRO
