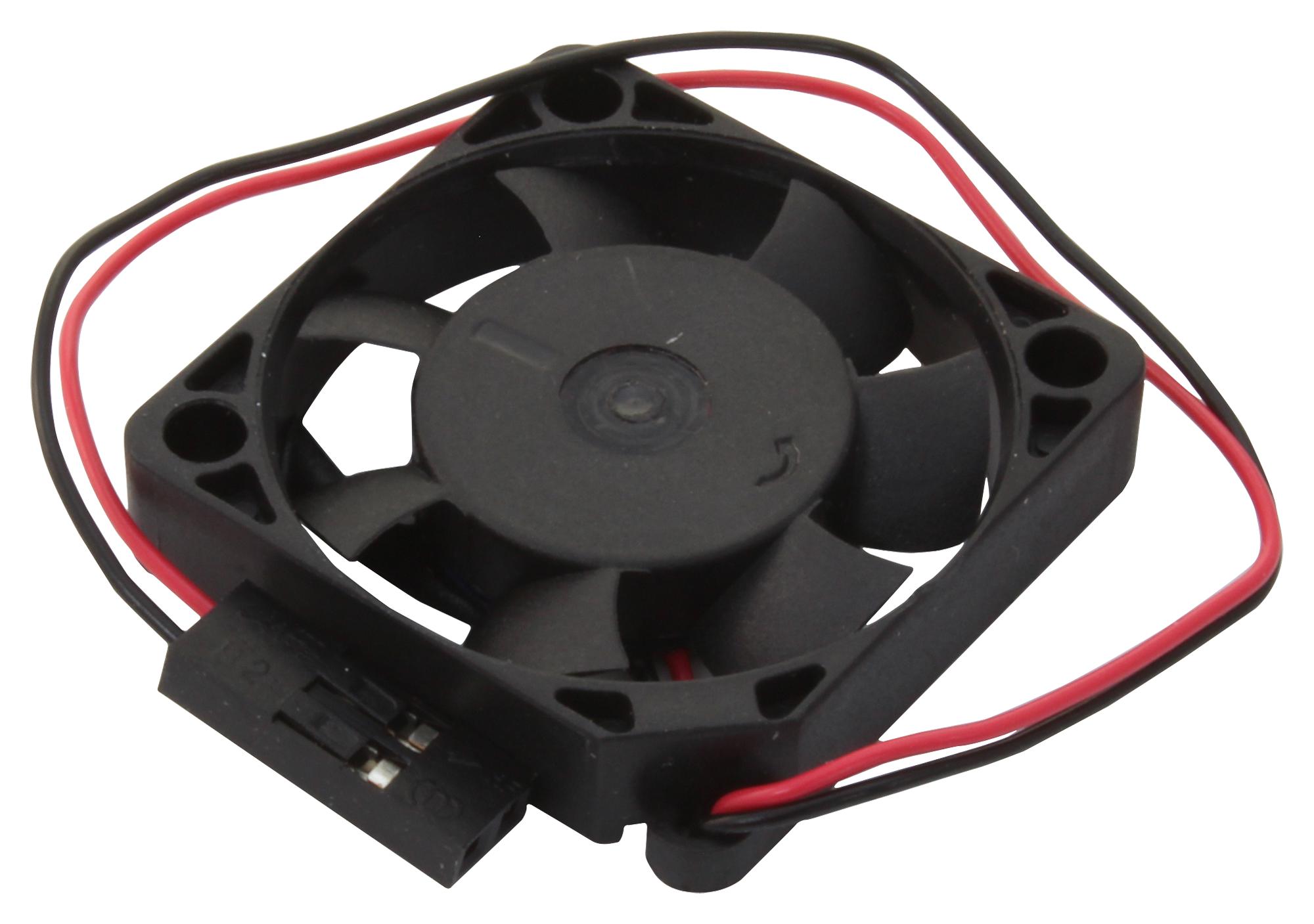

MULTICOMP PRO MP001243 Raspberry Pi 4 Cooling Fan
This axial fan is specifically designed for cooling Raspberry Pi 4, featuring a durable Vapo bearing system for long-term operation. It includes a power hat case for simple mounting and efficient heat dissipation. Driven by a 4-pole, single-phase brushless DC motor, it rotates counter-clockwise from the front, reaching speeds of 9,100 RPM and delivering an airflow of 4.9 CFM. It operates within a 2.5 V to 6 V DC range, ensuring reliable performance across various environmental conditions. The fan ensures quiet operation at less than 28.3dB(A).
MULTICOMP PRO MP001243 Raspberry Pi 4 Cooling Fan Specifications:
- Motor Design: Single phase, 4-poles Brushless DC motor
- Bearing System: Vapo bearing system
- Materials of Frame: Thermoplastic PBT of UL 94V-0
- Materials of Fan Blade: Thermoplastic PBT of UL 94V-0
- Direction of Rotation: Counter-clockwise viewed from front of fan blade
- Mounting Holes: Diameter 3.2mm in 3 holes
- Weight: 6g
- Rated Voltage: 5V DC
- Rated Current: 112mA / Max. 124mA
- Rated Power Consumption: 0.56 Watts / Max. 0.62 Watts
- Operating Voltage Range: 2.5V DC to 6V DC
- Starting Voltage: 2.5V DC
- Operating Temperature Range: -10°C to +70°C
- Performance Speed: 9100 RPM +15%
- Air Flow: 4.9 CFM
- Static Pressure: 20.17 Inch - H2O / Min. 0.14 Inch - H2O
- Acoustic Noise: 23.6dB(A) / Max. 28.3dB(A)
- Insulation Class: UL Class A
- Life Expectancy: 60,000 Hours at 40°C, 65% humidity
- Protection: Automatic Restart, Polarity Protection
Buy the Multicomp Series Axial Fan: 5V DC for Raspberry Pi 4 MP001243
Enhance your Raspberry Pi 4 with this high-quality axial fan featuring a durable Vapo bearing system. It operates efficiently at 5V DC, reaching speeds of 9,100 RPM and providing 4.9 CFM airflow for effective cooling. Its compact design with mounting holes ensures easy installation in power hat cases. The fan’s low noise level of under 28.3dB(A) makes it suitable for quiet environments. Rely on this fan for consistent performance, extended lifespan, and optimal thermal management in your electronic projects.
Buy Multicomp axial fan for Raspberry Pi 4 now and experience reliable cooling with long-lasting Vapo bearing technology and quiet operation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001243?
You can click on the BUY or RFQ button to purchase MP001243 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001243?
You can download the MP001243 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001243?
MULTICOMP PRO
