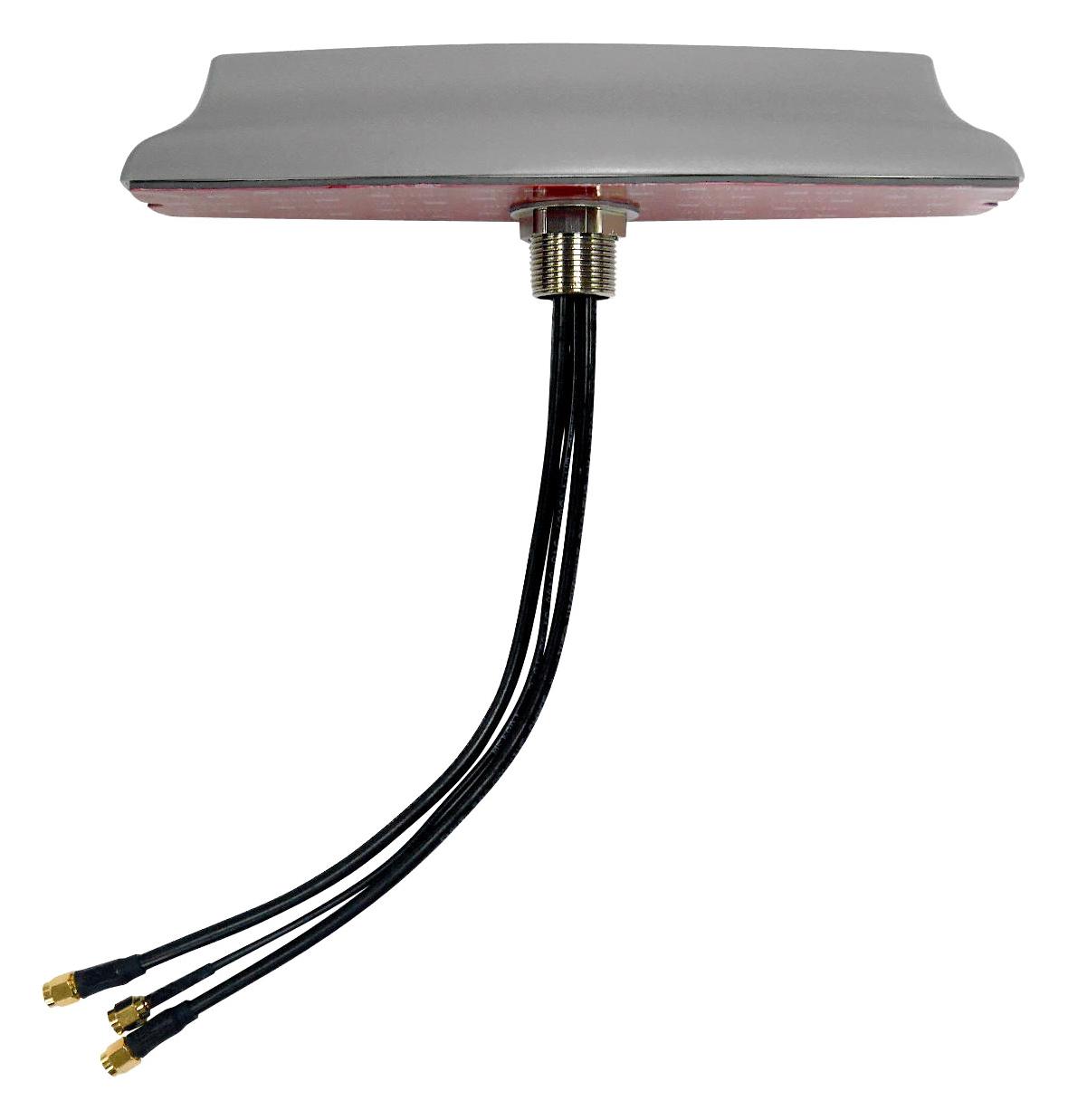

MULTICOMP PRO MP001579 Outdoor LTE GPS Antenna
This outdoor LTE and GPS combo antenna provides reliable dual LTE connectivity and GPS positioning through IP67 waterproof housing, suitable for industrial and remote applications. It features two LTE bands (698MHz-960MHz, 1710-2170MHz, 2300-2690MHz) with 3.3dBi max peak gain and 70% efficiency, along with a GPS/GLONASS antenna operating at 1575.42-1602MHz with 29.2dB and 29dB zenith gain. The antenna's durable housing is made of UL 94 V-0 PC, rated IP67 for waterproofing, with a 1.5m cable and SMA connectors, designed for harsh environments from -40°C to +70°C, humidity up to 95%, ensuring robust outdoor performance.
MULTICOMP PRO MP001579 Outdoor LTE GPS Antenna Specifications:
- Frequency Range: LTE 698-960MHz, 1710-2170MHz, 2300-2690MHz; GPS/GLONASS 1575.42-1602MHz
- Gain: LTE Peak 3.3dBi, GPS Zenith 29.2dB and 29dB
- Impedance: 2500Ω
- VSWR: LTE 4 Max: 1, GPS 12 Max: 1
- Material: PC (UL 94 V-0)
- Waterproof Rating: IP67
- Operating Temperature: -40°C to +70°C
- Humidity Tolerance: 95% @55°C
- Cable: 1.5m LMR100A x3
- Connectors: SMA Plug x3
- Housing Dimensions: 240mm x 65.6mm x 38.7mm
- Housing Color: Grey
- Environmental Resistance: Waterproof, RoHS Compliant
- Power Handling: 2W (LTE), 6mA (GPS LNA), 40.1V Operation Voltage
- Polarization: Linear (LTE), R.H.C.P (GPS)
- Frequency Stability and Efficiency: LTE 70%, GPS Noise Figure 3dB
Buy the Multicomp LTE and GPS Antenna – Reliable Communication for Industrial Applications
Order the outdoor LTE and GPS combo antenna now to ensure reliable communication in demanding environments. Featuring dual LTE bands, GPS functionality, and IP67 waterproof rating, this antenna is designed for industrial, outdoor, and remote locations. Its durable housing, SMA connectors, and wide operating temperature range guarantee long-lasting performance. Perfect for remote monitoring, IoT applications, and industrial connectivity, this antenna combines high efficiency, robust construction, and precise signal reception. Buy online today to enhance your communication infrastructure with proven outdoor technology.
Get multicomp LTE and GPS combo antenna today—built for durability, waterproofing, and reliable outdoor performance in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001579?
You can click on the BUY or RFQ button to purchase MP001579 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001579?
You can download the MP001579 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001579?
MULTICOMP PRO
