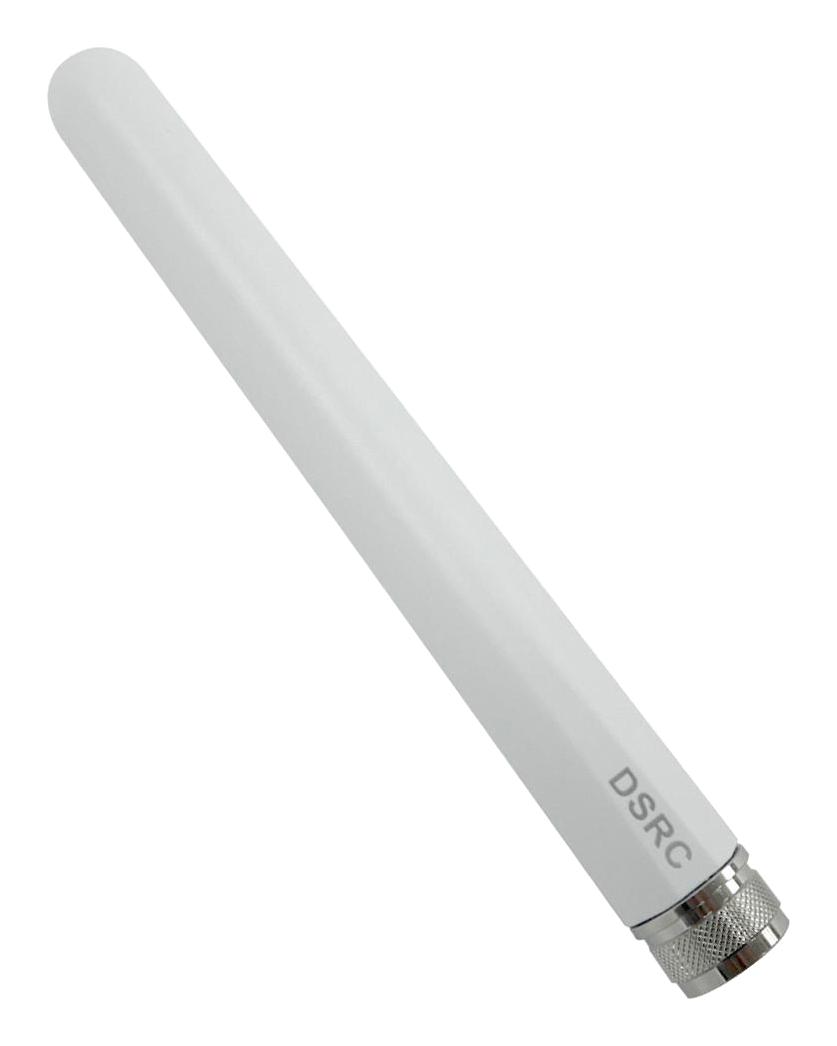

MULTICOMP PRO MP001583 Outdoor omni antenna
The outdoor omni antenna operates at 5.9GHz with IP67 weatherproof protection, offering linear vertical polarization, 360° horizontal, and 218° vertical beamwidth. It delivers a peak gain of 7.6dBi with 5% efficiency, and has a VSWR max of 1:1, handling up to 2W power. Constructed with durable ASA housing, it measures 178mm in length and 22mm in width, designed for wide outdoor use with a temperature range of -40°C to +70°C, making it ideal for robust wireless communication applications.
MULTICOMP PRO MP001583 Outdoor omni antenna Specifications:
- Frequency Range: 5795MHz to 5925MHz
- Polarization: Linear, Vertical
- Horizontal Beamwidth: 360°
- Vertical Beamwidth: 218°
- Peak Gain: 7.6dBi
- Efficiency: 5% typ.
- VSWR Max: 1:1
- Power Handling: 2W (cw)
- Impedance: 50Ω
- Connector: N Plug
- Temperature Range: -40°C to +70°C
- Housing Material: ASA
- Housing Color: White
- Weight: 60g
- Dimensions: 178mm (L) x 22mm (W)
Buy the Multicomp Series Omni Antenna: 5.9GHz, IP67, MP001583
Get the outdoor omni antenna designed for seamless 5.9GHz communication with IP67 weatherproof durability. Easy to install, it features linear vertical polarization, a 360° horizontal beam pattern, and robust construction with ASA housing for outdoor environments. Capable of peak gain 7.6dBi, it handles 2W power with low VSWR, suitable for Wi-Fi, wireless bridges, and outdoor network solutions. Purchase online now for reliable, long-lasting outdoor wireless connectivity improvement.
Order your Multicomp Series omni antenna at 5.9GHz with IP67 waterproof protection today and enhance your outdoor wireless network with reliable coverage and durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001583?
You can click on the BUY or RFQ button to purchase MP001583 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001583?
You can download the MP001583 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001583?
MULTICOMP PRO
