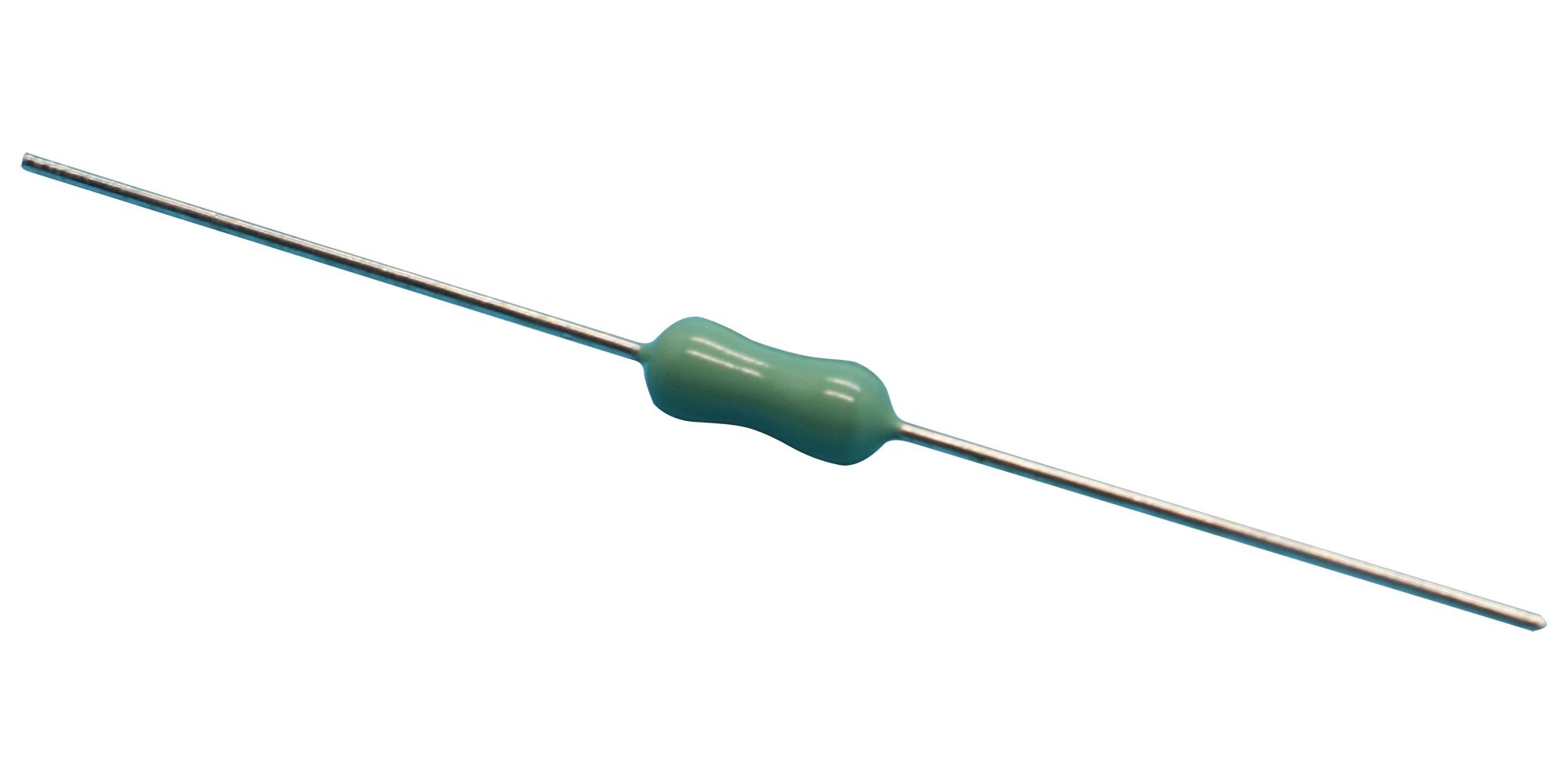

MULTICOMP PRO MP001589 Sub-Miniature Fuse
This is a quick-acting, sub-miniature fuse designed for use on printed circuit boards, providing protection against over-currents. With dimensions of 3mm x 7mm, it features a ceramic body with epoxy encapsulation and nickel-plated brass end caps. Rated at 250V AC and capable of interrupting 50A at 250V, it is suitable for applications such as flat-panel TVs, LCD monitors, medical equipment, lighting, and industrial devices. Its low breaking capacity ensures precise protection, and it is RoHS compliant, lead-free, and halogen-free, with rigorous testing for cold resistance and consistent performance.
MULTICOMP PRO MP001589 Sub-Miniature Fuse Specifications:
- Dimensions: 3mm x 7mm
- Rated Voltage: 250V AC
- Breaking Capacity: 50A
- Operating Temperature: -55°C to +125°C
- Storage Conditions: +10°C to +60°C
- Relative Humidity: up to 75% without dew
- Vibration Resistance: 24 cycles at 15 min each, 10-60Hz at 0.75mm, 60-2000Hz at 10g
- Construction: Ceramic tube with epoxy coating, nickel-plated brass end caps
- Optional Leads: 0.6mm x 26.5mm
- UL 248-14 compliant
- Soldering Temp: <260°C for <5 sec (wave), <350°C for <3 sec (hand)
Buy the Buy Multicomp Pro Quick-Acting Sub-Miniature Fuse Part Number MP001589 Online
Secure your electronic projects with the high-quality quick-acting sub-miniature fuse from Multicomp Pro. Designed for PCB applications, it features a ceramic body, epoxy coating, and nickel plated brass end caps. Rated at 250V AC and 50A, it offers efficient overcurrent protection in flat-panel TVs, LCD monitors, medical devices, lighting systems, and industrial equipment. RoHS compliant, lead-free, halogen-free, tested for cold resistance, ensuring consistent and reliable performance in various environments and critical applications.
Buy Multicomp Pro MP001589 now and experience reliable overcurrent protection with quick-acting precision for your circuit needs.
