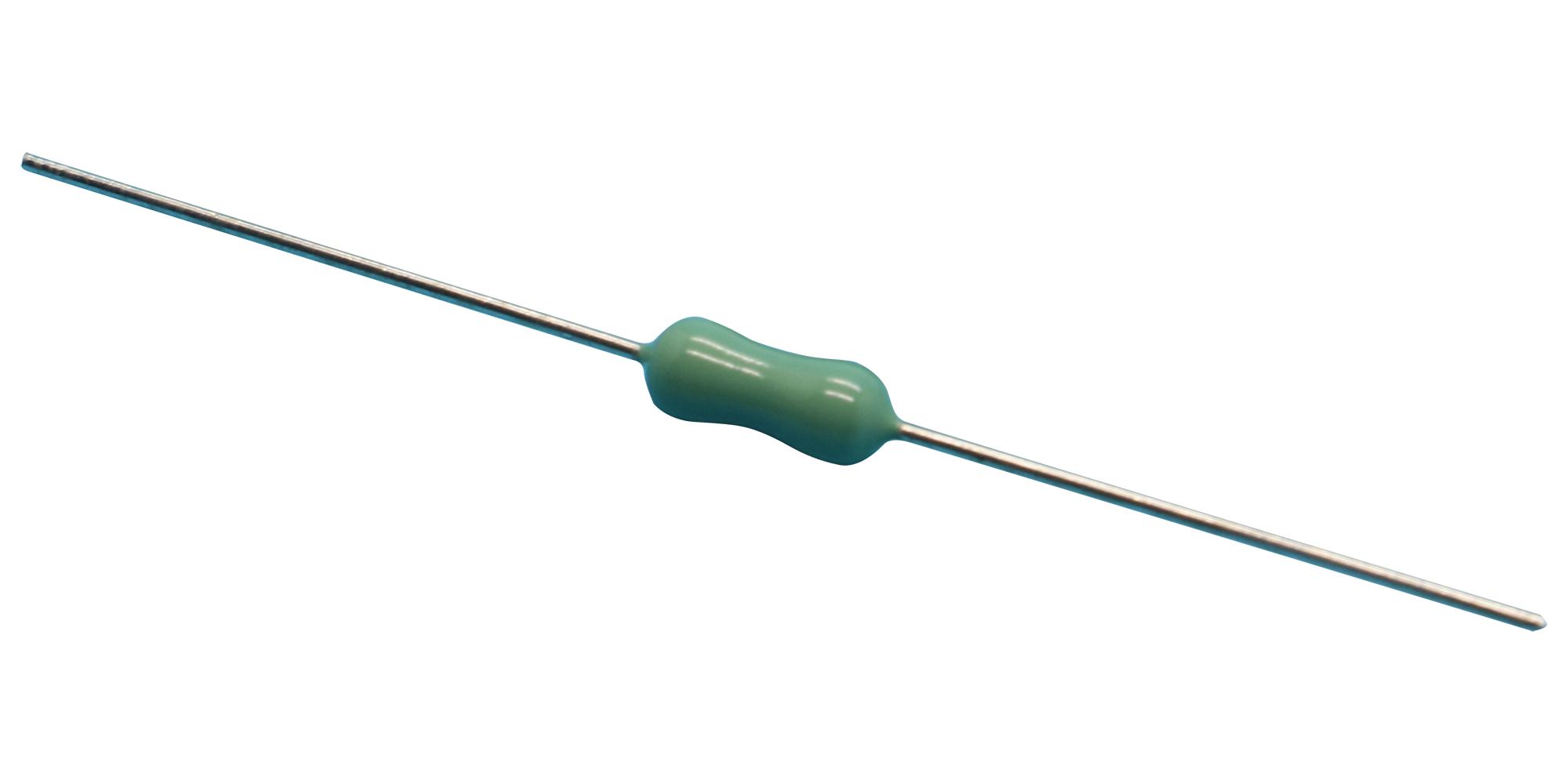

MULTICOMP-PRO MP001590 Miniature Fuse
This quick-acting sub-miniature fuse with a ceramic body provides reliable over-current protection for printed circuit boards in various electronics. Measuring 3mm x 7mm with epoxy encapsulation and nickel-plated brass end caps, it features a 250V AC rating and 50A breaking capacity. Suitable for applications such as flat-panel TVs, medical equipment, LCD monitors, lighting, and industrial devices, it is RoHS compliant, lead-free, halogen-free, and UL 248-14 certified. Designed for high temperature resistance and vibration durability, it ensures safety and reliability in demanding environments.
MULTICOMP-PRO MP001590 Miniature Fuse Specifications:
- Physical dimensions: 3mm x 7mm
- Body material: Ceramic with epoxy coating
- End caps: Nickel-plated brass
- Rated voltage: 250V AC
- Breaking capacity: 50A
- Operating temperature: -55°C to +125°C
- Storage temperature: +10°C to +60°C
- Relative humidity: 75% maximum without dew
- Vibration resistance: 24 cycles at 15 min each, 10-60Hz at 0.75mm amplitude, 60-2000Hz at 10g
- Soldering: Wave soldering at 280°C for less than 5 sec; hand soldering at 350°C for less than 3 sec
- Compliance: RoHS, UL 248-14
- Permissible continuous operating current: 100% at 23°C ambient
- Temperature derating: Based on current and temperature curve
- Electrical characteristics: 375mA (0.2), 500mA (0.48), 1A (0.49), 2A (3.61), 3A (5.9), 7A (166) for respective ratings
Buy the Multicomp PRO MP001590 – Reliable Fast-Acting Fuse for Industrial Applications
Secure your electronic devices with the high-quality quick-acting miniature fuse. Designed for PCB protection, it features a ceramic body, nickel-plated brass end caps, and a 250V rating. Perfect for industrial, medical, and consumer electronics, this RoHS-compliant fuse offers excellent durability and safety. Easy to install with axial leads, it ensures over-current protection with a break capacity of 50A. Ideal for demanding environments, buy online today for reliable performance in your electrical and electronic applications.
Buy Multicomp PRO MP001590 now and experience unmatched reliability and performance in electronic circuit protection.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP001590?
You can click on the BUY or RFQ button to purchase MP001590 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001590?
You can download the MP001590 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP001590?
MULTICOMP-PRO
