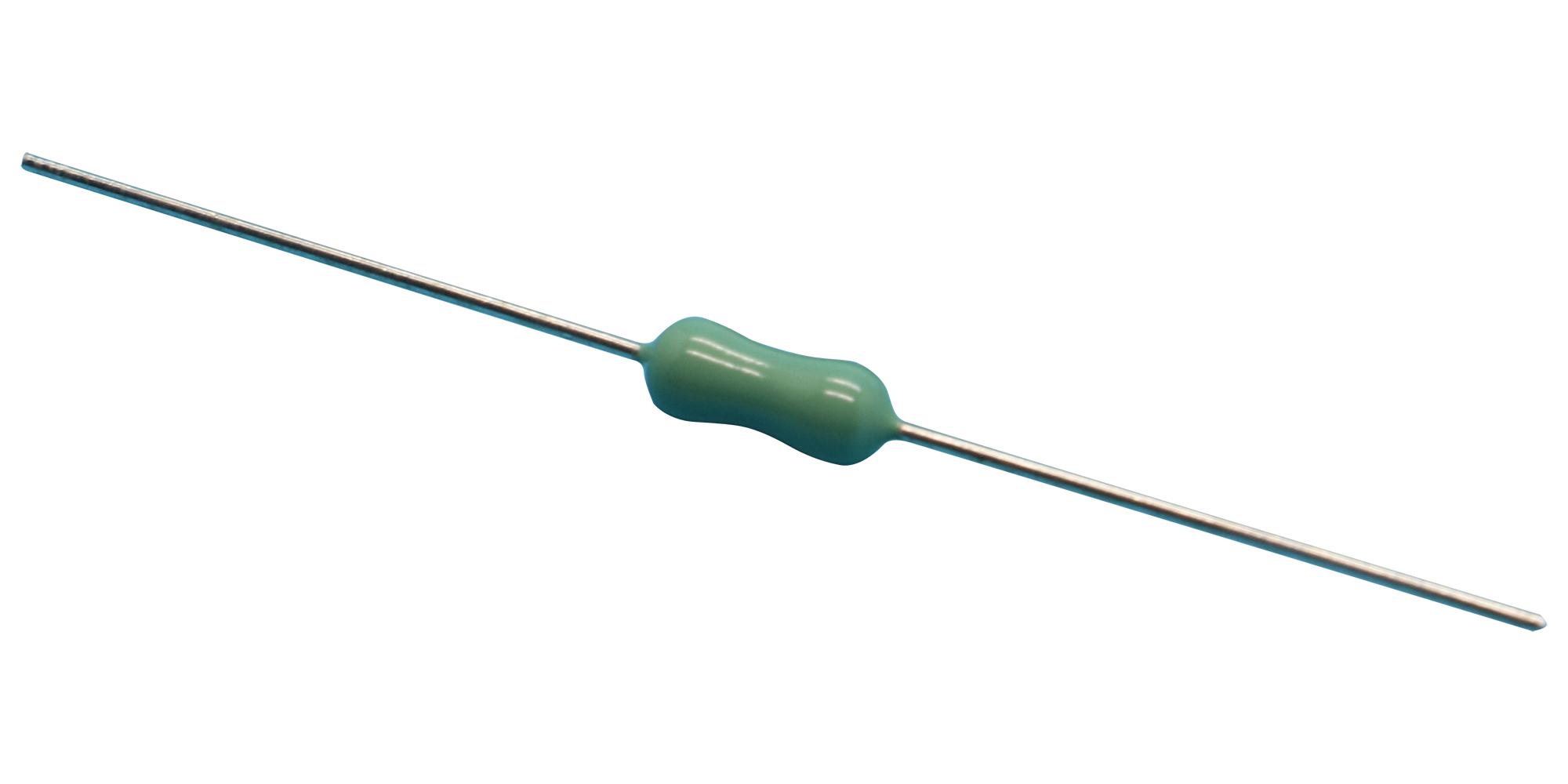

MULTICOMP PRO MP001591 electronic fuse
This quick-acting sub-miniature fuse measures 3mm x 7mm and features a ceramic body with epoxy coating and nickel-plated brass end caps. Rated at 250V AC and 50A capacity, it offers reliable protection against over-currents in applications such as flat-panel TVs, medical devices, LCD monitors, lighting, and industrial equipment. Designed for quick response with low breaking capacity, it is lead-free, halogen-free, UL 248-14 compliant, and tested for cold resistance, ensuring durability and safety in sensitive electronic circuits.
MULTICOMP PRO MP001591 electronic fuse Specifications:
- Dimensions: 3mm x 7mm
- Body Material: Ceramic with epoxy coating
- End Caps: Nickel-plated brass
- Voltage Rating: 250V AC
- Breaking Capacity: 50A
- Operating Temperature: -55°C to +125°C
- Soldering Parameters: Wave soldering at 280°C for less than 5 sec, hand soldering at 350°C for less than 3 sec
- Relative Humidity: Max 75% yearly average without dew
- Vibration Resistance: 24 cycles at 15 min each (10-60Hz, 0.75mm; 60-2000Hz, 10g)
- Soldering Peak: 260°C for 10 sec
- Permissible Continuous Current: 100% at 23°C ambient
Buy the Multicomp MP001591 – Reliable Electronic Fuse for Industrial Applications
Purchase the Multicomp MP001591 quick-acting fuse online today and ensure reliable circuit protection for your electronic devices. Its compact size, high voltage rating, and low breaking capacity make it ideal for a wide range of applications including medical equipment, LCD monitors, lighting, and industrial systems. Designed for quick response and durability, this fuse provides safe over-current protection. Easy to install and tested for cold resistance, it guarantees performance and safety in sensitive electronic circuits. Order now for fast delivery and secure your electronic systems efficiently.
Get Multicomp MP001591 today—built for precision and long-lasting durability in electronic protection.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001591?
You can click on the BUY or RFQ button to purchase MP001591 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001591?
You can download the MP001591 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001591?
MULTICOMP PRO
