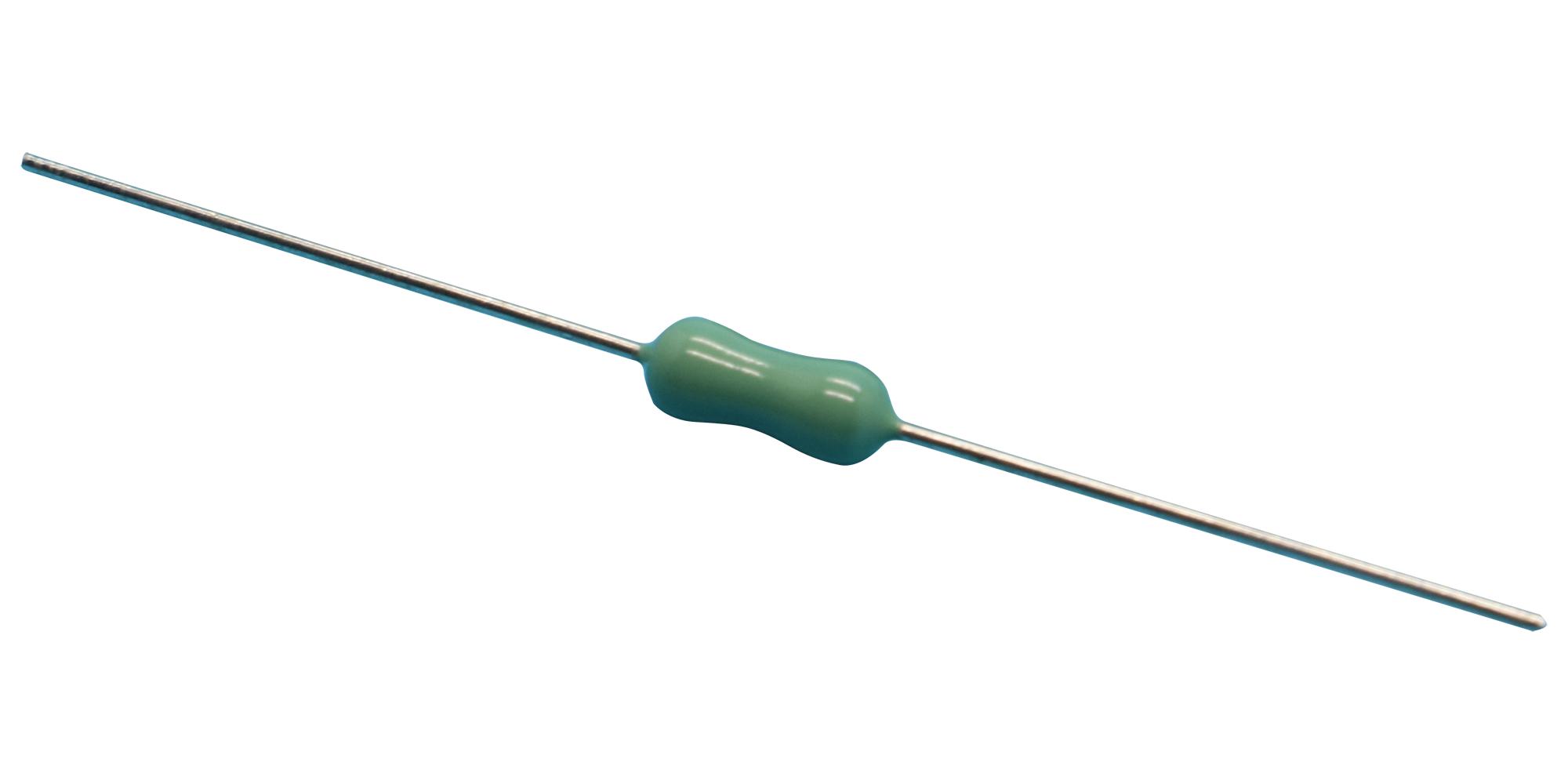

MULTICOMP PRO MP001593 Sub-Miniature Fuse
This product is a quick-acting, sub-miniature fuse designed for circuit protection in various electronic applications. It features a ceramic body with epoxy coating and nickel-plated brass end caps, offering reliable performance with a 250V AC rating and 50A breaking capacity. The fuse measures 3mm x 7mm and is suitable for use in flat-panel TVs, medical equipment, LCD monitors, lighting systems, and industrial machinery. It is RoHS compliant, lead-free, halogen-free, and tested for cold resistance and precise dimensions, ensuring safety and durability in sensitive electronic systems.
MULTICOMP PRO MP001593 Sub-Miniature Fuse Specifications:
- Dimensions: 3mm x 7mm
- Body Material: Ceramic with epoxy coating
- End Caps: Nickel-plated brass
- Voltage Rating: 250V AC
- Breaking Capacity: 50A
- Operating Temperature: -55°C to +125°C
- Storage Conditions: +10°C to +60°C
- Relative Humidity: 75% maximum without dew
- Vibration Resistance: 24 cycles at 15 min each, 10-60Hz at 0.75mm amplitude, 60-2000Hz at 10g acceleration
- Soldering Parameters: Wave soldering at 280°C for <5 sec, hand soldering at 350°C for <3 sec
- RoHS Compliant: Yes
- Lead-free and Halogen-free: Yes
Buy the Multicomp Pro Series Quick-Acting Sub-Miniature Fuse: MP001593
Purchase the Multicomp Pro sub-miniature fuse today for superior circuit protection in compact electronics. With a ceramic body, epoxy coating, nickel-plated brass end caps, and a 250V AC rating, this fuse ensures safety and durability. Its quick-acting feature and 50A capacity make it ideal for applications such as LCD monitors, medical equipment, lighting systems, and industrial machinery. RoHS compliant, lead-free, and rigorously tested, this fuse guarantees reliable performance, long-lasting durability, and seamless integration into your electronic projects.
Get Multicomp Pro MP001593 today—designed for reliable circuit protection in compact electronic devices.
