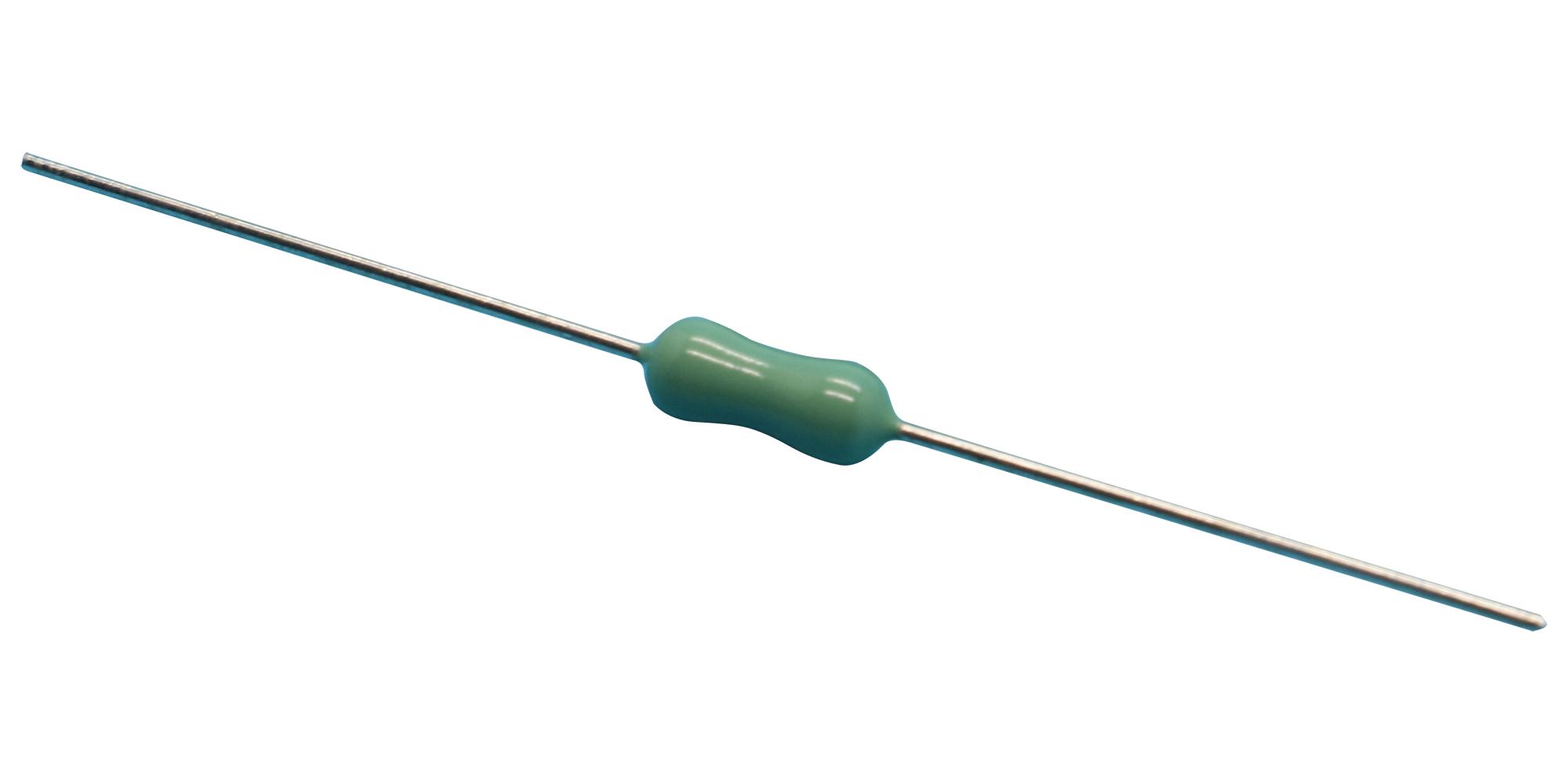

MULTICOMP PRO MP001595 Sub-Miniature Fuse
This is a quick-acting, sub-miniature fuse designed for use in printed circuit boards and various electronic applications. The 3mm x 7mm ceramic body fuse features electroplated brass end caps and optional axial leads measuring 0.6mm x 26.5mm. With a rated voltage of 250V AC and a 50A breaking capacity, it provides reliable protection against over-currents in medical equipment, LCD monitors, lighting, and industrial devices. Fully tested for cold resistance, it supports smooth operation under harsh temperature conditions from -55°C to +125°C, with excellent vibration resistance.
MULTICOMP PRO MP001595 Sub-Miniature Fuse Specifications:
- Dimensions: 3mm x 7mm
- Body Material: Ceramic
- End Caps: Nickel-plated brass
- Rated Voltage: 250V AC
- Breaking Capacity: 50A
- Operating Temperature: -55°C to +125°C
- Storage Temperature: +10°C to +60°C
- Relative Humidity: Up to 75%, max 30 days at 95%
- Vibration Resistance: 24 cycles at 15 min, 10-60Hz at 0.75mm, 60-2000Hz at 10g
- Lead Options: Optional axial leads 0.6mm x 26.5mm
- Compliance: UL 248-14, RoHS, Halogen-free
- Soldering Parameters: Wave soldering at 280°C < 5 sec, Hand soldering at 350°C < 3 sec
- Part Number: MP001595
Buy the Multicomp Series Sub-Miniature Fuse: MP001595
Experience reliable circuit protection with the high-quality multicomp series sub-miniature fuse MP001595. Designed for PCB applications, this quick-acting fuse features a ceramic body, nickel-plated brass end caps, and a rated voltage of 250V AC with a 50A breaking capacity. Its compact 3mm x 7mm size ensures easy integration into electronic systems like LCD monitors, medical devices, lighting, and industrial equipment. Fully tested for cold resistance, it withstands temperature extremes from -55°C to +125°C and offers excellent vibration resistance, providing dependable over-current protection for sensitive electronic components.
Get multicomp series MP001595 today—built for precision and long-lasting durability in electronic protection.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001595?
You can click on the BUY or RFQ button to purchase MP001595 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001595?
You can download the MP001595 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001595?
MULTICOMP PRO
