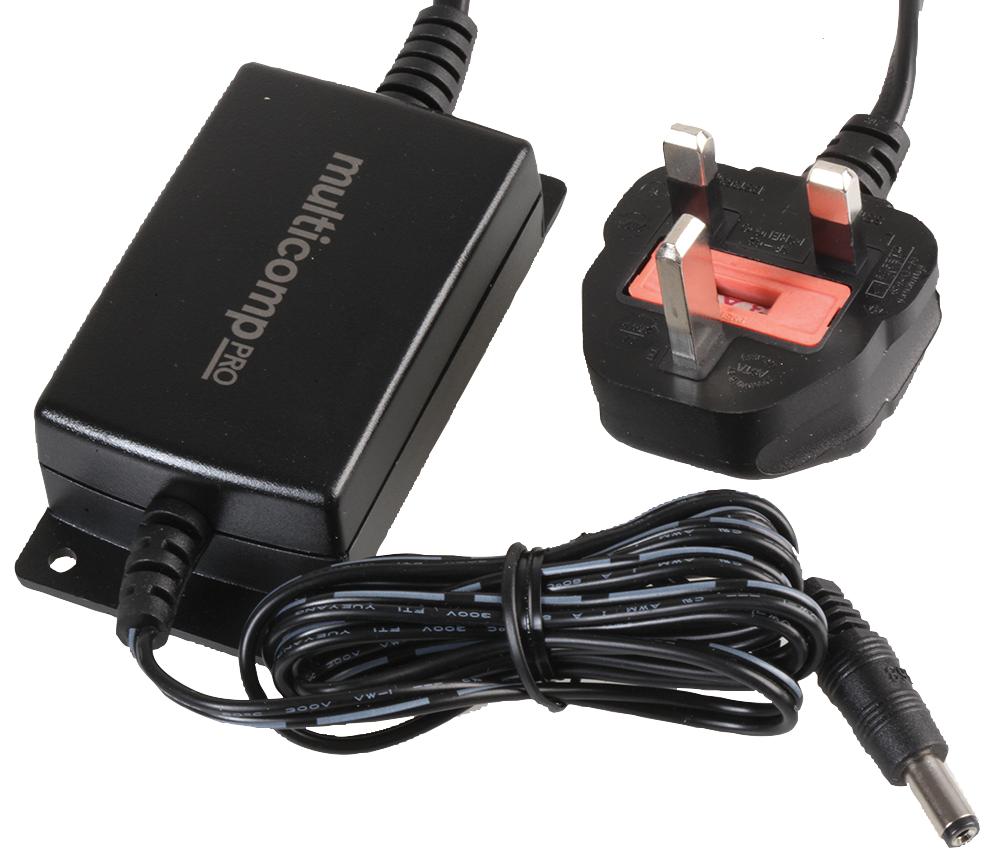

MULTICOMP PRO MP001984 Power Supply
This 12W AC/DC installation power supply offers a reliable, compact solution for indoor applications such as CCTV, access control, and building management systems. It features a universal full-range AC input (90-264V), a fixed UK mains lead, and a single DC output adjustable between 5V and 24V. With protections against overvoltage, overload, and short circuits, it ensures safe operation. The power supply boasts an efficiency of at least 83.26%, a case size of 93.7mm by 47.5mm by 26.5mm, and a weight of 250g. It’s RoHS compliant and suitable for temperatures from 0°C to 40°C.
MULTICOMP PRO MP001984 Power Supply Specifications:
- Voltage: 12V DC
- Current Max: 1A
- Power: 12W
- Line Regulation: 45%
- Ripple & Noise: 150mV
- Protections: Over Voltage, Over Load, Short Circuit
- Case Size: 93.7mm x 47.5mm x 26.5mm
- Weight: 250g
- DC Cord: 1.5m
- DC Plug: Straight 2.1 C+ve
- Rated Input Voltage: 100 to 240V AC
- Full Input Voltage Range: 90 to 264V AC
- Full Frequency Range: 47Hz to 63Hz
- Efficiency: 83.26% Min.
- Input Current RMS Max: 500mA
- Inrush Current: No Damage
- Leakage Current: <0.25mA
- AC Mains Lead: 1.8m UK plug
- Hi-Pot: 3000V AC 10mA 1Min.
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -10°C to +70°C
- Operating Humidity: 20% to 80%
- Storage Humidity: 10% to 90%
- Certifications: GS & CE, FCC Class B, CE & VCCI-II
- MTBF: 50K
Buy the Multicomp Series Power Supply: 12W 12V DC 1A MP001984
Order the Multicomp 12W 12V DC power supply MP001984 online today to ensure efficient, safe, and reliable power for indoor CCTV, access control, and building management applications. This compact power supply features a universal full-range AC input, UK plug, and is RoHS compliant, providing protection against overvoltage, overload, and short circuits. Perfect for installations requiring a stable 12V output with high efficiency and durability, making it an excellent choice for professional and DIY projects alike.
Buy Multicomp 12W Power Supply MP001984 now and experience unmatched reliability and performance for your indoor electronic systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001984?
You can click on the BUY or RFQ button to purchase MP001984 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001984?
You can download the MP001984 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001984?
MULTICOMP PRO
