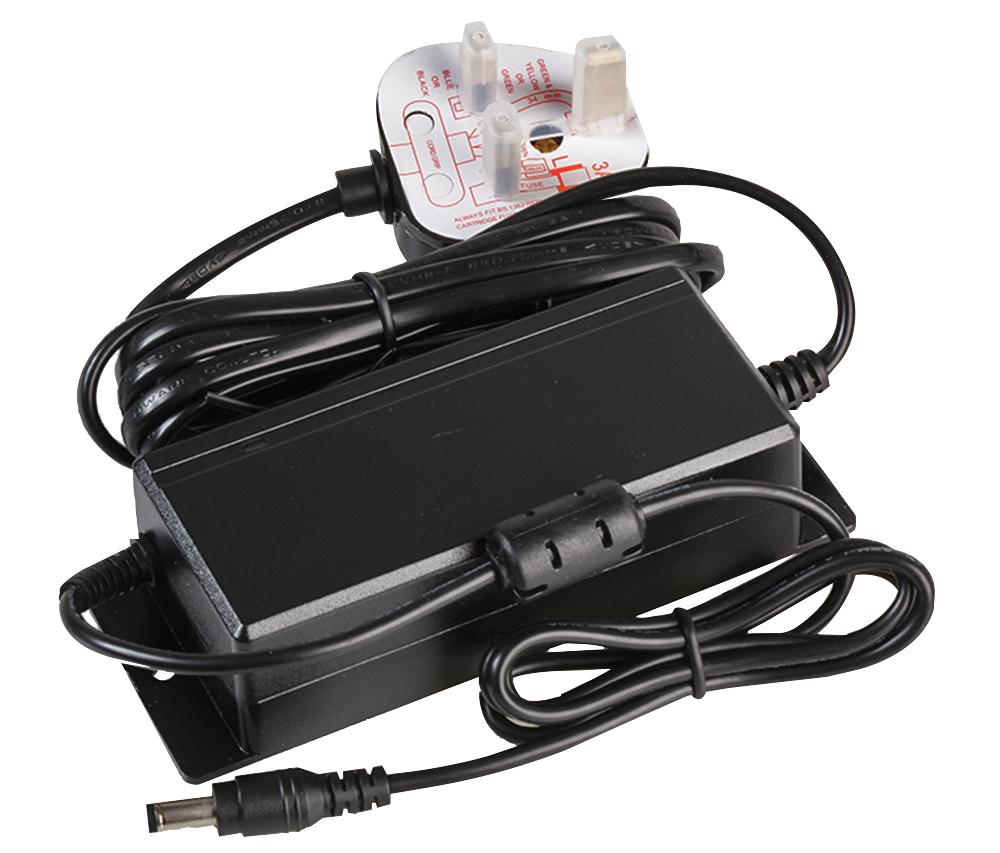

MULTICOMP-PRO MP001988 Power Supply
The 42W AC/DC installation power supply provides a reliable 24V DC output with a maximum current of 1.75A, suitable for indoor applications such as CCTV, access control, and building management systems. Its compact, low-profile design includes a fixed UK mains lead, full-range universal input, and robust protections including overcurrent and short-circuit features. This Class II power supply operates efficiently at 87.66%, with a durable case size of 141.4mm x 52.1mm x 33.9mm, making it a dependable choice for industrial and building automation needs.
MULTICOMP-PRO MP001988 Power Supply Specifications:
- Voltage: 24V DC
- Current Max: 1.754A
- Power: 42W
- Line Regulation: 41%
- Ripple & Noise: 200mV p-p
- Protections: Over Current, Short Circuit
- Case Size: 141.4mm (L) x 52.1mm (W) x 33.9mm (H)
- Weight: 420g
- DC Cord: 41cm
- DC Plug: 2.1 x 5.5 x 12 C+ve - Straight
- Input Voltage: 100V AC to 240V AC
- Full Input Voltage Range: 90V AC to 264V AC
- Full Frequency Range: 47Hz to 63Hz
- Efficiency: 87.66%
- Input Current RMS Max: 1.5A
- Inrush Current: 40A max @ 264V AC
- Leakage Current: < 0.25mA
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Operating Humidity: 10% to 90%
- Safety Approvals: CE
- EMI Standards: EN55022, EN61000-3-2
- MTBF: 50,000 hours
Buy the Multicomp 42W Power Supply – Reliable 24V DC for Industrial Applications
Purchase the multicomp 42W Power Supply online now and ensure your indoor automation, CCTV, and access control systems operate smoothly. With a compact design, universal input range from 90V to 264V AC, and efficient 87.66% performance, this dependable power supply provides 24V DC output at 1.75A, making it ideal for various industrial and building management projects. Its robust protections, CE approval, and long MTBF guarantee reliable, safe operation in demanding environments. Don't wait—order now for proven quality and quick delivery.
Order your multicomp series MP001988 42W 24V DC power supply today and give your projects the dependable power they deserve.
