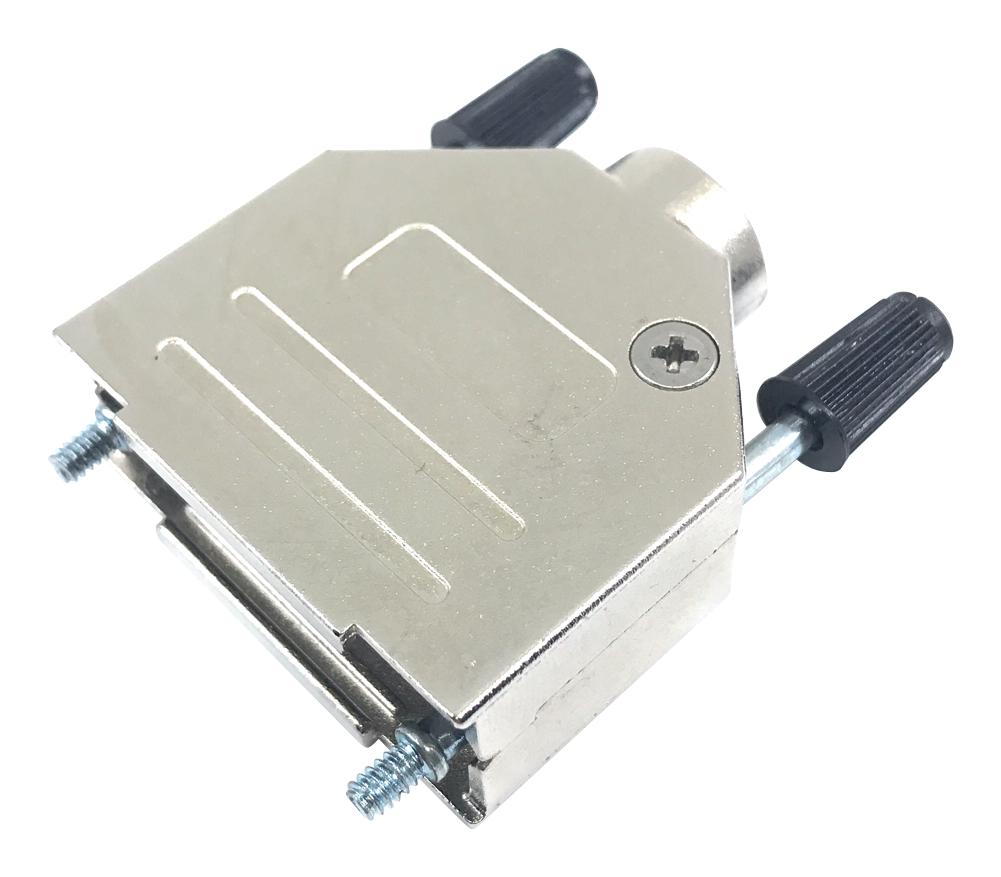

MULTICOMP PRO MP002010 D-Sub Connector
This product consists of robust D-Sub connectors with backshells, designed to minimize electromagnetic and RF interference while offering reliable cable strain relief. Suitable for various sizes from 9 to 37, these connectors accept round foil and braided cables, feature long jackscrews with UNC 4-40 threading, and meet standards like VDE 0871 and FCC 20780. They are constructed from zinc, nickel-plated housings with polycarbonate backshells capable of withstanding temperatures from -40°C to 120°C, ensuring durability in harsh environments. Insulators are UL94 V-0 rated PBT, and contact pins are copper alloy with gold over nickel plating for optimal conductivity and corrosion resistance. Designed for easy assembly, these connectors provide attenuation of over 40 dB between 30 MHz and 1 GHz, making them ideal for reliable signal transmission.
MULTICOMP PRO MP002010 D-Sub Connector Specifications:
- Material: Zinc, Ni-plated, Polycarbonate backshell, PBT insulator, Steel shell with tin-plating, Copper alloy contact pins with gold over nickel plating
- Temperature Range: -40°C to 120°C for backshell, -55°C to +105°C for connector
- Cable Diameter: <17mm, 23mm to 13mm strain relief
- Locking Screws: UNC 4-40 long jackscrews, black color, Taptite thread forming
- Attenuation Factor: > 40 dB between 30 MHz and 1 GHz
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 1 kV for 1 minute
- Contact Density: Class 3, minimum 100 inserts
- Connection Type: Straight female/male, various sizes including DE-9, DA-15, DB-25, DC-37
- Compliance: VDE 0871, FCC 20780, 89/336/EU, RoHS compliant
Buy the Buy MultiComp D-Sub Connectors Part Number MP002010 Online
Purchase the high-performance D-Sub connector with backshell from MultiComp today. Designed for EMI reduction, durability at temperatures up to 120°C, and easy installation, this connector ensures reliable signal transmission for industrial, communication, and electronic applications. The product offers excellent attenuation, corrosion-resistant contact plating, and certified standards compliance, making it ideal for professional use. Secure your connection needs now by buying online and enjoy fast delivery and dependable performance for your technical projects.
Buy MultiComp MP002010 now and experience unmatched reliability and high-quality signal integrity in your electronic assemblies.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002010?
You can click on the BUY or RFQ button to purchase MP002010 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002010?
You can download the MP002010 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002010?
MULTICOMP PRO
