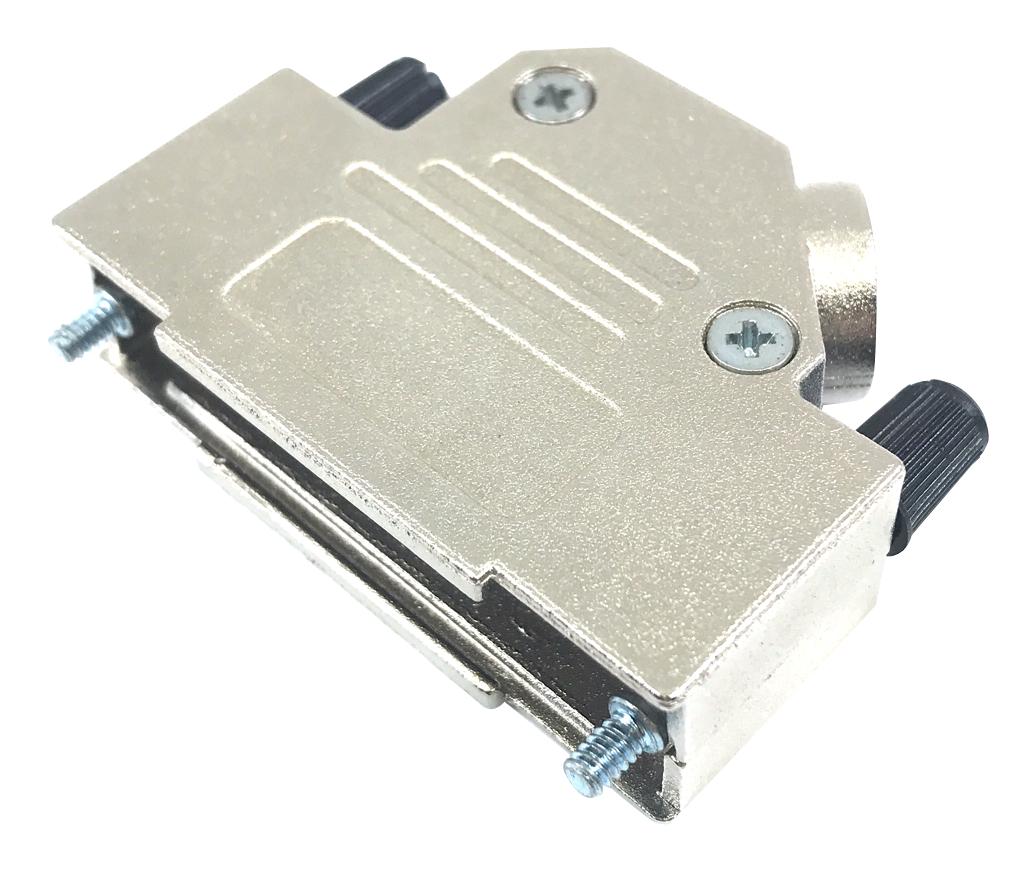

MULTICOMP PRO MP002012 D-Sub Connector
This angled D-Sub connector with backshell is made of zinc, nickel-plated, and features long jackscrews with UNC 4-40 threads for secure fastening. Suitable for minimizing electromagnetic interference and RF signals, it accepts round foil and braided cables, with a cable diameter range of 13 to 23 mm. The insulator is PBT, UL94 V-0 rated, and the shell is steel, tin-plated. The contact pins are copper alloy with gold over nickel plating, capable of withstanding temperatures from -55°C to +105°C. It provides > 40dB attenuation between 30 MHz and 1GHz and includes locking screws, assembly screws, and angled cable outlets for reliable connections.
MULTICOMP PRO MP002012 D-Sub Connector Specifications:
- Material: Zinc, Ni-plated
- Temperature Range: -55°C to +105°C
- Insulator: PBT, UL94 V-0
- Shell: Steel, Tin-plated
- Contact Pins: Copper alloy with Gold over Nickel plating
- Contact Resistance: > 1000MO
- Withstand Voltage: 1kV for 1 min
- Cable Diameter: 13–23 mm
- Locking Screws: Long jackscrews UNC 4-40
- Assembly Screws: Taptite thread forming
- Cable Outlet: Angled
- Attenuation Factor: > 40dB between 30 MHz and 1GHz
Buy the Buy multicomp Angled D-Sub Connector Part Number MP002012 Online
Enhance your electronic assemblies with the multicomp angled D-Sub connector featuring zinc backshell and long jackscrews for secure, reliable connections. Designed for minimal electromagnetic interference, it supports round foil and braided cables with diameters between 13 and 23 mm. Made of durable zinc and steel, with UL94 V-0 rated insulator and gold-plated contacts, this connector withstands temperatures from -55°C to +105°C. Its angled outlet and locking screws ensure stability and easy installation, ideal for industrial, telecom, and automation applications.
Get multicomp angled D-Sub connector MP002012 today—built for secure, interference-free connections with durable zinc backshell and long jackscrews.
