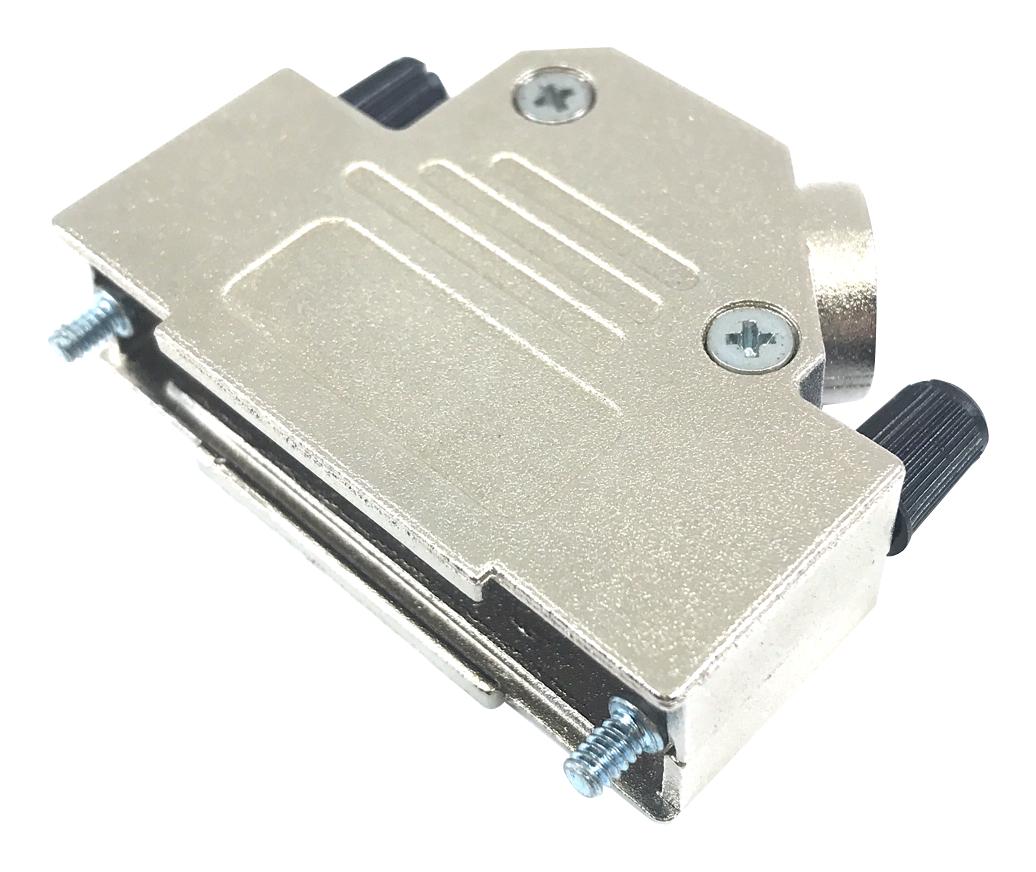

MULTICOMP PRO MP002013 D-Sub Connector
This angled D-Sub connector with backshell is designed for reliable cable connections in electronic and industrial applications. Made with zinc, nickel-plated material, it provides excellent electromagnetic and RF interference minimization, ensuring signal integrity. Suitable for round foil and braided cables, it accepts cable diameters from 13 to 23 mm. Features long UNC 4-40 thread jackscrews for secure attachment, high insulator resistance over 1000MO, and withstands temperatures from -55°C to +105°C. Its robust construction ensures durability and ease of assembly in demanding environments.
MULTICOMP PRO MP002013 D-Sub Connector Specifications:
- Backshell Material: Zinc, Ni-plated
- Temperature Range: -55°C to +105°C
- Cable Strain Relief: Polycarbonate UL94 VO
- Cable Diameter: 13 to 23 mm
- Locking Screws: Long jackscrews UNC 4-40
- Assembly Screws: Taptite thread forming
- Cable Outlet: Angled
- Attenuation Factor: > 40dB between 30 MHz and 1GHz
- Insulator Material: PBT, UL94 V-0
- Shell Material: Steel, Tin-plated
- Contact Pins: Copper alloy
- Contact Plating: Selective Gold over Nickel
- Insulator Resistance: > 1000MO
- Withstand Voltage: 1kV for 1 min
- Certification Approvals: VDE 0871, FCC 20780, 89/336/EU
Buy the Multicomp Series D-Sub Interference-Resistant Connector: MP002013
Experience reliable and durable connection solutions with the multi-purpose D-Sub connector featuring a zinc backshell and angled design. Suitable for various cable types, it minimizes electromagnetic and RF interference, ensuring signal clarity. Designed to withstand temperatures from -55°C to +105°C, it offers easy assembly with long UNC 4-40 jackscrews and Taptite screws. Its high insulator resistance and robust steel shell guarantee long-lasting performance in demanding industrial and electronic applications. Purchase online now for dependable connections.
Get Multicomp Series D-Sub Connector with Backshell MP002013 today—built for secure, interference-free connections in industrial environments.
