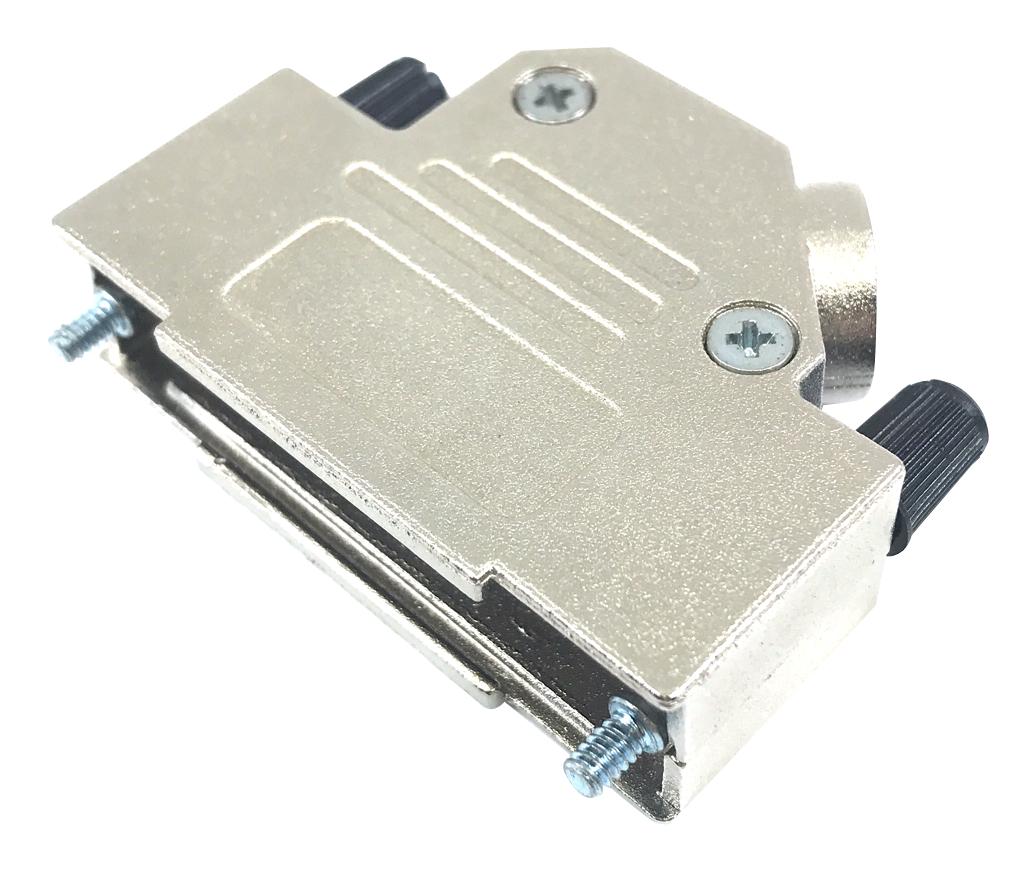

MULTICOMP PRO MP002015 D-Sub Connector
The angled D-Sub connector with backshell offers reliable electrical connections with interference reduction and easy assembly. Manufactured with zinc, nickel-plated shells, these connectors support sizes 9, 15, 25, and 37, with long UNC 4-40 jackscrews for secure fastening. Compatible with round foil and braided cables, they meet VDE 0871, FCC 20780, and 89/336/EU standards. The robust design features polycarbonate cable strain reliefs, copper alloy contact pins with gold over nickel plating, and insulation resistance over 1000 MΩ, ensuring durability in diverse applications from -55°C to +105°C.
MULTICOMP PRO MP002015 D-Sub Connector Specifications:
- Shell Material: Steel, Tin-plated
- Backshell Material: Zinc, Ni-plated
- Temperature Range: -55°C to +105°C (connector), -40°C to 120°C (backshell)
- Cable Diameter: 13-23 mm (backshell)
- Locking Screws: Long jackscrews UNC 4-40
- Assembly Screws: Taptite thread forming
- Cable Outlet: Angled
- Attenuation Factor: > 40dB between 30 MHz and 1GHz
- Insulator: PBT, UL94 V-0
- Contact Pins: Copper alloy with Gold over Nickel plating
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 2.1 kV for 1 min
- Rated for Sizes: 9, 15, 25, 37
- Approval Standards: VDE 0871, FCC 20780, 89/336/EU
Buy the Buy multicomp D-Sub Connector Part Number MP002015 Online
Order the multicomp D-Sub connector with backshell MP002015 online today to ensure dependable, interference-free connections in your electronic systems. Featuring zinc, Ni-plated shells, and long UNC 4-40 jackscrews, this connector supports sizes 25 with angled cable outlets. Its robust construction includes a polycarbonate strain relief, copper alloy pins gold-plated over nickel, and insulation resistance exceeding 1000 MΩ. Designed for operating temperatures from -55°C to +105°C, it meets international safety standards and provides secure, easy-to-assemble connections suitable for a variety of industrial and technical applications.
Buy multicomp D-Sub Connector MP002015 now and experience unmatched reliability and high-performance interference reduction in your electronic connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002015?
You can click on the BUY or RFQ button to purchase MP002015 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002015?
You can download the MP002015 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002015?
MULTICOMP PRO
