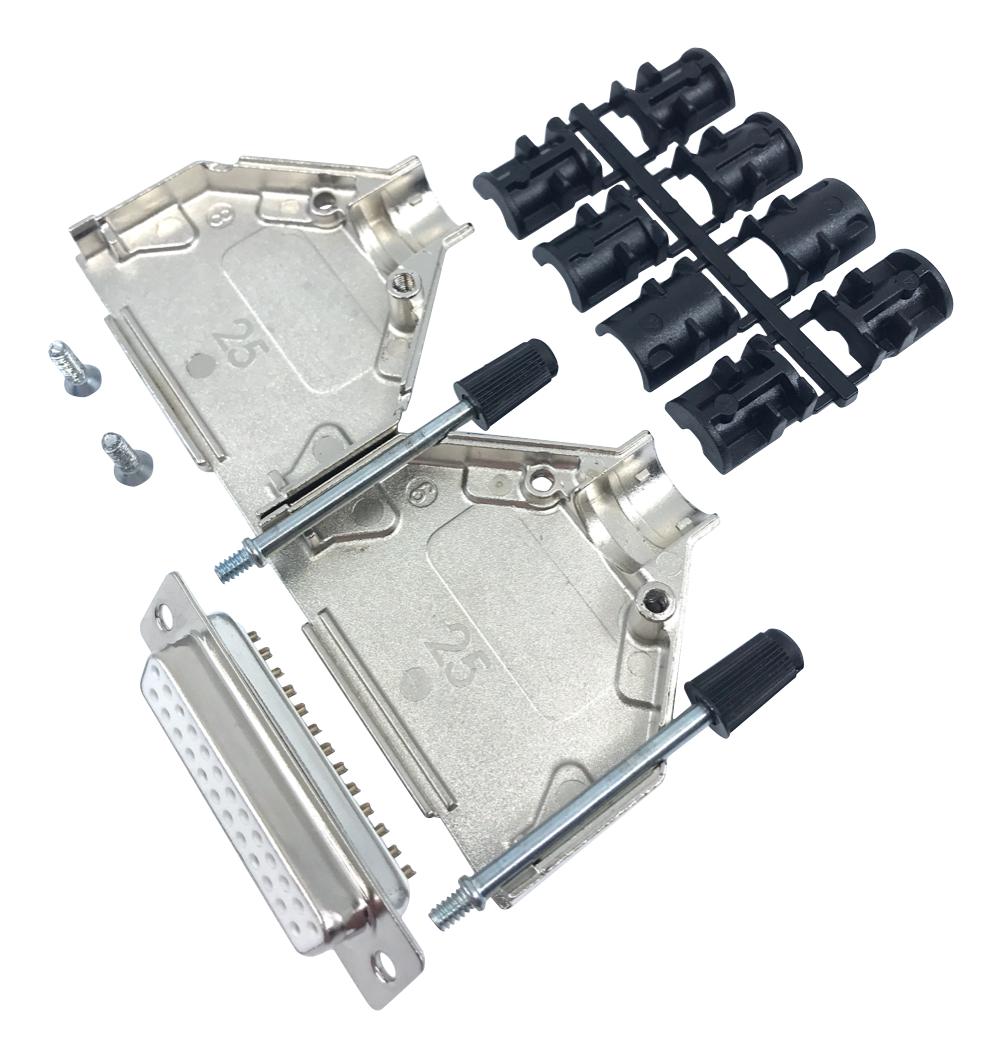

MULTICOMP PRO MP002024 D-Sub Connector with Backshell
This D-Sub connector with backshell is zinc, Ni-plated, designed for reliable electromagnetic and RF interference minimization. It supports round foil and braided cables, features long UNC 4-40 jackscrews, and withstands temperatures from -40°C up to 120°C. The shell is steel, tin-plated, with a polycarbonate backshell that offers strain relief for cables with diameters from <17mm to 23mm. It provides attenuation above 40 dB between 30 MHz and 1 GHz, with insulator resistance >1000 MΩ and withstand voltage of 1 kV for 1 minute, ensuring robust performance in demanding environments.
MULTICOMP PRO MP002024 D-Sub Connector with Backshell Specifications:
- Backshell Material: Zinc, Ni-plated
- Temperature Range: -40°C to 120°C
- Cable Strain Relief: Polycarbonate, UL94 VO
- Cable Diameter: <17mm to 23mm
- Locking Screws: Long jackscrews UNC 4-40, Black
- Attenuation Factor: > 40 dB between 30 MHz and 1 GHz
- Insulator: PBT, UL94 V-0
- Shell Material: Steel, Tin-plated
- Contact Material: Copper alloy
- Contact Plating: Selective gold over nickel
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 1 kV for 1 min
Buy the Multicomp Series D-Sub Connector: MP002024
Order the Multicomp D-Sub Connector with Backshell MP002024 online today for reliable performance in industrial applications. Designed with zinc, nickel-plated metal and a polycarbonate strain relief, this connector offers excellent RF shielding and high-temperature tolerance. Its long UNC 4-40 jackscrews ensure secure connections, supporting cable diameters from less than 17mm to 23mm. With an attenuation of over 40 dB between 30 MHz and 1 GHz, it guarantees minimal interference and durability, making it the perfect choice for demanding electronic systems.
Get Multicomp Series MP002024 today—built for electromagnetic shielding and high-temperature resilience.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002024?
You can click on the BUY or RFQ button to purchase MP002024 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002024?
You can download the MP002024 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002024?
MULTICOMP PRO
