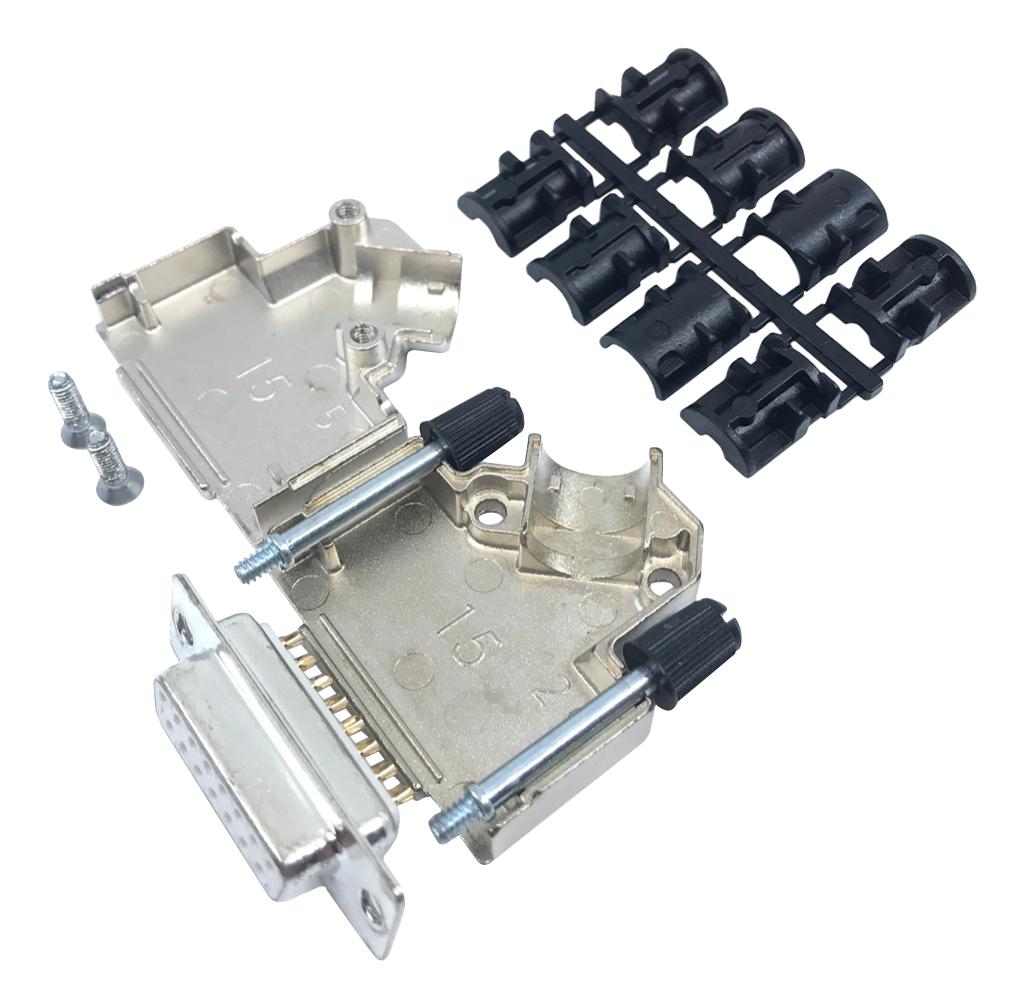

MULTICOMP PRO MP002034 D-Sub Connector
This high-quality angled D-Sub connector with backshell features zinc, nickel-plated material, suitable for minimizing electromagnetic interference and RF sources. It supports round foil and braided cable types, with long jackscrews using UNC 4-40 threads for secure attachment. Designed for reliable performance, it withstands temperatures from -55°C to +105°C, with insulator resistance exceeding 1000MO and withstand voltage of 1kV. The connector is compliant with UL, VDE, and FCC standards, offering easy assembly without special tools, making it ideal for compact electronic or industrial applications.
MULTICOMP PRO MP002034 D-Sub Connector Specifications:
- Material: Zinc, Ni-plated
- Temperature Range: -55°C to +105°C
- Insulator Resistance: > 1000MO
- Withstand Voltage: 1kV for 1 min
- Cable Diameter: 13 to 23 mm
- Locking Screws: Long jackscrews UNC 4-40
- Assembly Screws: Taptite thread forming
- Cable Outlet: Angled
- Attenuation Factor: > 40dB between 30 MHz and 1GHz
- Insulator Material: PBT, UL94 V-0
- Shell Material: Steel, Tin-plated
Buy the Multicomp Series D-Sub Connectors: MP002034
Order the Multicomp series D-Sub connector MP002034 online today for exceptional quality and durability. Featuring zinc alloy construction and angled backshell for easy installation, it ensures high performance across temperature ranges from -55°C to +105°C. Suitable for RF and electromagnetic interference minimization, its robust design includes long jackscrews with UNC 4-40 threads, making it ideal for tight spaces and professional electronics, industrial, or communication equipment. Secure your connection with ease and confidence today.
Buy Multicomp series D-Sub connectors MP002034 now and experience unmatched reliability and performance in electronic and industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002034?
You can click on the BUY or RFQ button to purchase MP002034 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002034?
You can download the MP002034 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002034?
MULTICOMP PRO
