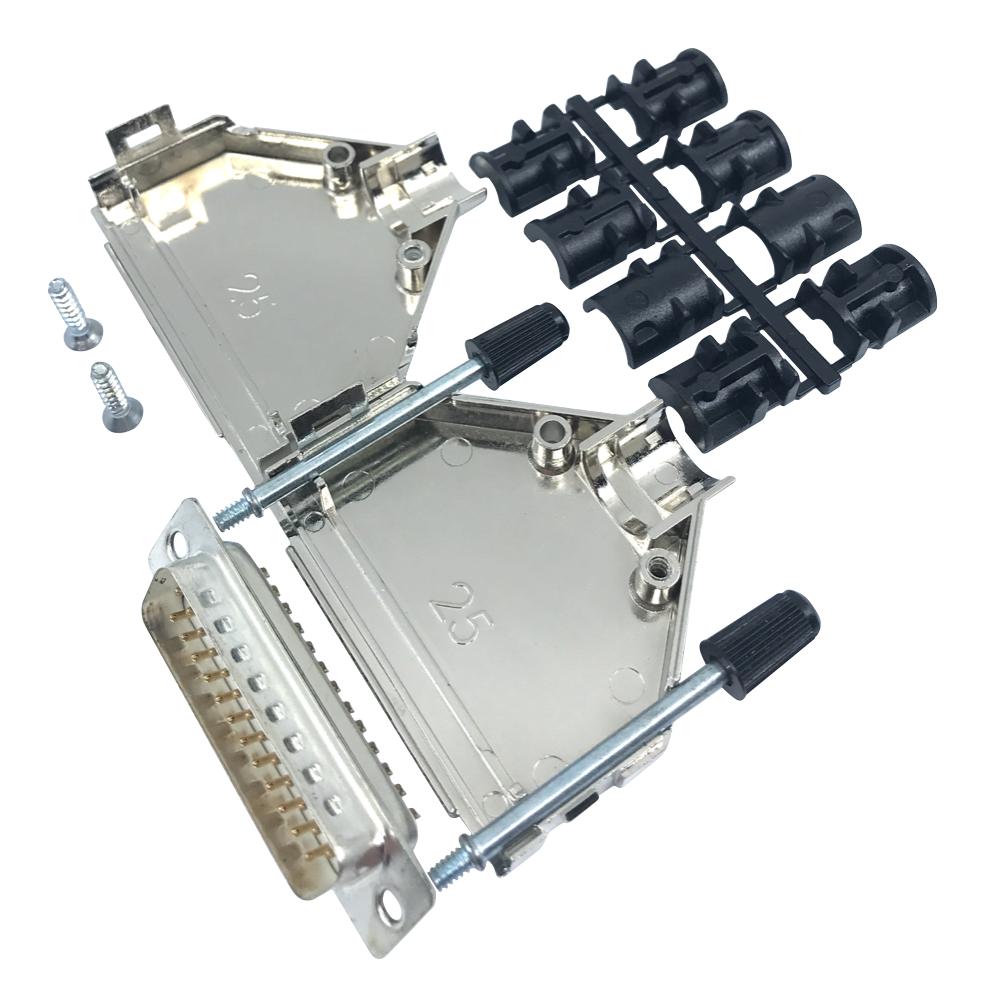

MULTICOMP PRO MP002045 D-Sub Connector
This product is a D-Sub connector with a backshell, designed to provide secure and electromagnetic interference (EMI) protection for industrial and electronic applications. Made from durable materials including nickel-plated steel and UL94 V-0 insulators, it supports a wide temperature range from -55°C to +105°C. The connector accepts round foil and braided cables of 3mm to 13mm diameter, with long UNC 4-40 jackscrews for reliable fastening. Suitable for various industry standards, it ensures low attenuation, high insulation resistance, and rugged construction for long-lasting performance.
MULTICOMP PRO MP002045 D-Sub Connector Specifications:
- Material: ABS, Ni-plated
- Temperature Range: -40°C to 105°C
- Cable Strain Relief: Polycarbonate, UL94 VO
- Cable Diameter: 3mm to 13mm
- Locking Screws: Long jackscrews UNC 4-40
- Jackscrew Colour: Black
- Assembly Screws: Self tapping
- Cable Outlet: Straight
- Attenuation Factor: > 40 dB between 30 MHz and 1GHz
- Insulator: PBT, UL94 V-0
- Shell: Steel, Tin-plated
- Contact Pins: Copper alloy
- Contact Plating: Selective Gold over Nickel
- Insulator Resistance: > 1000M
- Withstand Voltage: 2.1kV for 1 min
- Stamped Contacts: Class 3, 100 inserts minimum
Buy the Multicomp MP002045 – Reliable D-Sub Connector with Backshell for Industrial Applications
Order the D-Sub connector with backshell online today to ensure your electronic assemblies are protected against electromagnetic interference. Featuring durable nickel-plated steel shells and UL94 V-0 insulators, this connector supports temperatures from -55°C to +105°C. Its straight cable outlet and long UNC 4-40 jackscrews allow for quick, secure assembly with no special tools needed. Suitable for various cable diameters, it provides excellent insulation resistance (>1000M), low attenuation (>40 dB), and reliable performance for industrial and professional use. Enhance your projects with this high-quality, RoHS-compliant connector today.
Get Multicomp MP002045 today—built for precision, EMI shielding, and long-lasting durability in industrial electronic systems.
