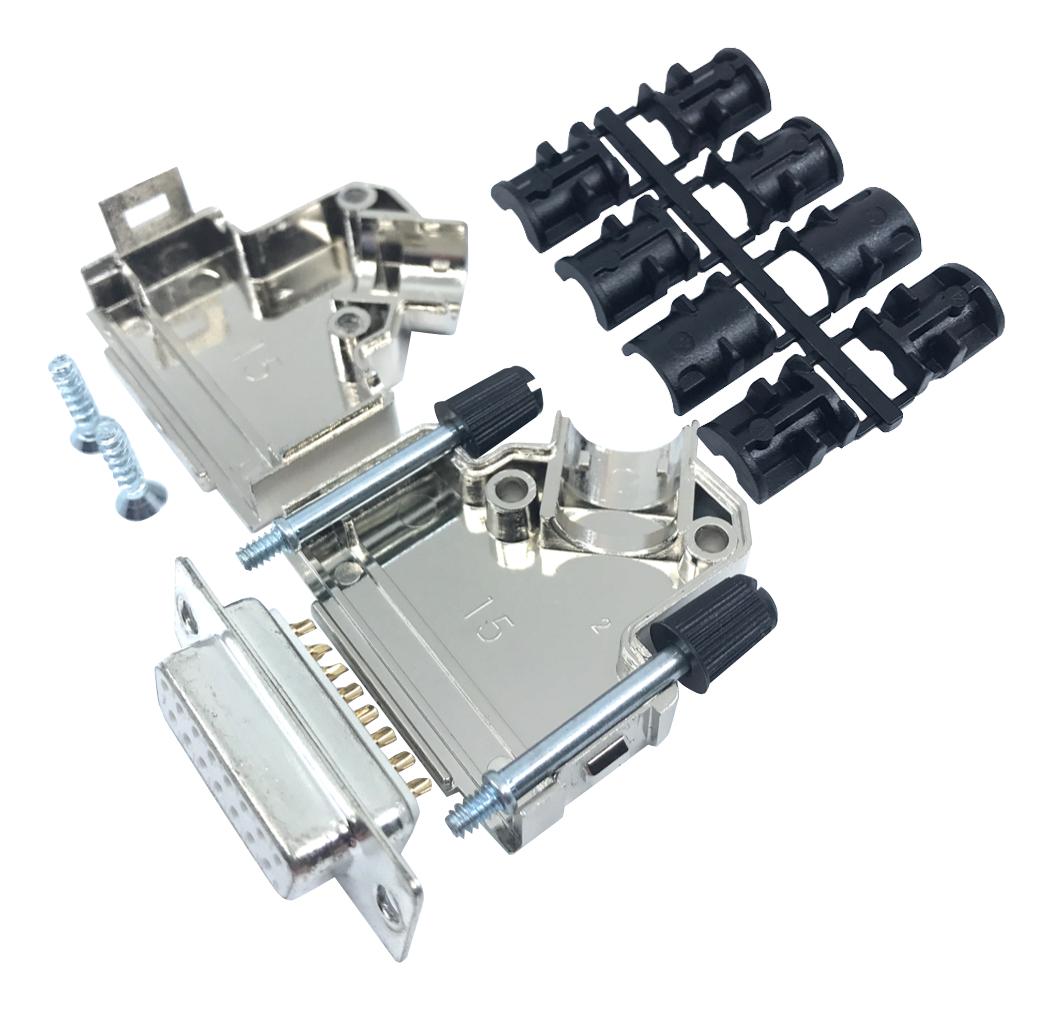

MULTICOMP PRO MP002054 D-Sub Connector with Backshell
The D-Sub connector with backshell offers a reliable connection solution for various electronic systems, available in sizes 9, 15, 25, and 37. Made from ABS and nickel-plated steel, it provides excellent electromagnetic and RF interference minimization, supporting round foil and braided cables. The angled cable outlet facilitates flexible installation, while long UNC 4-40 jackscrews ensure secure fastening. Its operating temperature spans from -40°C to +105°C, with a cable diameter range of 3mm to 13mm. Approved standards include VDE 0871 and FCC 20780, making it ideal for high-performance electronic and industrial applications.
MULTICOMP PRO MP002054 D-Sub Connector with Backshell Specifications:
- Material: ABS, Ni-plated steel
- Temperature Range: -40°C to +105°C
- Cable Strain Relief: Polycarbonate, UL94 VO
- Cable Diameter: 3mm to 13mm
- Locking Screws: Long UNC 4-40 thread, Black color
- Attenuation Factor: > 40 dB between 30 MHz and 1GHz
- Insulator: PBT, UL94 V-0
- Shell: Steel, Tin-plated
- Contact Pins: Copper alloy, Gold over Nickel plating
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 1kV for 1 min
- Assembly Screws: Self-tapping
- Cable Outlet: Angled
- Jackscrew Color: Black
Buy the Buy multicomp D-Sub Connector with Backshell Part Number MP002054 Online
Order the multicomp D-Sub Connector with Backshell MP002054 today for high-quality, durable electrical connections. Designed with angled cable outlet and long UNC 4-40 jackscrews, it ensures secure fastening and resistance to electromagnetic interference. Made from ABS and steel, it supports a temperature range of -40°C to +105°C and accepts cables with diameters of 3mm to 13mm. Certified according to industry standards, this connector is ideal for demanding electronic and industrial applications. Buy online for fast delivery and trusted performance.
Get multicomp D-Sub Connector with Backshell MP002054 today—built for secure fastening, high interference protection, and reliable electronic communication.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002054?
You can click on the BUY or RFQ button to purchase MP002054 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002054?
You can download the MP002054 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002054?
MULTICOMP PRO
