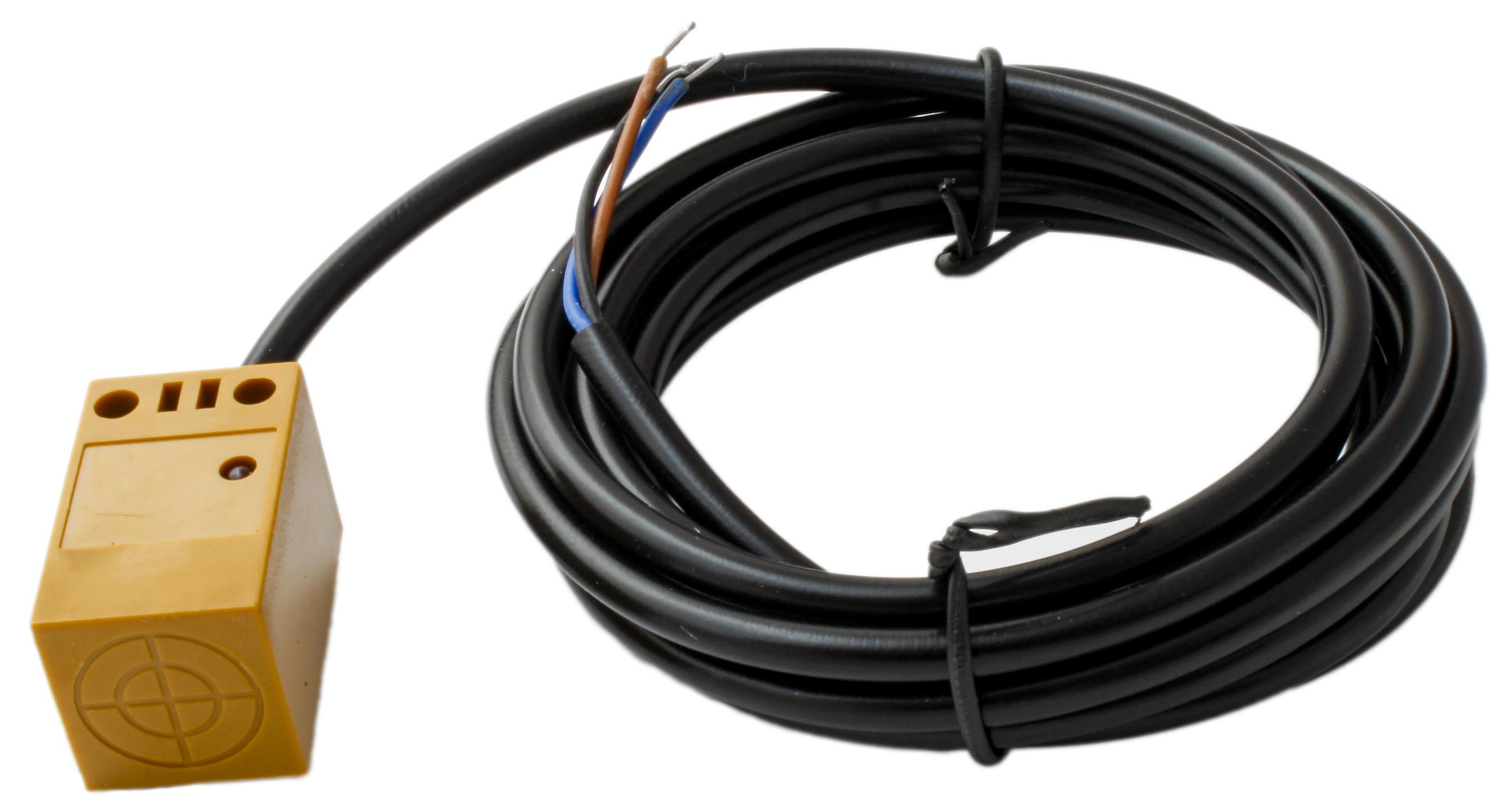

MULTICOMP PRO MP002236 Inductive Proximity Sensor
The inductive proximity sensor features a compact 20mm square plastic housing with a protective IP67 water-resistant rating. Capable of sensing ferrous metals within a range of 7.2mm to 8mm, it offers versatile mounting options and high frequency operation for precise detection in industrial automation, measuring, counting, and material handling applications. The sensor supports a wide power supply range of 10V to 30V DC and 90V to 250V AC, with over-current, short circuit, and polarity reversal protection, ensuring reliable and safety-compliant performance in harsh environments.
MULTICOMP PRO MP002236 Inductive Proximity Sensor Specifications:
- Housing Size: 20mm x 20mm x 38mm
- Mounting Distance: 8mm shielded
- Sensing Distance: 7.2mm shielded
- Power Supply Range: 10V to 30V DC / 90V to 250V AC
- Frequency: 500Hz / 250Hz (DC 3/2 wires) / 25Hz (AC 2 wires)
- Current Output: 200mA / 300mA
- Ambient Temperature: 1°C to 70°C
- Protection Class: IP67
- Against Polarity Reversal: Yes
- Short Circuit Protected: Yes (3 wires), No (2 wires)
- Output Types: NO, NC, NO + NC
- Wiring Configurations: 2-wire, 3-wire, 4-wire
- Application: Metal detection, counting, measurement, industrial automation
- Material: Plastic housing with electronic components
- Connections: M12 connector options available
- Maximum sensing object: Ferrous metals
Buy the Multicomp Series Inductive Proximity Sensor: MP002236
Enhance your industrial automation systems with the highly reliable inductive proximity sensor featuring a compact design, water-resistant IP67 rating, and adjustable sensing distance. Ideal for detecting ferrous metals across various environments, this sensor offers a wide operating voltage range, over-current protection, and easy installation. Choose from various wiring options including 2-wire, 3-wire, or 4-wire configurations to suit specific application needs. Order online now to ensure quick delivery and seamless integration into your machinery, boosting efficiency and precision in your operations.
Order your Multicomp Series MP002236 inductive proximity sensor today and ensure your automation projects benefit from reliable, precise metal detection.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002236?
You can click on the BUY or RFQ button to purchase MP002236 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002236?
You can download the MP002236 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002236?
MULTICOMP PRO
