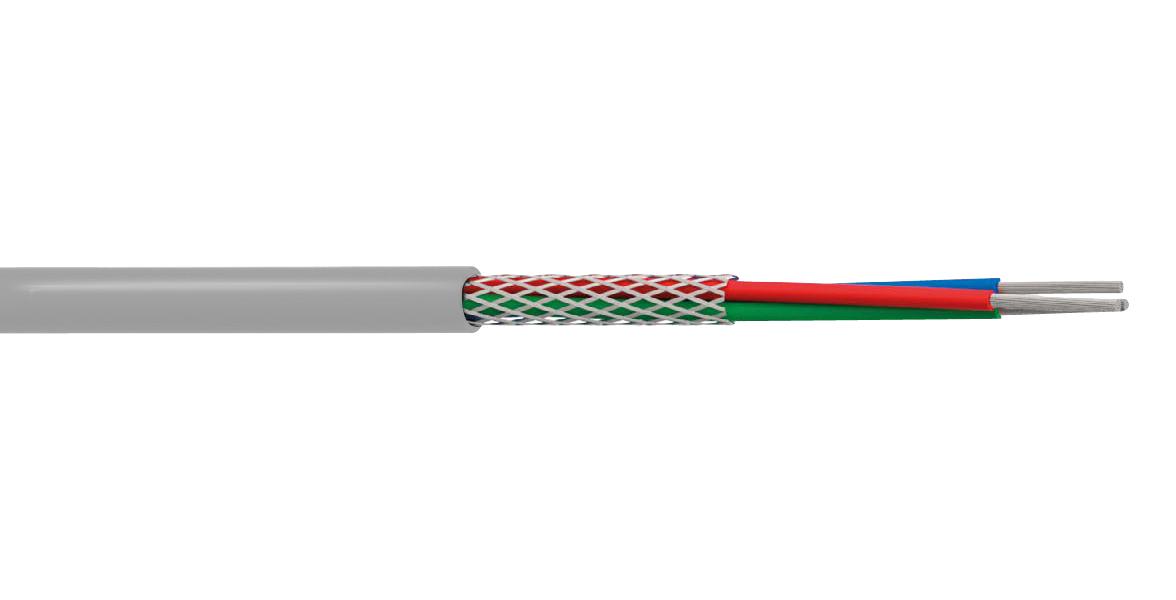

MULTICOMP PRO MP002310 Multicore Cable
These high-quality multicore flexible cables are designed for robust wiring in electronic equipment, military vehicles, aircraft, and process control systems. They feature PVC insulation and sheath, a tinned copper wire braid screen, and a copper conductor capable of handling up to 2.5 amps. Suitable for applications up to 440V AC, with a voltage rating of 440V rms at frequencies up to 1.6kHz. Their construction ensures durability with an insulation thickness of 1.2 mm and overall diameter around 10.5 mm, making them ideal for demanding environments and high-density wiring.
MULTICOMP PRO MP002310 Multicore Cable Specifications:
- Voltage Rating: 440V rms at up to 1.6kHz
- Core Count: 12 cores
- Conductor Material: Class 5 flexible tinned copper
- Conductor Diameter: 1.2 mm
- Insulation Material: PVC
- Sheath Material: PVC
- Screen Type: Tinned Copper Wire Braid
- Sheath Color: Black or Grey
- Maximum Resistance of Conductor at 20°C: 40.10/km
- Current Capacity: 2.5 Amps
- Temperature Rating: Fixed -30°C to +70°C, Flexed -15°C to +70°C
- Minimum Bending Radius: 7.5 x overall diameter
- Overall Diameter: Approx. 10.5 mm
- Weight: 138.66 kg/km
- Application: Military, aerospace, industrial wiring
- Standards: Defence Standard 61-12 Part 5
Buy the Buy Multicomp High Density Wiring Part Number MP002310 Online
Purchase the Multicomp cable MP002310 online for your military and industrial wiring needs. Designed with PVC insulation and braided screening, this cable supports up to 2.5 amps at 440V. Its durable construction with tinned copper conductors and flexible design makes it ideal for high-density wiring in demanding environments. Available in black or grey, it features a 12-core configuration with a 10.5 mm overall diameter. Order now for reliable performance, quick delivery, and competitive pricing in your projects!
Order your Multicomp Series MP002310 flexible multicore cable today and ensure reliable, high-quality wiring for your military, aerospace, or industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002310?
You can click on the BUY or RFQ button to purchase MP002310 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002310?
You can download the MP002310 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002310?
MULTICOMP PRO
