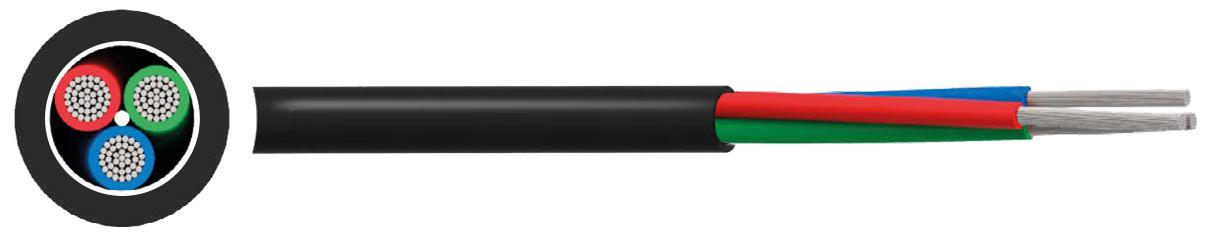

MULTICOMP PRO MP002323 Multicore Cable
This versatile multicore cable is designed for high-density wiring within electronic and aerospace equipment, offering flexible, PVC-insulated conductors with copper braid screens. Rated for 250V or 440V depending on conductor size, it performs reliably up to 70°C. Its durable PVC sheath, combined with stranded tinned copper conductors, ensures safety and electromagnetic compatibility in demanding environments. Applicable in military, aerospace, and industrial control systems, it features a minimum bending radius of 7.5 times the overall diameter, providing excellent flexibility and ease of installation in confined spaces.
MULTICOMP PRO MP002323 Multicore Cable Specifications:
- Voltage Rating: 250V r.m.s. at up to 1.6 kHz, 440V r.m.s. depending on core size
- Conductors: Stranded tinned copper, 0.055mm² (7/0.1mm), 0.22mm² (7/0.2mm)
- Insulation: PVC (Polyvinyl Chloride)
- Screen: Tinned Copper Wire Braid (TCWB)
- Sheath: PVC, color options include Black, Grey
- Temperature Rating: Fixed -30°C to +70°C, Flexed -15°C to +70°C
- Minimum Bending Radius: 7.5 x overall diameter
- Construction: Conductors with PVC insulation and sheath, conductors collectively screened with PVC sheath
- Overall Diameter: Varies with core size, approx. 3.4mm to 9.5mm
- Weight: 3.4 kg/km to 172.73 kg/km depending on variant
Buy the Multicomp Series Multicore PVC Cable: MP002323
Purchase the Multicomp high-density multicore cables online today and ensure your electronic, aerospace, or military projects benefit from durable insulation, flexible design, and reliable performance. These PVC-insulated, copper-braided cables are ideal for demanding environments, providing excellent electromagnetic compatibility and ease of handling. With multiple core options and robust construction, they stand out for safety, efficiency, and installation convenience, enabling seamless integration into complex wiring systems. Order now to enhance your project’s reliability and operational performance.
Buy Multicomp MP002323 high-density multicore cables online now and experience reliable power transmission and easy installation in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002323?
You can click on the BUY or RFQ button to purchase MP002323 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002323?
You can download the MP002323 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002323?
MULTICOMP PRO
