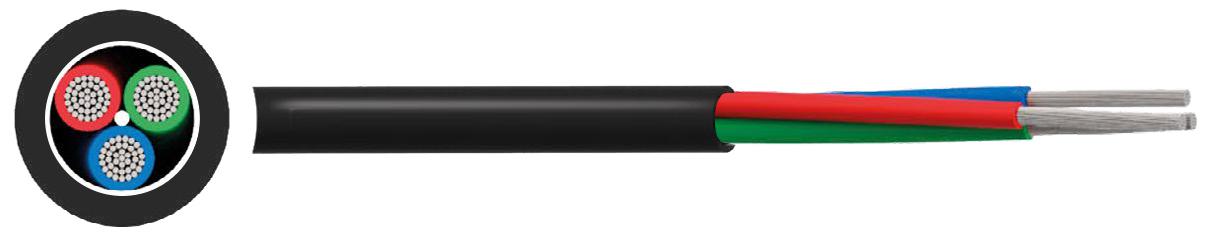

MULTICOMP PRO MP002391 Multicore Cable
This multicore flexible cable is designed for high-density wiring in electronic equipment, aircraft, military vehicles, and process control systems. It features a tinned copper conductor, PVC insulation and sheath, and a woven copper screen, rated at 440V with a temperature range of -30°C to +70°C. Suitable for both fixed and flexed applications, it offers reliable current capacity of 2.5A and is compliant with Defence Standard 61-12 Part 5 for durable, high-performance connections in demanding environments.
MULTICOMP PRO MP002391 Multicore Cable Specifications:
- Voltage Rating: 440V r.m.s. at frequencies up to 1.6kHz
- Conductor: Class 5 flexible tinned copper, 0.5mm² (16/0.2mm)
- Insulation: PVC
- Screen: Tinned Copper Wire Braid (TCWB)
- Sheath: PVC, color options include Black and Grey
- Maximum Resistance of Conductor at 20°C: 40.10/km
- Current Carrying Capacity: 2.5 Amps
- Temperature Rating: Fixed -30°C to +70°C, Flexed -15°C to +70°C
- Minimum Bending Radius: 7.5 x overall diameter
- Dimensions: Nominal overall diameter varies from 5.5mm to 13.1mm depending on core count
- Construction: Circular, PVC insulated and sheathed, with optional screening for signal integrity
- Compliance: Defence Standard 61-12 Part 5
Buy the Multicomp Series 61-12 Multicore Cables: MP002391
Purchase the high-quality Multicore Cable MP002391 online today and enhance your electronic projects and military systems with proven durability and reliable performance. Designed for high-density wiring, it features PVC insulation and sheath with a tinned copper conductor, rated at 440V. Its flexibility and screening options meet strict standards for aerospace, military, and industrial applications. Get fast delivery and secure your supply of this essential component for demanding applications requiring durability and reliable conductivity, made to meet Defence Standard specifications.
Order your Multicomp Series 61-12 Multicore Cable MP002391 today and ensure reliable, high-performance wiring in demanding military and industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002391?
You can click on the BUY or RFQ button to purchase MP002391 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002391?
You can download the MP002391 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002391?
MULTICOMP PRO
