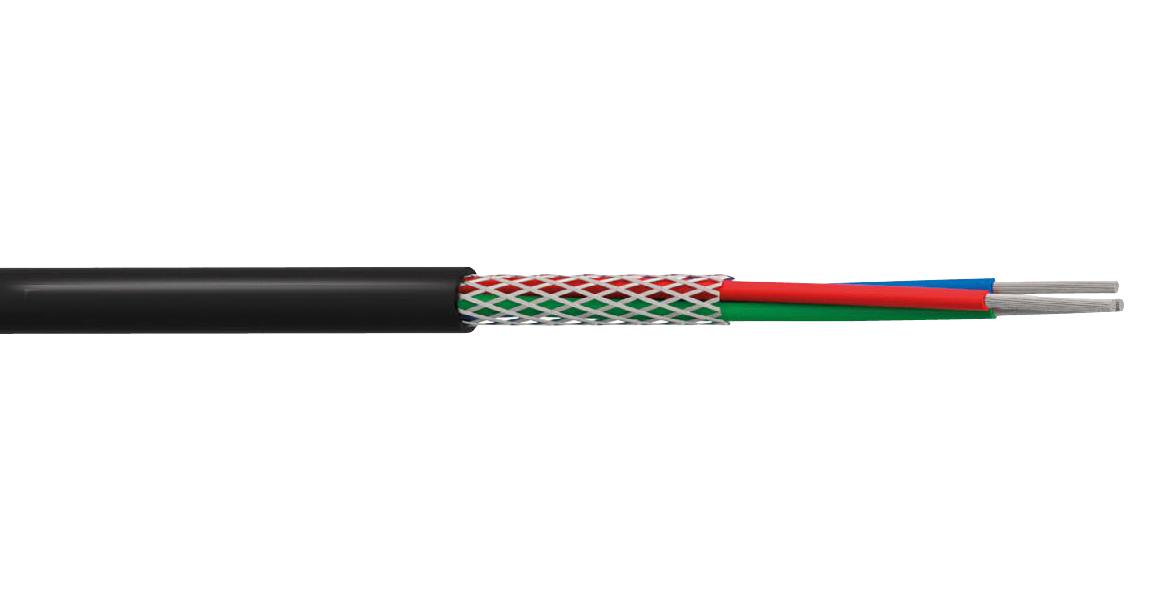

MULTICOMP PRO MP002398 Multicore Cable
This multicore flexible cable is designed for high-density wiring in electronic equipment, aircraft, military vehicles, and control systems. It features a tinned copper conductor, PVC insulation, and a PVC sheath. The cable has a voltage rating of 440V RMS, with a maximum resistance of 40.10/km at 20°C. It is available in black and grey colors, with a flexible construction suitable for applications requiring a minimum bending radius, and can carry 2.5 amps at temperatures from -30°C to +70°C.
MULTICOMP PRO MP002398 Multicore Cable Specifications:
- Voltage Rating: 440V r.m.s. at up to 1.6kHz
- Conductor Material: Class 5 flexible tinned copper, 0.5mm² (16/0.2mm)
- Insulation & Sheath: PVC (Polyvinyl Chloride)
- Screen: Tinned Copper Wire Braid (TCWB)
- Sheath Color: Black or Grey
- Current Capacity: 2.5 Amps
- Temperature Range: Fixed: -30°C to +70°C, Flexed: -15°C to +70°C
- Minimum Bending Radius: 7.5x overall diameter
- Nominal Overall Diameter: Varies by cable type, approximately 5.5mm to 13.1mm
- Weight: Ranges from approximately 31.97 kg/km to 244 kg/km depending on cable size
- Standards: Defence Standard 61-12 Part 5
- Construction: Circular PVC insulated and sheathed with screened cores for some variants
Buy the Multicomp Series Multicore Cables: MP002398
Purchase the Multicomp MP002398 multicore cable online today for reliable high-density wiring solutions in aerospace, defense, and electronic applications. Featuring PVC insulation, flexible tinned copper conductors, and a robust PVC sheath, this cable ensures excellent electrical performance and durability under demanding conditions. With customizable lengths, it is ideal for high-performance electronic systems and military equipment that require precise wiring and long-lasting reliability. Order now to benefit from fast shipping and trusted quality for your critical projects.
Get Multicomp MP002398 today—built for high-density wiring and military-grade durability.
