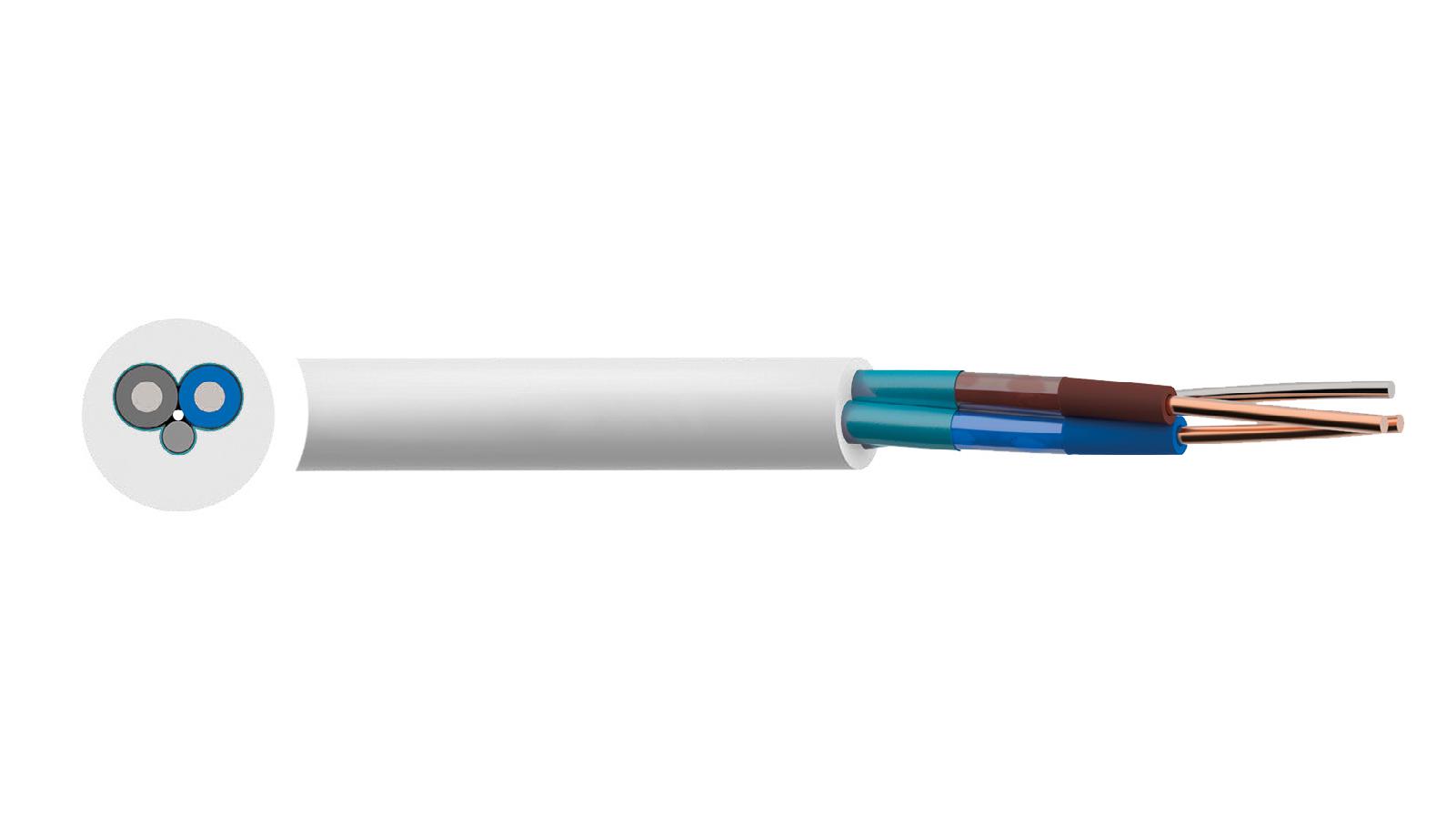

MULTICOMP PRO MP002420 Fire Resistant Multicore Cable
Enhanced fire resistant multicore cables designed for critical fire detection, alarm, and emergency lighting systems, ensure operational integrity during fires. Constructed with Class 1 solid conductors ranging from 1.5mm² to 2.5mm², these cables feature mica/glass fire-resistant tape insulation covered by high-performance silicone rubber, providing excellent fire safety and durability. They are shielded with aluminium/polyester tape and protected with LSZH outer sheath for low smoke and zero halogen emissions. Certified by BASEC and compliant with BS and IEC standards, these cables are ideal for building safety applications requiring reliable fire-resistant wiring.
MULTICOMP PRO MP002420 Fire Resistant Multicore Cable Specifications:
- Voltage Rating: 300V / 500V
- Temperature Rating: -40°C to +90°C
- Conductor: Class 1 Solid Conductor, 1.5mm² to 2.5mm²
- Insulation: Mica/Glass fire resistant tape, silicone rubber
- Shield: Aluminium/Polyester Tape
- Outer Sheath: LSZH
- Core Colors: 2 cores in Blue, Brown, +Bare Earth; 3 cores in Brown, Black, Grey +Bare Earth; 4 cores in Blue, Brown, Black, Grey +Bare Earth
- Sheath Colors: Red & White
- Minimum Bending Radius: 6 x overall diameter
- Standards & Certifications: BS 7629-1, BS 5839-1, BS EN/IEC 60754-1/2, BS EN 61034-2, BS EN 50200-PH30, PH60, PH90, PH120, BS 6387, BS 5266-1, BS 8519, BS 8434-2, UL Listed, CSA Certified
- Resistance at 20°C: Conductor 12.1 Ω/km (1.5mm²), 74.1 Ω/km (2.5mm²); Insulation Resistance: 110 MΩ/km (1.5mm²), 120 MΩ/km (2.5mm²)
- Current Rating: 24A (1.5mm²), 33A (2.5mm²)
- Voltage Drop: 30 mV/Alm (1.5mm²), 18 mV/Alm (2.5mm²)
- De-Rating Factors: Up to 1.04 at 25°C, decreasing with higher temperatures
Buy the Multicore Series Fire Resistant Cables: MP002420
Purchase the fire resistant multicore cable MP002420 online today for your fire alarm, emergency lighting, and safety systems. Designed with solid conductors, mica/glass fire-resistant insulation, and LSZH outer sheath, these cables meet strict safety standards and ensure reliable operation during fire situations. Certified by BASEC and compliant with BS and IEC standards, they feature excellent fire resistance, low smoke emission, and durable construction. Available in multiple core configurations with red and white sheath colors, order now for quick delivery and enhanced safety of your building infrastructure.
Order your Multicore Series fire resistant cables MP002420 today and ensure your fire alarm and emergency systems operate reliably during critical situations.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002420?
You can click on the BUY or RFQ button to purchase MP002420 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002420?
You can download the MP002420 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002420?
MULTICOMP PRO
