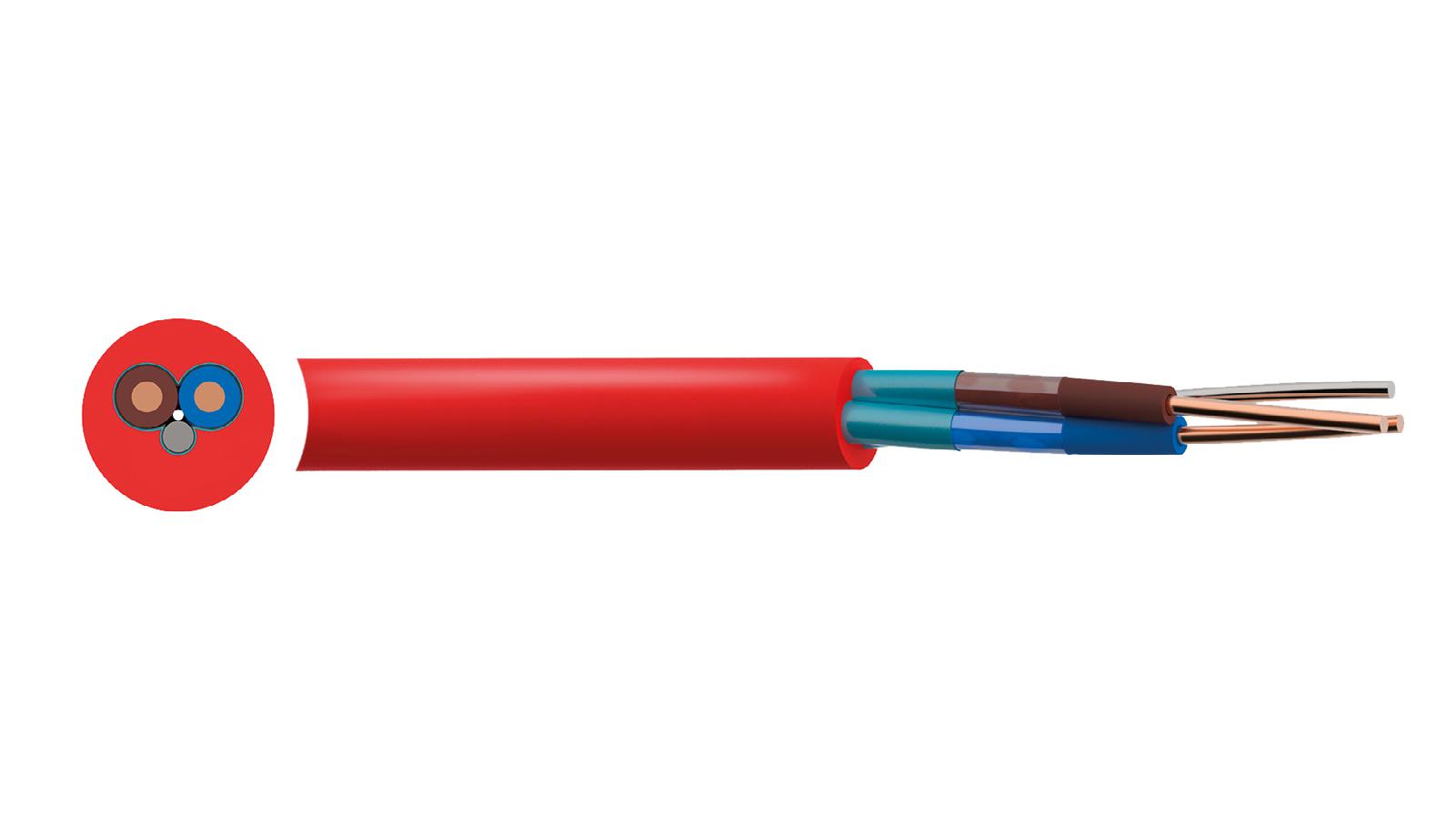

MULTICOMP PRO MP002423 fire-resistant multicore cable
This enhanced fire-resistant multicore cable with a solid conductor is designed for critical fire alarm, emergency lighting, and fire detection systems. Compliant with BS, IEC standards, and tested by BASEC, it features mica/glass fire-resistant insulation covered by high-performance silicone rubber, with an overall AI/PET screen and tinned copper protective conductor. Suitable for use in demanding situations requiring operation during fire, it is available with 1.5mm? or 2.5mm? cross-sectional areas, with various core configurations, providing reliable performance and high safety standards in buildings.
MULTICOMP PRO MP002423 fire-resistant multicore cable Specifications:
- Voltage Rating: 300V / 500V
- Temperature Rating: -40°C to +90°C
- Minimum Bending Radius: 6 x overall diameter
- Conductor: Class 1 Solid, 1.5mm? or 2.5mm?
- Insulation: Mica/Glass fire resistant tape with high-performance silicone rubber
- Overall Screen: AI/PET (Aluminium/Polyester Tape)
- Protective Conductor: Tinned copper
- Outer Sheath: Low Smoke Zero Halogen (LSZH)
- Construction: Multiple core configurations with identified colors (e.g., Blue, Brown, Black, Grey, Bare Earth)
- Sheath Color: Red & White
- Resistance: Conductor at 20°C 12.1-741 Ω/km, insulation resistance 110-120 MΩ.km
- Current Capacity: 24-33 Amps depending on cross-section and core count
- Voltage Drop: 30-18 mV/Alm depending on cross-section
- Standards & Approvals: BS 7629-1, BS 5839-1, BS EN/IEC 60754-1/2, BS EN 61034-2, BS EN 50200-PH30/60/90/120, BS 6387, BS 5266-1, BS 8519, BS 8434-2, BS EN 60228, BASEC tested
Buy the Buy Newark Multicore Cable Part Number MP002423 Online
Get your Newark fire-resistant multicore cable MP002423 online today. Designed for critical fire alarm and emergency lighting systems, it ensures reliable operation during fires. Compliant with BS standards and tested by BASEC, this cable features high-performance silicone rubber insulation, a low smoke zero halogen sheath, and solid conductors for durability. Available in various configurations, it offers high safety, flexibility, and compliance for demanding safety-critical installations. Purchase now to ensure your building's fire safety systems are dependable and compliant.
Order your Newark Series MP002423 fire-resistant multicore cable today and ensure your fire detection system operates reliably during emergencies.
