MULTICOMP PRO MP002440 USB Sealed Connectors
The MP USB sealed metal range of connectors and adapters is robustly constructed for demanding applications. These panel-mount connectors are environmentally sealed to IP68 standards, offering protection even when unmated or when the sealing cap is not attached. They are fully rear potted, ensuring additional protection. The range includes options with DIP terminations or pre-wired with a USB plug or socket. Key features include compatibility with a 16mm mounting cut-out, a metal dust cap for C2 screw, threaded mating, and gold-plated contacts. Suitable for use in audio, automation and process control, as well as communications and networking applications.
MULTICOMP PRO MP002440 USB Sealed Connectors Specifications:
- IP Rating: IP68
- Mounting Cut-out Diameter: 16mm
- Material: Zinc Alloy, Ni Plated for housing and hex nut
- Contacts: Copper Alloy, Gold Plated
- Shell: Stainless Steel, Au Plated
- Insulator Material: Black Thermoplastic (94V-0 rated)
- Cable Jacket: UL21572, OD 4.8mm, Black TPE
- Dust Cap Material: Metal with Nickel Plating
- Threaded Mating: C2 screw, Thread size: 7/8'-27 TX8
- Temperature Range: Suitable for demanding environments
- Environment Seal: Meets IP68 standards, protected against water and dust
- Application: Suitable for automation, industrial, communication, and networking
- Features: Fully rear potted, gold-plated contacts, compatible with panel thickness from 0.8mm to 6mm

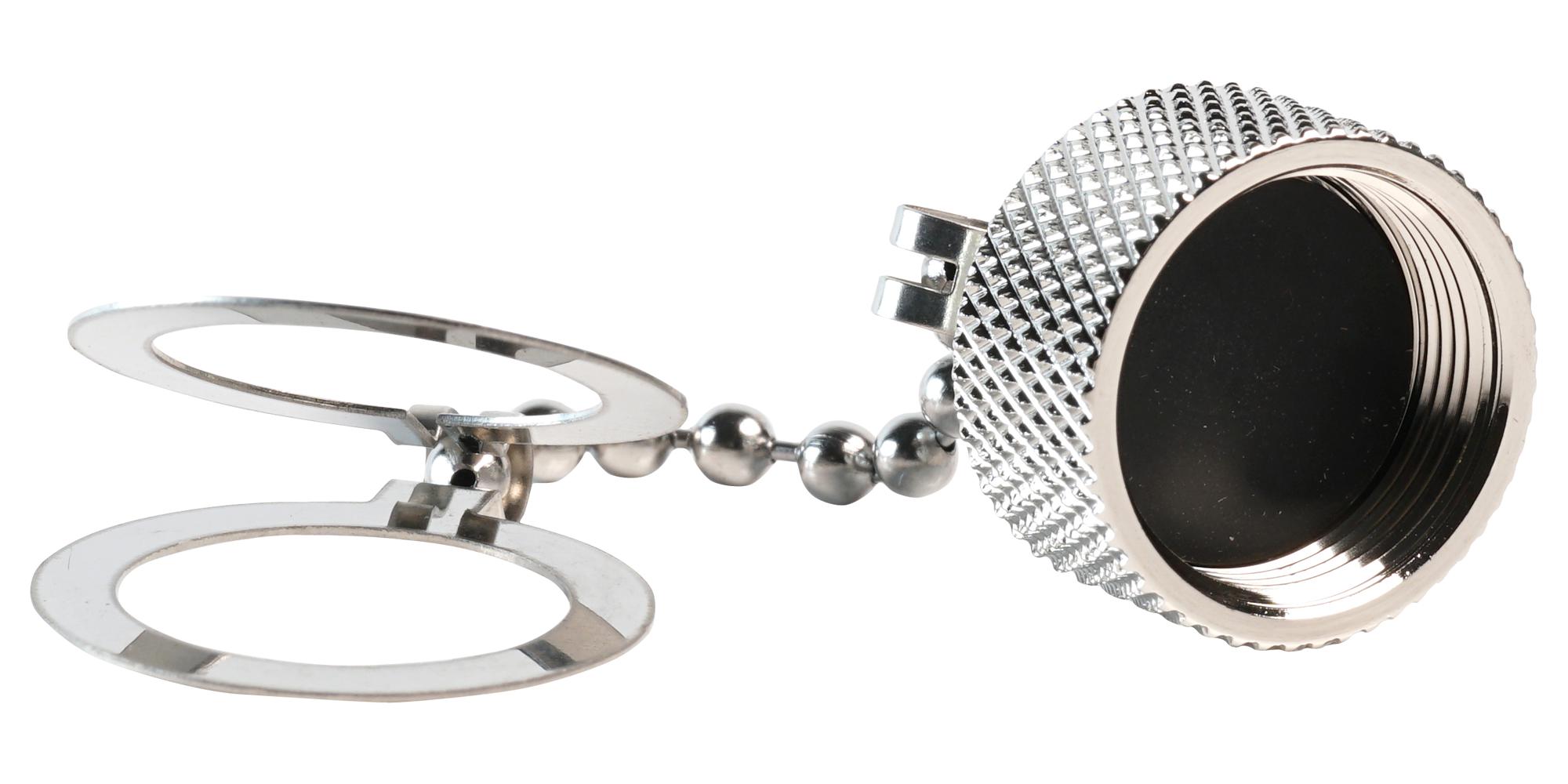

- Complete with metal dust cap and chain for secure storage
- Includes: Metal screw cap, metal rivet, rubber pad
Buy the Multicomp Series USB 3.1 Type C Sealed Connectors: MP002440
Enhance your industrial and networking projects with the high-quality, IP68-rated sealed USB Type C connectors from Multicomp. These robust, environmentally sealed connectors are designed for demanding applications, featuring gold-plated contacts for superior conductivity and corrosion resistance. They are compatible with panel thicknesses from 0.8mm to 6mm and come with a metal dust cap and chain for secure storage. Perfect for automation, communications, and networking, order online now to benefit from fast delivery and proven reliability.
Order your Multicomp Series MP002440 sealed USB Type C connector today and ensure reliable, environmentally sealed connections for demanding industrial applications.
