MULTICOMP-PRO MP002441 USB Sealed Connector
The MP USB sealed metal range of connectors and adapters is robustly constructed for demanding applications. These panel-mount connectors are environmentally sealed to IP68 standards and are fully rear potted, providing protection even when unmated or without the sealing cap attached. Available with DIP terminations or pre-wired with a USB plug or socket, they feature a 16mm fitting cut-out, threaded mating, and a metal dust cap for the C3 screw. The contacts are gold-plated, ensuring reliable connectivity. Suitable for audio, automation, and process control, as well as communications and networking applications.
MULTICOMP-PRO MP002441 USB Sealed Connector Specifications:
- IP Rating: IP68
- Panel Thickness: 0.8mm to 6mm
- Recommend Torque: 19 to 20Kgf-cm
- Housing Material: Zinc Alloy with Ni Plating
- Contact Material: Copper Alloy, Au Plated
- Shell Material: Copper Alloy, Ni Plated
- Seal Material: Silicone, Red

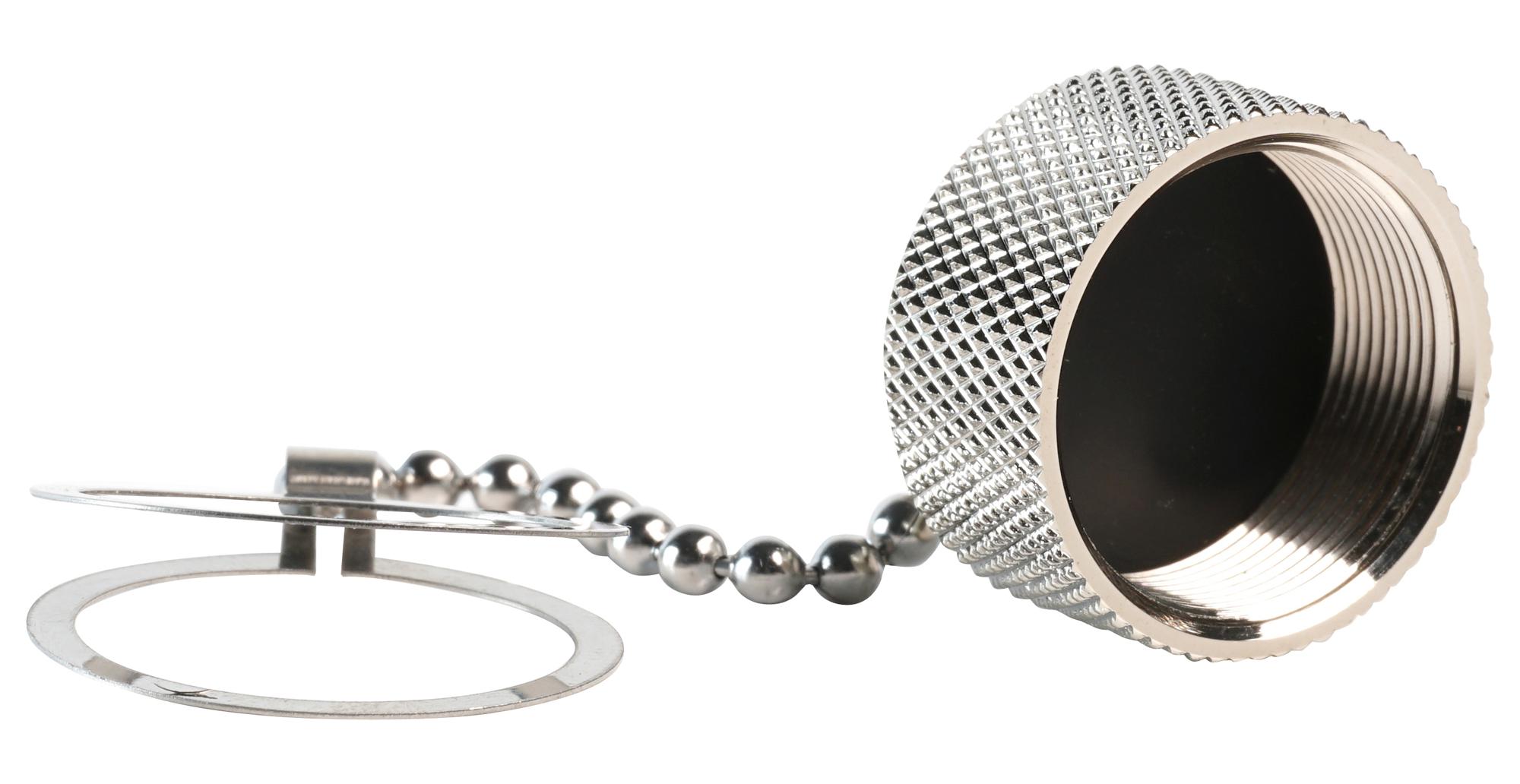

- Dust Cap Material: Copper Alloy, Ni Plated
- Screw Material: Copper Alloy, Ni Plated
- Cable: UL2725, 28 AWG + 24 AWG wires, OD=5mm, Black
- Dimensions: Threaded 13/16''-28 UN, 16mm cut-out fit
- Additional Components: SUS Metal Chain, Rubber Black Pad, Epoxy Black Glue
Buy the multicomp:ro MP002441 – Reliable IP68 USB Connector for Industrial Applications
Order the multicomp:ro MP002441 IP68 sealed USB connector online today and experience unparalleled reliability for industrial automation, networking, and communication projects. Designed for harsh environments, this robust connector features gold-plated contacts for secure data transfer, full IP68 sealing, and a sturdy metal dust cap with chain for added protection. Its versatile design with 16mm fitting cut-out makes installation easy, ensuring long-term performance and safety. Perfect for industrial, automation, and control systems that demand durable and sealed USB connections—get yours now!
Buy multicomp:ro MP002441 now and ensure reliable connectivity with a durable, environmentally sealed USB connector suitable for demanding industrial environments.
