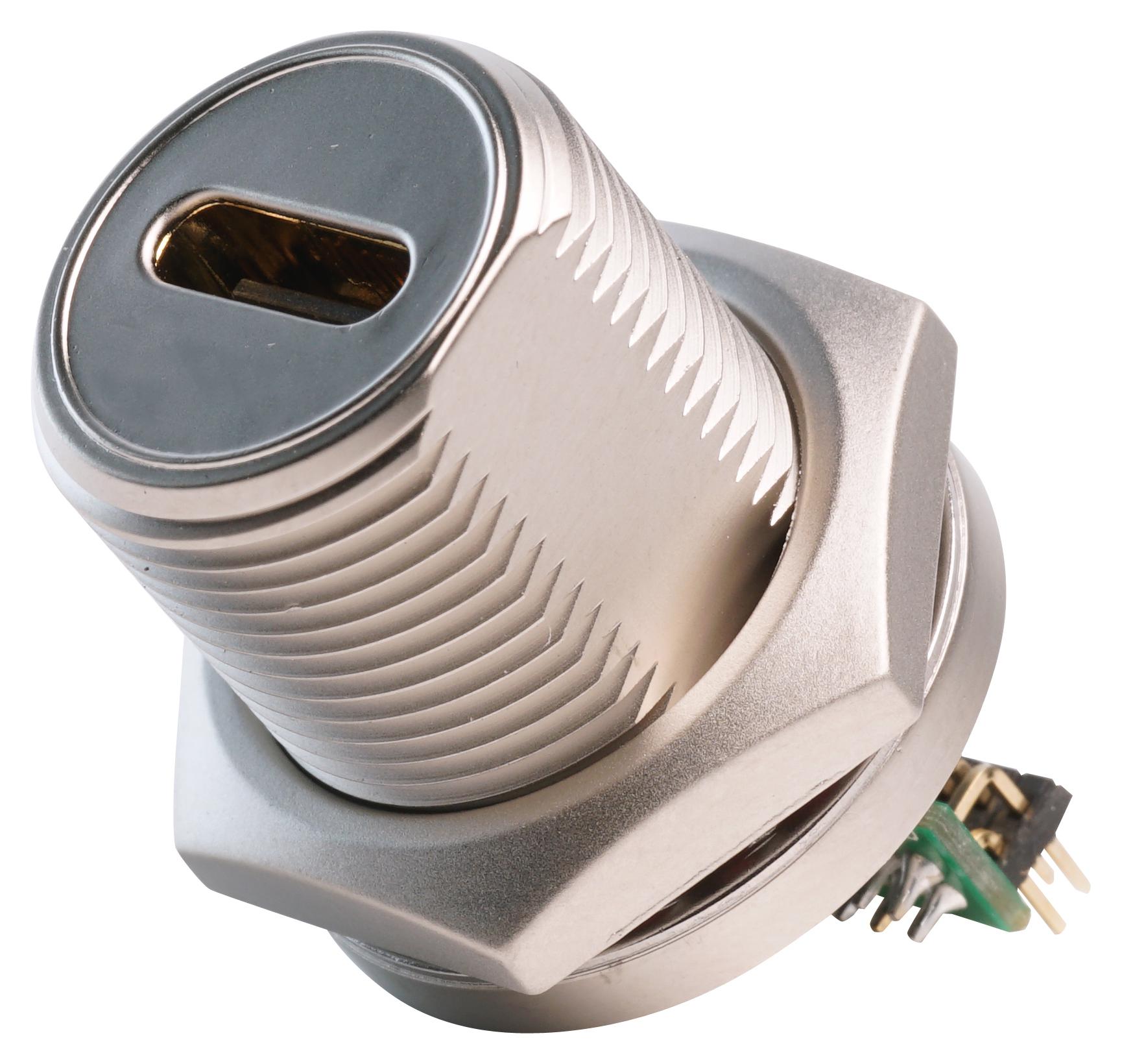

MULTICOMP PRO MP002447 USB Type C Sealed Connector
The MP USB sealed metal connectors and adapters are robust, high-quality panel-mount components designed for demanding environments. They are environmentally sealed to IP68 standards, ensuring protection even when unmated or without a sealing cap. The range features options with DIP terminations or pre-wired versions with USB plugs or sockets. Suitable for applications in audio, automation, process control, communications, and networking, these connectors fit a 16mm panel cut-out, use USB Type-C 3.1 interface, have threaded mating, and feature gold-plated contacts for reliable connectivity.
MULTICOMP PRO MP002447 USB Type C Sealed Connector Specifications:
- IP Rating: IP68
- Suitable Panel Thickness: 0.8mm to 6mm
- Recommend Torque: 119 to 20Kgf-cm
- Housing Material: Zinc Alloy; Finish: Ni Plated
- Shell Material: Stainless Steel; Finish: Au Plated
- Contacts: Copper Alloy; Finish: Au Plated
- Insulator: Black Thermoplastic (94V-0 Rated)
- Cable Jacket: Black TPE, OD 4.8mm
- Gasket: Silicone, Red
- Dust Cap: Metal with Chain
- Connector Type: USB 3.1 Type C, Solder Type, PCB without IC
- Pin Count: 30u Gold Plated Over Nickel
- Dimensions: Fits 16mm panel cut-out, approx. 14-20mm depth
Buy the Premier Series USB Type C Sealed Connectors: MP002447
Get the MP002447 USB Type C Sealed Connector today to experience reliable and secure connectivity in harsh environments. Its IP68 rating guarantees protection against dust and water, making it ideal for industrial automation, communication devices, and outdoor applications. Crafted with high-quality zinc alloy housing, stainless steel shell, and gold-plated contacts, this connector ensures long-lasting performance. Compatible with panel thicknesses from 0.8mm to 6mm, it features a threaded design for secure mating, providing peace of mind for critical wiring and data transfer needs. Buy online now for unbeatable quality and durability.
Order your Premier Series USB Type C Sealed Connector MP002447 today and ensure your equipment is protected with reliable IP68 sealing and durable construction.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002447?
You can click on the BUY or RFQ button to purchase MP002447 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002447?
You can download the MP002447 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002447?
MULTICOMP PRO
