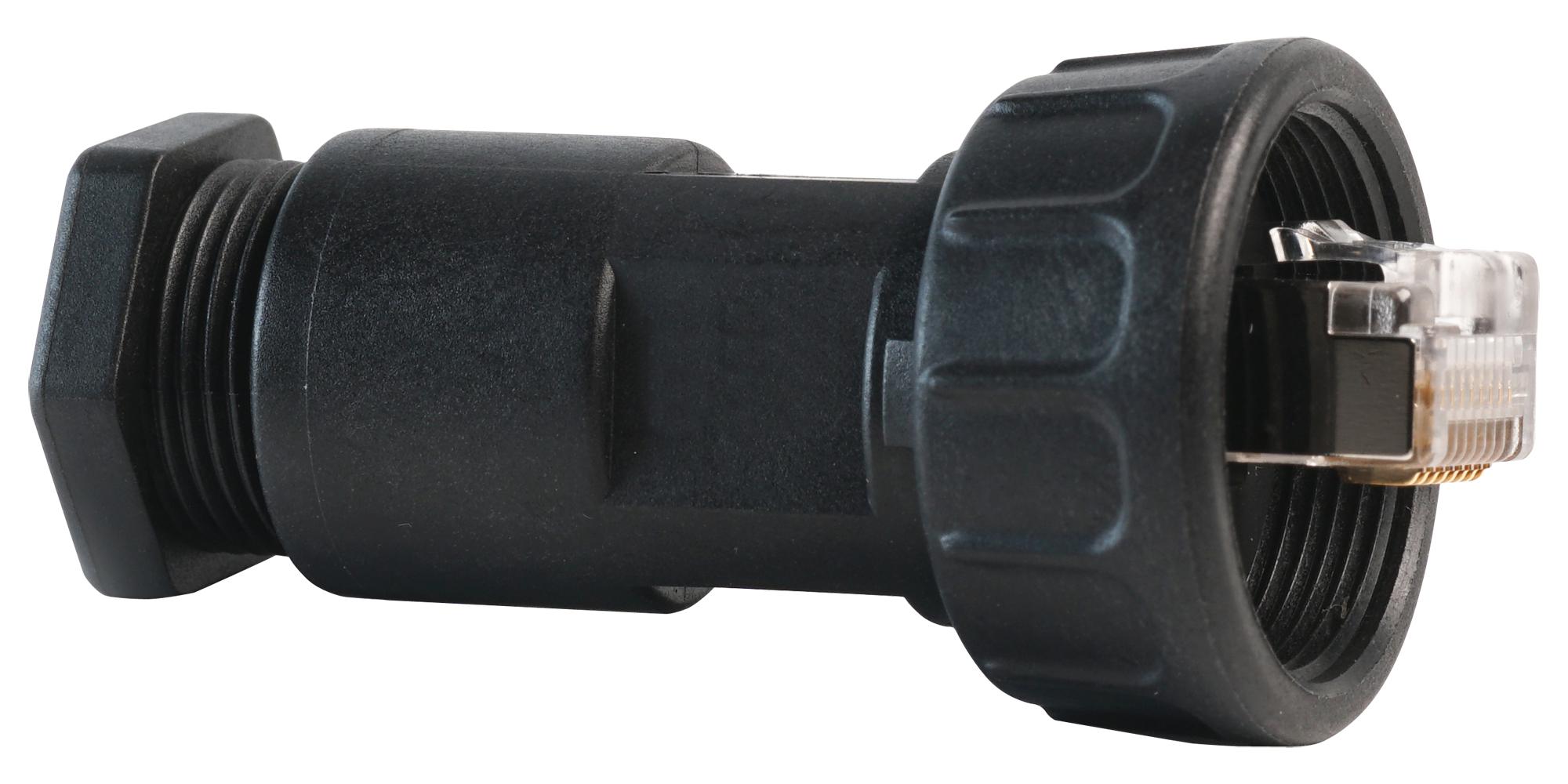

MULTICOMP PRO MP002456 Ethernet Connector
The MP RJ45 Ethernet connector series features a robust thermoplastic construction with gold-plated contacts for reliable connectivity. Fully sealed for environmental protection, these IP68-rated panel-mount connectors are suited for industrial automation, communication, and networking. They are IP67 rated when unmated, providing high durability in harsh conditions, and are rear potted for additional integrity. Available in various configurations, including DIP, pre-wired, and coupler types, with a 20.75mm panel cut-out, threaded mating, and rugged design for long-lasting performance.
MULTICOMP PRO MP002456 Ethernet Connector Specifications:
- IP Rating: IP67 when mated, IP68 when sealed
- Material: Thermoplastic housing
- Contact Material: Copper Alloy, Gold Plated
- Panel Cut-Out: 20.75 mm diameter
- Rated Voltage: 250 V
- Rated Current: 1 A
- Cable Compatibility: 22-24 AWG
- Mounting: Panel-mount with threaded coupling
- Environmental Sealing: Fully sealed, rear potted
- Temperature Range: -40°C to +85°C
- Configuration Options: DIP, pre-wired, couplers
- Rated for harsh industrial environments
Buy the Multicomp MP002456 U+2013 Reliable Ethernet Connectors for Industrial Applications
Experience the high durability and reliable performance of the Ethernet connector designed for industrial and networking applications. Constructed from tough thermoplastic and featuring gold-plated contacts, it offers IP68 environmental sealing, fully rear potted for extra protection. Suitable for automation, communication systems, and test environments, it can handle harsh conditions while maintaining superior connectivity. Easy panel mounting with a 20.75mm cut-out and threaded coupling ensures secure installation. Choose this rugged, versatile connector for long-term, maintenance-free operation in critical applications.
Get Multicomp MP002456 today—built for robustness and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002456?
You can click on the BUY or RFQ button to purchase MP002456 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002456?
You can download the MP002456 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002456?
MULTICOMP PRO
