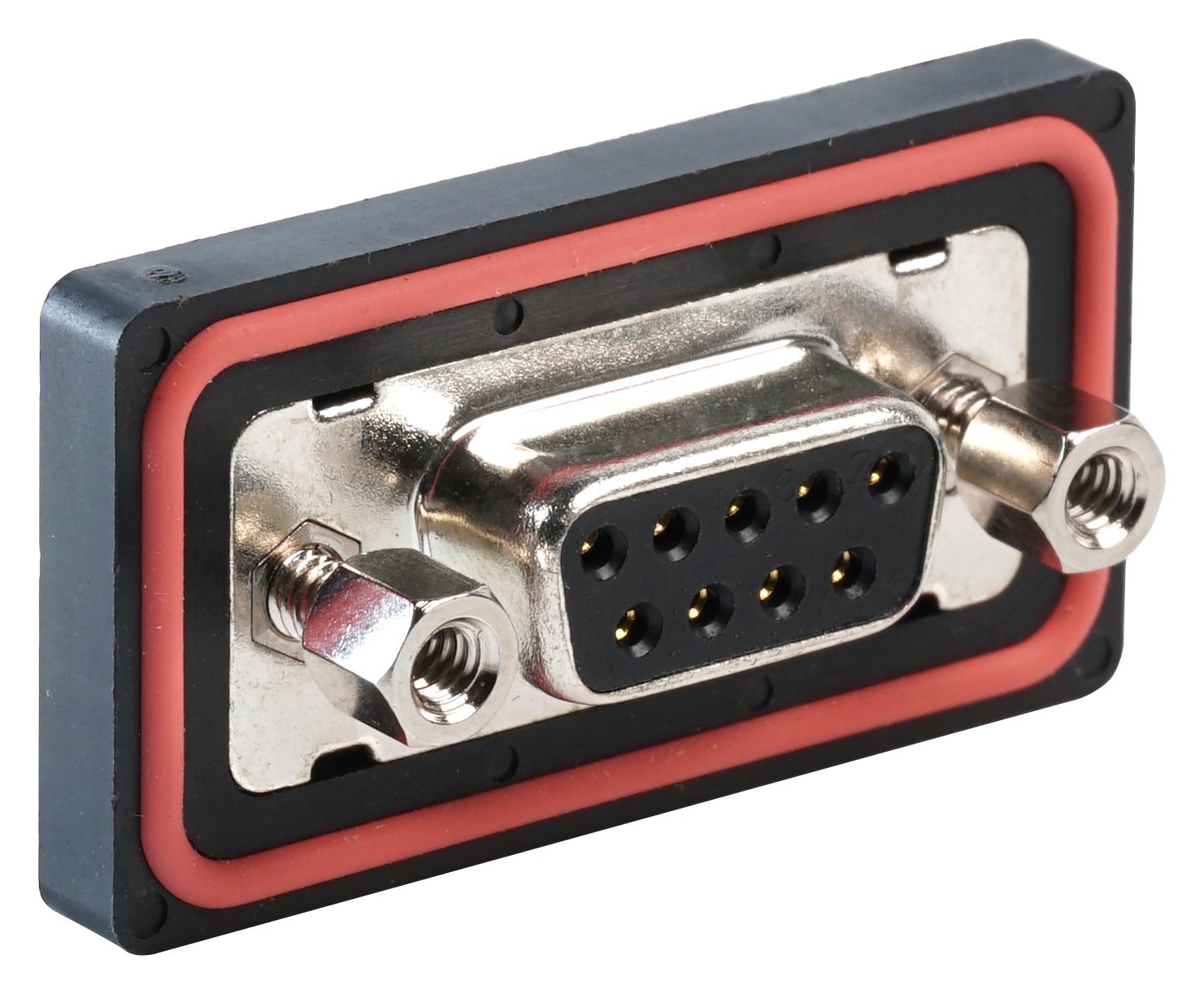

MULTICOMP-PRO MP002474 D-Sub Connector
The MP sealed D-Sub series of connectors are environmentally sealed and ruggedized for demanding applications. These panel-mount connectors are fully rear potted, providing protection even when unmated or without the sealing cap. Available in 9-pin or 15-pin configurations, they feature solder or pre-wired terminations, screw mating, IP68 rating, and gold-plated contacts. Ideal for audio, automation, process control, communications, and networking, these durable connectors ensure reliable connections in harsh environments, supporting a wide range of industrial and electronic applications.
MULTICOMP-PRO MP002474 D-Sub Connector Specifications:
- IP Rating: IP68
- Number of Positions: 9P or 15P
- Contacts Material: Copper Alloy with Gold or Nickel Plating
- Shell Material: Steel, Ni Plated
- Housing Material: Thermoplastic, Black
- Seal Material: EPDM, Black
- Suitable Cable OD: 4mm to 8mm
- Recommend Panel Thickness: 0.8mm to 2mm
- Gland Nut Torque: 9 to 10Kgf-cm
- Cover Torque: 6 to 7Kgf-cm
- Screw Size: #4-40, Copper Alloy, Ni Plated
- Environmental Rating: Fully rear potted, IP68
- Application: Audio, automation, communications, networking, industrial control
Buy the Premier Series D-Sub IP68 Connector: MP002474
Enhance the durability and reliability of your electronic connections with this environmentally sealed D-Sub connector. Featuring IP68 protection, gold-plated contacts for superior conductivity, and robust thermoplastic housing, it is designed for demanding environments. Suitable for audio, automation, communication, and networking projects, this connector ensures secure installation with screw mating, suitable cable sizes, and protection against dust and water ingress. Purchase online today to benefit from dependable performance and quick delivery, ensuring your projects stay on schedule with high-quality components.
Order your Premier Series D-Sub IP68 Connector MP002474 today and ensure reliable, rugged connections for harsh industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002474?
You can click on the BUY or RFQ button to purchase MP002474 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002474?
You can download the MP002474 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002474?
MULTICOMP-PRO
