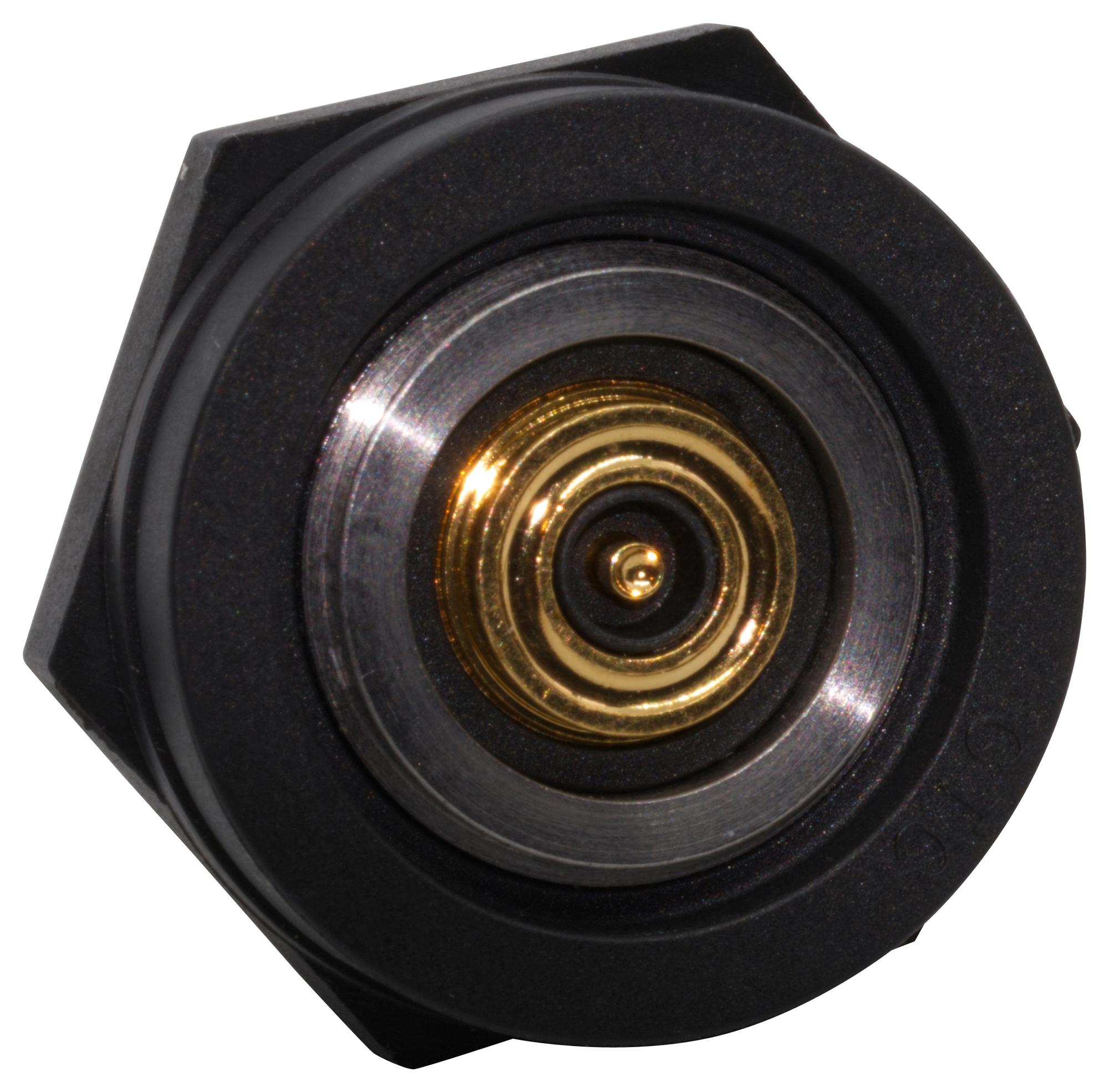

MULTICOMP PRO MP002495 magnetic connector
The MP magnetic connector series provides a reliable, quick-disconnect solution for low-voltage industrial applications. Designed for ease of connection, these connectors support up to 5A at 30V AC/DC and feature a 360-degree rotating head for flexible, multi-directional connectivity. Suitable for panel mounting with a 20.75mm cut-out, they offer IP67 rated durability with waterproof cable and panel components, although the magnetic connection itself is not waterproof. Ideal for automation, process control, portable devices, and safety systems, these connectors ensure secure and convenient electrical connections in demanding environments.
MULTICOMP PRO MP002495 magnetic connector Specifications:
- Rated Voltage: 30V AC/DC
- Current: 5A
- IP Rating: IP67 for cable and panel parts
- Magnetic Material: Nd-Fe-B N50, Ni finish
- Housing Material: Thermoplastic, Black
- Contacts: Copper Alloy, Au plated
- Cable OD: 3.5mm, UL1007 18AWG
- Panel Cut-Out: 20.75mm
- Rotation: 360 degrees
- Cable Length Options: 2 meters (straight or right-angle)
- Insulation Resistance: > 100MQ Min.
- Voltage Rating: 500Vrms
- Durability: Suitable for low-voltage industrial environments
- Connection Type: Magnetic, quick disconnect, solder or pre-wired options
Buy the Multicomp MP002495 – Reliable Magnetic Connection for Industrial Applications
Purchase the multicomp magnetic connector series online today to enhance your industrial or automation projects. These connectors offer a quick and secure magnetic connection, supporting 5A at 30V with IP67 rated durability for harsh environments. Designed for panel mounting with a precise 20.75mm cut-out, they feature 360-degree rotation and are available in straight or right-angle cable options, making installation flexible and straightforward. Ideal for portable devices, process automation, and safety systems, buy online now for quick delivery and reliable performance.
Get multicomp MP002495 today—built for ease of use with 5A rated current and IP67 durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002495?
You can click on the BUY or RFQ button to purchase MP002495 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002495?
You can download the MP002495 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002495?
MULTICOMP PRO
