MULTICOMP-PRO MP002509 Circular Connector
The MP-T13 IP68 series comprises a durable range of connectors featuring threaded couplings and weather sealing, all housed in a compact design. These connectors are available in panel mount, cable mount, and in-line cable mount configurations, facilitating cable-to-panel or cable-to-cable connections. They are suitable for both indoor and outdoor applications. Key features include a 13mm diameter fit, solder termination, IP68 rating, threaded mating, and options for 2, 3, 4, 5, and 7 poles. An IP68 cap is also available. Typical applications encompass automation and process control, medical equipment, security systems, test and measurement devices, and industrial automation.
MULTICOMP-PRO MP002509 Circular Connector Specifications:
- Material: PC: Panel Connector Shell, Insert Housing Shell, Brass contact with gold plating
- Shell Material: Reming Nat Nut, Back Shell, Compressing Nut
- Fire Resistance: V-0
- Insert Material: PPS, Max. Temperature 260°C
- IP Rating: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Contact Diameter: 1.6, 1, 1 mm for different contacts
- Rated Current: 13 A, 5 A, 5 A for various contacts
- Rated Voltage: 250 V, 200 V, 180 V, 125 V
- Test Voltage (AC): 1500 V, 1000 V depending on contact
- Contact Resistance: 2.5 mΩ, 5 mΩ for different contacts
- Wire Size: 2/14 AWG, 0.75/18 mm²
- Connector Configurations: 2P, 3P, 4P, 5P, 7P
- Dimensions and detailed physical specifications available externally

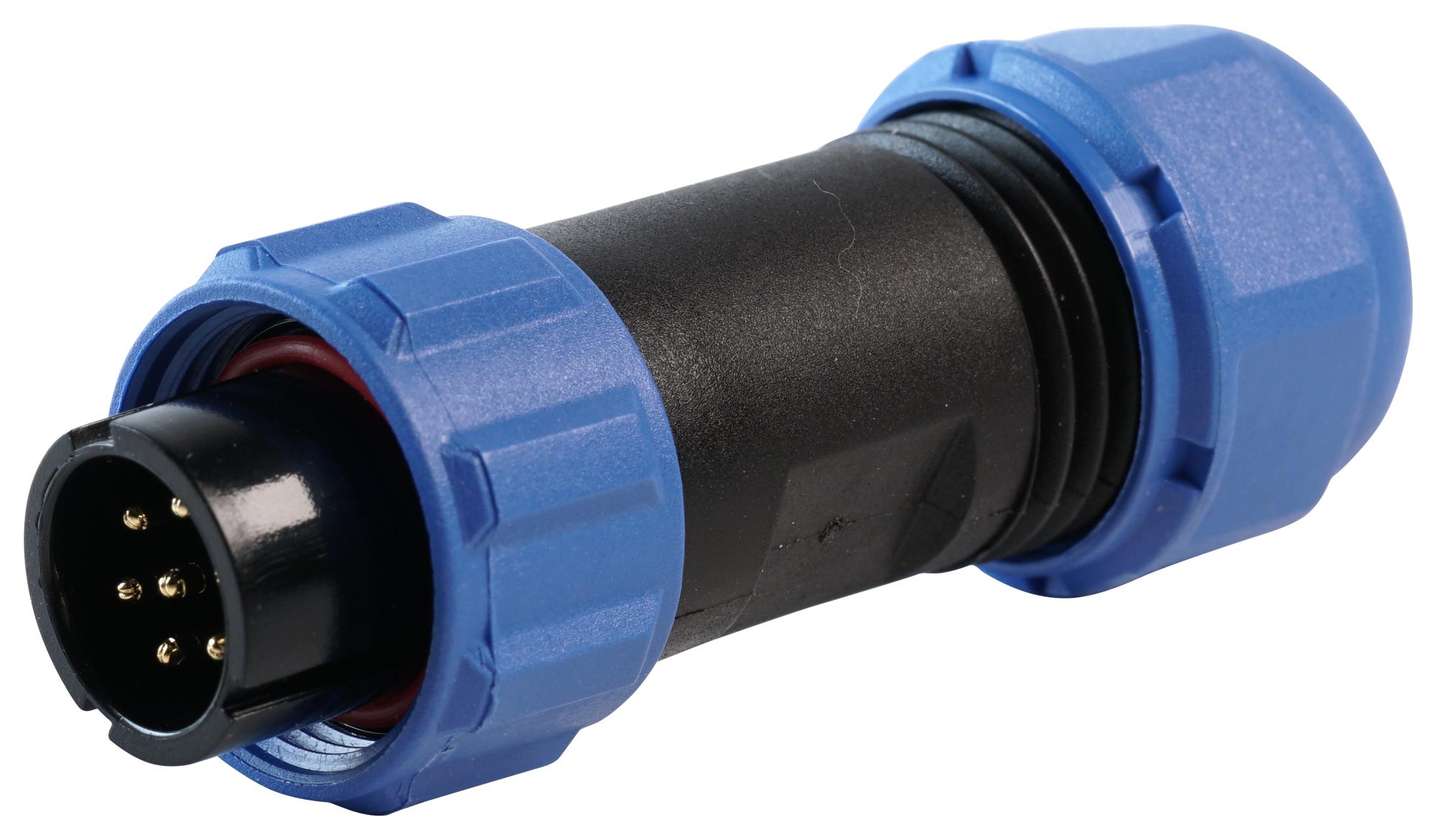

Buy the Buy Multicomp IP68 Circular Connector Part Number MP002509 Online
Secure your industrial and outdoor applications with the IP68 circular connector from Multicomp Pro. Featuring threaded couplings, weather sealing, and multiple configurations, this durable connector ensures reliable performance in harsh environments. Easy to install with solder termination, it supports a variety of pole options including 2, 3, 4, 5, and 7 poles, making it versatile for automation, medical, security, and measurement systems. Enhance your setup today with this high-quality, weatherproof connector designed to withstand extreme conditions and provide long-lasting durability.
Get Multicomp IP68 Circular Connector MP002509 today—designed for reliable waterproof connections in industrial and outdoor environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002509?
You can click on the BUY or RFQ button to purchase MP002509 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002509?
You can download the MP002509 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002509?
MULTICOMP-PRO
