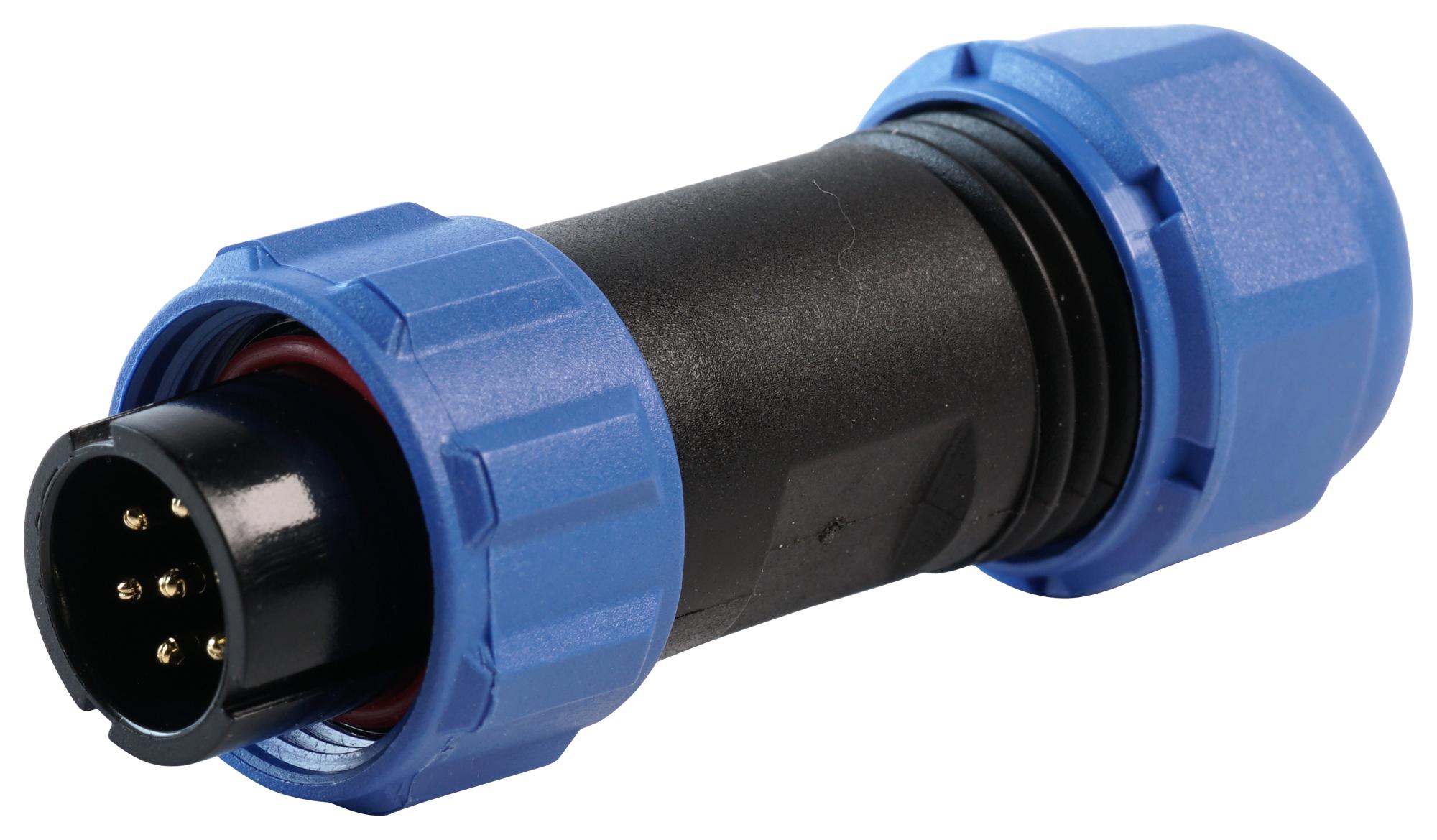

MULTICOMP-PRO MP002510 Waterproof Circular Connector
The MP-T13 IP68 series connectors are robust, weatherproof solutions with threaded coupling, solder termination, and a compact design suitable for outdoor and indoor applications. These connectors provide IP68-rated water and dust resistance, enabling reliable all-weather connections in automation, security, medical, and industrial settings. Available in panel mount, cable mount, and in-line configurations, they feature 2, 3, 4, 5, or 7 poles, with compatibility for 13mm panel cut-outs. Additional accessories like dust caps enhance sealing, making these connectors ideal for demanding environments requiring durability and high performance.
MULTICOMP-PRO MP002510 Waterproof Circular Connector Specifications:
- Material: Brass with gold plating
- Shell Material: PC (Polycarbonate), PPS insert housing, V-0 fire resistance
- Contact Material: Brass with gold plating
- Termination: Solder
- IP Rating: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Contact Diameter: 1.6 mm (2 Pole), 1 mm (3, 4, 5, 7 Pole)
- Rated Current: 13 A (2 Pole), 5 A (3, 4, 5, 7 Pole)
- Rated Voltage: 250 V AC (2, 3 Pole), 200 V AC (4, 5 Pole), 180 V AC (7 Pole)
- Test Voltage: 1500 V (1 min), 1000 V (others)
- Cable Outer Diameter Range: 4mm to 8mm
- Connection Housing: Threaded coupling
- Dimensions: Suitable for 13mm panel cut-out, specific dimensions vary by configuration
Buy the Buy Multicomp Pro IP68 Waterproof Connector Part Number MP002510 Online
Secure your industrial, automation, or outdoor projects with the durable and waterproof Circular Connectors. The MP002510 variant offers excellent sealing with IP68 rating, multiple pole options, and solder termination. These connectors are designed for high durability in challenging conditions, ensuring reliable data and power transmission. Easy to install with threaded coupling and cable compatibility, they are perfect for protecting sensitive electronics against dust and water ingress. Purchase online today for top-quality connectivity solutions that last.
Buy Multicomp Pro MP002510 now and experience unmatched reliability and performance in harsh environments with weatherproof, threaded connectors.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002510?
You can click on the BUY or RFQ button to purchase MP002510 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002510?
You can download the MP002510 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002510?
MULTICOMP-PRO
