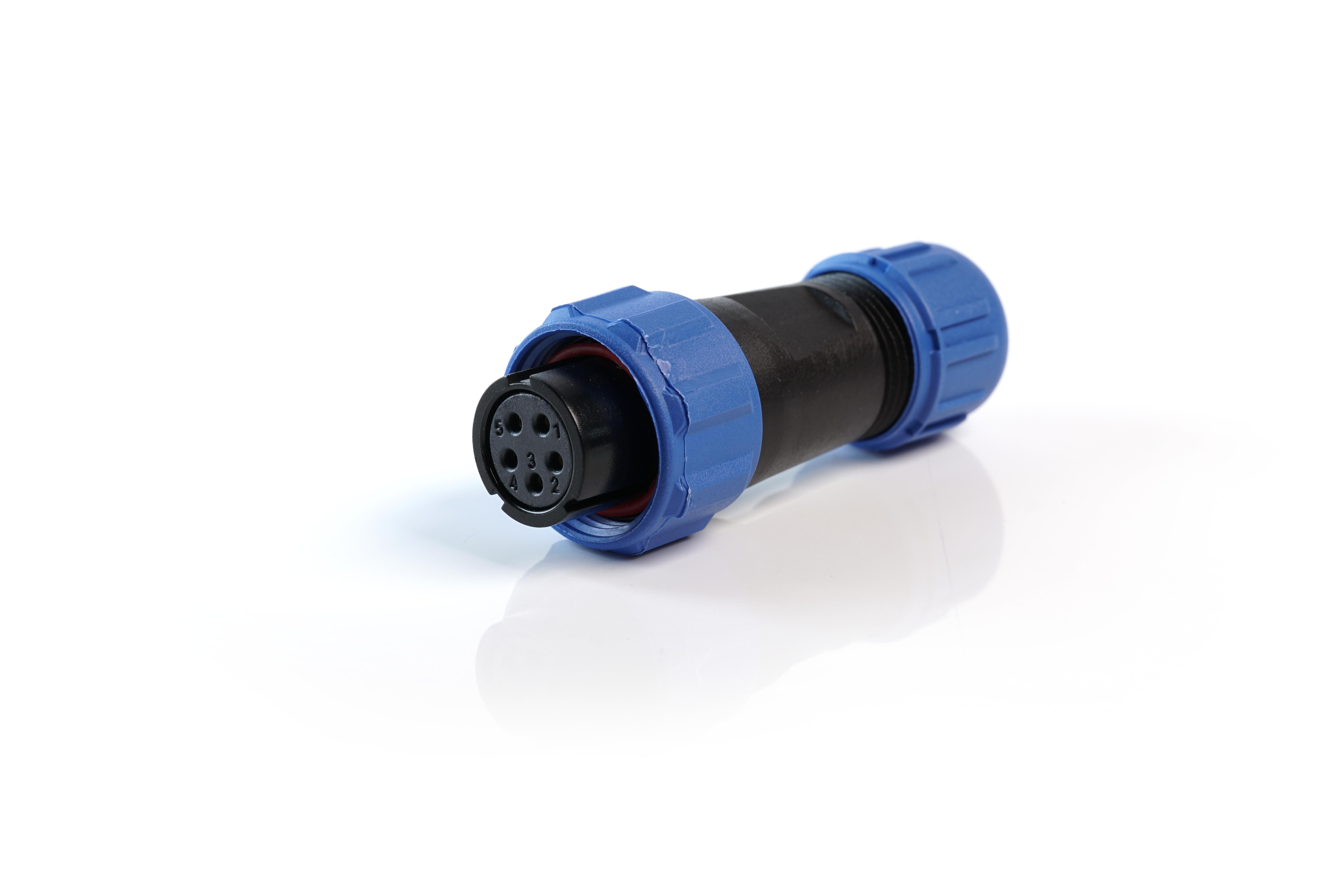

MULTICOMP PRO MP002520 IP68 Circular Connector
The MP-T13 IP68 series is a rugged range of connectors featuring threaded coupling and weather sealing, rated IP68 for protection against dust and water. These connectors are housed in a compact size and are available in panel mount, cable mount, and in-line cable mount configurations, allowing for cable-to-panel or cable-to-cable connections. They are suitable for both indoor and outdoor applications. The connectors fit a 13mm panel cut-out, have solder termination, and come in versions with 2, 3, 4, 5, and 7 poles. An IP68-rated cap is also available for additional sealing. Ideal for automation, control, medical, security, testing, and industrial automation.
MULTICOMP PRO MP002520 IP68 Circular Connector Specifications:
- Material: Shell: PC with V-0 fire resistance, Insert: PPS with Max. Temperature 260°C, Contact: Brass with gold plating
- Protection Class: IP68 rated against dust and water
- Coupling: Threaded
- Termination: Solder
- Number of Contacts: 2, 3, 4, 5, 7
- Contact Diameter: 1.6mm (2P), 1mm (3P & 4P), 1mm (5P & 7P)
- Rated Current: 13A (2P), 5A (3P, 4P, 5P, 7P)
- Rated Voltage: 250V (2P & 3P), 200V (4P), 180V (5P), 125V (7P)
- Test Voltage: 1500V (2P, 3P, 4P), 1000V (5P, 7P)
- Contact Resistance: 2.5mΩ (2P & 3P), 5mΩ (4P, 5P, 7P)
- Wire Size: 2/14 AWG (~2 mm²), 0.75/18 AWG (~0.75 mm²)
- Temperature Range: -40°C to +85°C
- Mating Cycles: 500
- Cable Outer Diameter Range: 4mm to 6.5mm / 5mm to 8mm
- Dimensions: Designed for 13mm panel cutout, with various connector sizes
Buy the Multicomp Series IP68 Circular Connectors: MP002520
Order the IP68 circular connector MP002520 online today to ensure your industrial and outdoor applications are protected from dust and water. These connectors provide a durable, waterproof solution with threaded coupling and solder termination, ideal for automation, process control, and rugged environments. Available in various configurations with up to 7 poles, they are designed for easy installation in panel or cable mounting setups. Secure your connection solutions today with quick and reliable online purchasing for fast delivery and unmatched quality.
Buy Multicomp IP68 circular connectors MP002520 now and experience unmatched reliability and performance in rugged environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002520?
You can click on the BUY or RFQ button to purchase MP002520 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002520?
You can download the MP002520 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002520?
MULTICOMP PRO
