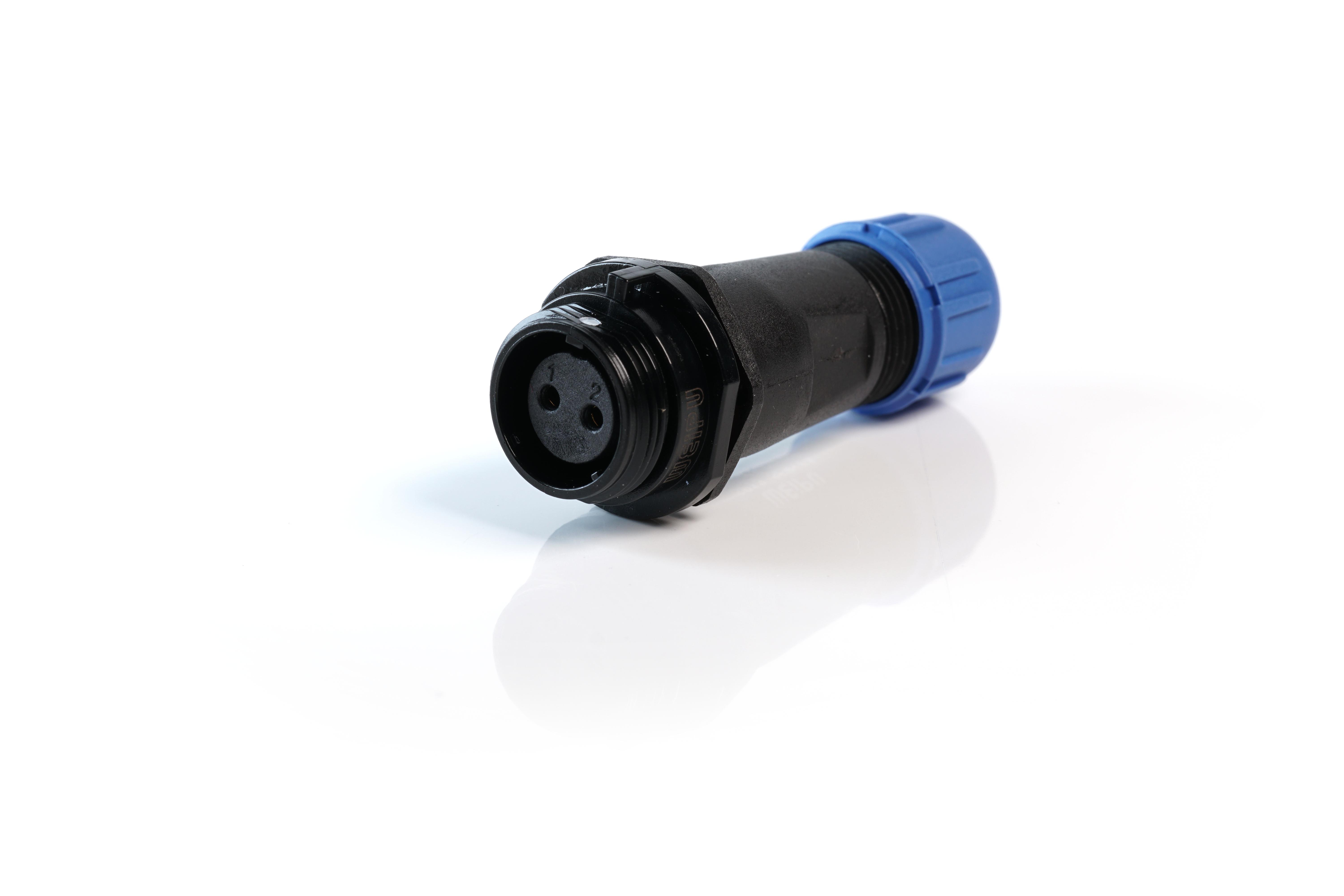

MULTICOMP PRO MP002525 IP68 Circular Connector
The MP-T13 IP68 series offers robust connectors with threaded coupling and weatherproof sealing, suitable for outdoor and indoor use in automation, security, and industrial applications. These connectors feature a compact design with a 13mm cut-out size, solder termination, and an IP68 rating for dust and water resistance. Available in panel, cable, and inline configurations with 2, 3, 4, 5, and 7 poles, they provide reliable connection solutions in demanding environments. An IP68 dust cap adds extra protection during storage or non-use, ensuring long-term durability and performance.
MULTICOMP PRO MP002525 IP68 Circular Connector Specifications:
- Material and Specifications Compliant
- Coupling: Threaded
- Shell Material: Reming Nat Nut, Back Shell, Compressing Nut
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder
- IP Rating: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MQ
- Contact Diameter: 1.6 mm, 1 mm, 1 mm
- Rated Current: 13 A, 5 A, 5 A
- Rated Voltage: 250 V, 250 V, 200 V, 180 V, 125 V
- Test Voltage: 1500 V, 1500 V, 1500 V, 1000 V, 1000 V
- Cable Outer Diameter Range: 4 mm to 6.5 mm / 5 mm to 8 mm
- Dimensions: Millimetres - suitable for 13mm cut-out, connector configurations vary by type
- Mating Cycle: 500
- Suitable for outdoor and industrial environments
Buy the Multicomp Series IP68 Connector: MP002525
Enhance your projects with the reliable and weatherproof IP68 circular connectors from the Multicomp Series. Designed with threaded coupling and solder termination, these connectors provide secure and durable connections for outdoor and industrial environments. Available in multiple configurations and pole counts, they feature a compact design with a 13mm cut-out size, ensuring easy installation and maintenance. Protect your devices with IP68 rated connectors and optional dust caps for added resilience, making them perfect for automation, security systems, and industrial automation tasks.
Order your Multicomp Series IP68 connector MP002525 today and ensure reliable, weatherproof connections for your industrial and outdoor projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002525?
You can click on the BUY or RFQ button to purchase MP002525 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002525?
You can download the MP002525 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002525?
MULTICOMP PRO
